AN30648 Oil Seal Fits John Deere 440 420 430 435 1010 AN32717 PS Shaft Lower

Name: AN30648 Oil Seal Fits John Deere 440 420 430 435 1010 AN32717 PS Shaft Lower
SKU: HIB10-0065_4
Price: 22.0 USD
Availability: InStock

AN30648 Oil Seal Fits John Deere 440 420 430 435 1010 AN32717 PS Shaft Lower

$22.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

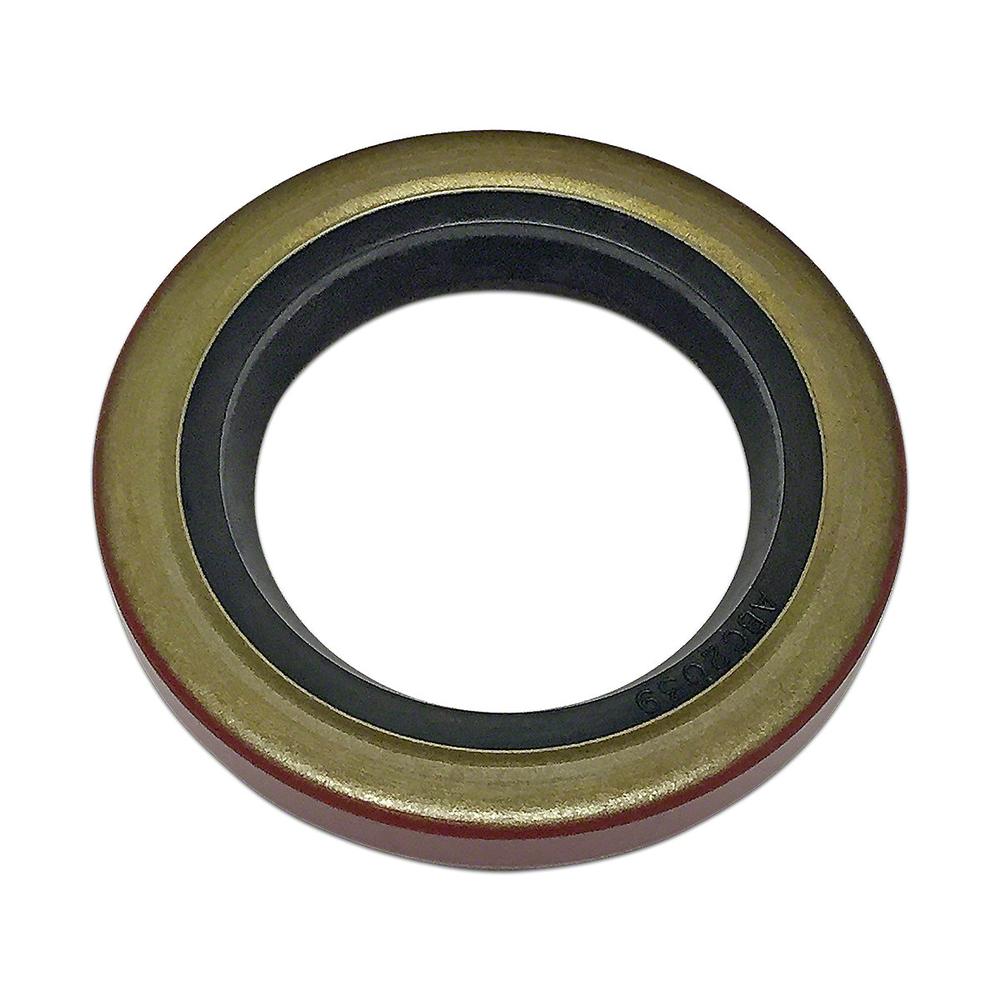

One (1) New Aftermarket Replacement Oil Seal

Fits John Deere Industrial Tractor Models:
440 (Used as: Outer PTO Seal, Differential Brake Pinion Shaft/Inner Bearing Housing Seal, Power Steering Pinion Shaft Lower Seal, Direction Reversor Seal)

Fits John Deere Tractor Models:
420 (Used as: Outer PTO Seal, Differential Brake Pinion Shaft/Inner Bearing Housing Seal, Power Steering Pinion Shaft Lower Seal, Direction Reversor Seal),
430 (Used as: Outer PTO Seal, Differential Brake Pinion Shaft/Inner Bearing Housing Seal, Power Steering Pinion Shaft Lower Seal, Power Steering Pinion Shaft Lower, Direction Reversor Seal),
435 (Used as: Outer PTO Seal, Differential Brake Pinion Shaft/Inner Bearing Housing Seal, Power Steering Pinion Shaft Lower Seal),
1010 (w/ Single Speed PTO Used as: Outer PTO Seal, Differential Brake Pinion Shaft/Inner Bearing Housing Seal, Power Steering Pinion Shaft Lower Seal)

Tech Info:
ID: 1.375"
OD: 2.130"
Width: 0.437"

Replaces Part Numbers: AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069

Models This Part Fits:

1850, 1052, 666, 1520, 4W305, 2640, 2650, 1133, 650, D15, 942, B, WD9, 830 3 cylinder, Super MD, WR9S, WDR9, 3150, 2440, MDV, Power Take-Off Systems, 1750, 1470, 1120, 945, 4-78, 830, 1550, 2130, 1830, W9, Super WD9, 7700, MC, 3040, 615, D14, 820 3 cylinder, 5440, 1480, Super MDV, 1130, 1020, 303, 2630, I9, 1530, 1555, 715, Super H, IB, CA, 2030, 8050, I60, 8070, M, 2040, 315, 1144, MI, 2035, H, 600, 1635, MT, 503, 8030, 9910, Hydro 86, 1840, 820, 2040S, ID9, 2135, 2140, 932, HV, 2020, 970, 1140, 920, Super M, 40, 7000, 8010, I600, 2-78, D17, 190XT, I40, 430, 175, Super HV, 3350, 5420, 403, 440, 2656, 435, 1030, Hydro 70, D10, C, 1600, Super WDR9, Super W9, 656, 2240, I400, 2250, 3140, D12, 200, 1641, 3050, 185, 4420, 1440, 2120, Wheel Hubs, 170, 4400, Braking Systems, 1950, 190, 320, Super MV, 1640, 930, 952, 420, D19, MV, 7580, 1010, 330, Lift Shaft Housings, 1032, 925, 940, 2850, 1042, I4, MD, 4W220, 7060, 1460, 935, 190XTIII, 544, WR9, 7045, 1630, 180, 7080, G550, H3, 2544, 2450

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437"

Reference Numbers:

43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 1K1590, K1590, CR13649, 450135, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810
