New PTO Seal Fits John Deere M MI 1020 MC MT 1630 AM253T AH14076 AL2094T AL56820

New PTO Seal Fits John Deere M MI 1020 MC MT 1630 AM253T AH14076 AL2094T AL56820

$22.00 CAD
$22.00 CAD
Sale Sold out
Shipping calculated at checkout.

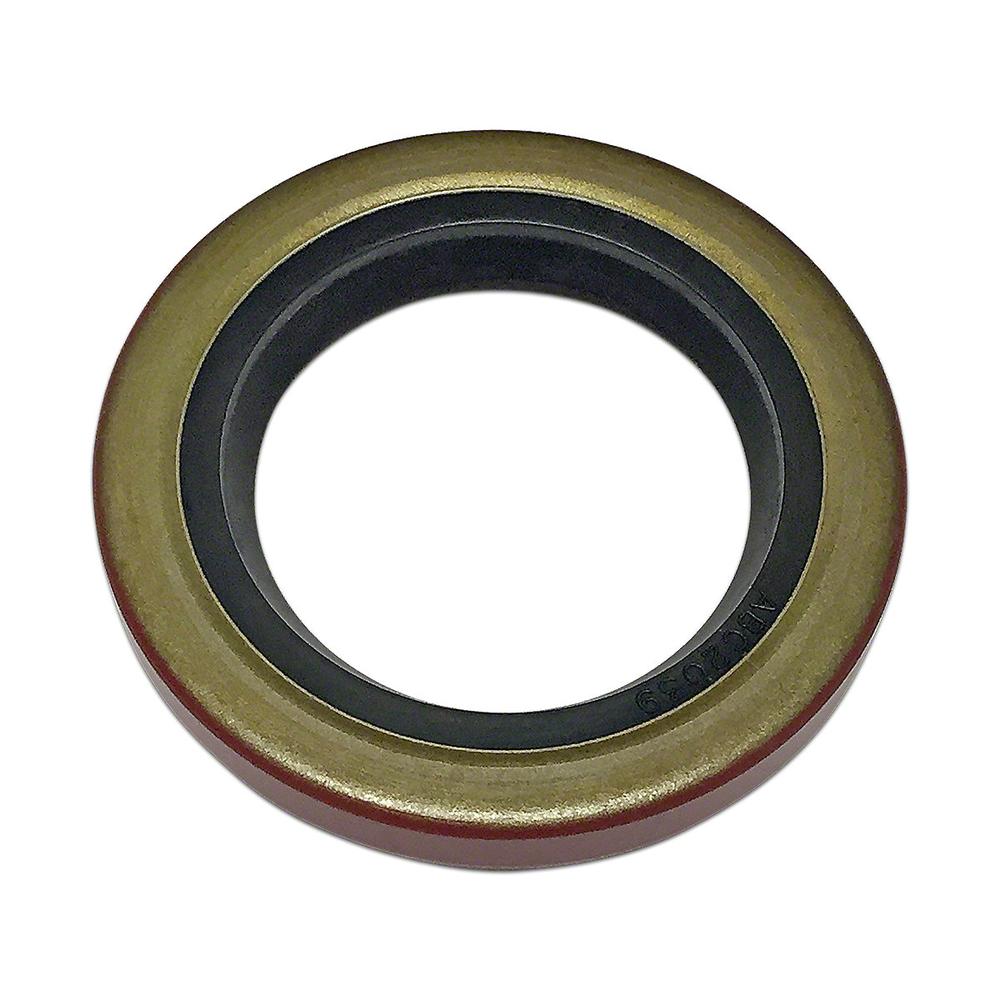

One (1) New Aftermarket Replacement Outer PTO Oil Seal


Fits John Deere Industrial Tractor Models:
MI (Used as an Outer PTO Seal),
4400 (Used as an Upper Final Drive Outer Pinion Shaft Seal)

Fits John Deere Tractor Models:
1020 (w/ Single Speed PTO as an Outer PTO Seal),
M (Used as an Outer PTO Seal),
MC (Used as an Outer PTO Seal),
MT (Used as an Outer PTO Seal),
320 (Used as an Outer PTO Seal & Differential Brake Pinion Shaft (Inner Bearing Housing Seal),
330 (Used as an Outer PTO Seal & Differential Brake Pinion Shaft (Inner Bearing Housing Seal),
40 (Used as an Outer PTO Seal & Differential Brake Pinion Shaft (Inner Bearing Housing Seal),
820 (3-Cylinder, w/ Single Speed PTO as an Outer PTO Seal),
830 (3-Cylinder, w/ Single Speed PTO as an Outer PTO Seal),
970 (As an Upper Final Drive Outer Pinion Shaft Seal),
1030 (w/ Single Speed PTO as an Outer PTO Seal),
1120 (w/ Single Speed PTO as an Outer PTO Seal),
1520 (w/ Single Speed PTO as an Outer PTO Seal),
1530 (w/ Single Speed PTO as an Outer PTO Seal),
1630 (w/ Single Speed PTO as an Outer PTO Seal),
2020 (w/ Single Speed PTO as an Outer PTO Seal),
2030 (w/ Single Speed PTO as an Outer PTO Seal),
2040 (w/ Single Speed PTO as an Outer PTO Seal),
2120 (w/ Single Speed PTO as an Outer PTO Seal),
2130 (w/ Single Speed PTO as an Outer PTO Seal),
2240 (w/ Single Speed PTO as an Outer PTO Seal),
2440 (w/ Single Speed PTO as an Outer PTO Seal),
2630 (w/ Single Speed PTO as an Outer PTO Seal),
2640 (w/ Single Speed PTO as an Outer PTO Seal)

Fits John Deere Crawler Models:
40 (Used as an Outer PTO Seal),
420 (Used as an Outer PTO Seal and as a Direction Reversor Seal),
430 (Used as an Outer PTO Seal and as a Direction Reversor Seal)

Tech Info:
Inside Diameter: 1.375"
Outside Diameter: 2.130"
Width: 0.437"

Replaces Part Numbers: AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069

Models This Part Fits:

1850, 1052, 666, 1520, 4W305, 2640, 2650, 1133, 650, D15, 942, B, WD9, 830 3 cylinder, Super MD, WR9S, WDR9, 3150, 2440, MDV, Power Take-Off Systems, 1750, 1470, 1120, 945, 4-78, 830, 1550, 2130, 1830, W9, Super WD9, 7700, MC, 3040, 615, D14, 820 3 cylinder, 5440, 1480, Super MDV, 1130, 1020, 303, 2630, I9, 1530, 1555, 715, Super H, IB, CA, 2030, 8050, I60, 8070, M, 2040, 315, 1144, MI, 2035, H, 600, 1635, MT, 503, 8030, 9910, Hydro 86, 1840, 820, 2040S, ID9, 2135, 2140, 932, HV, 2020, 970, 1140, 920, Super M, 40, 7000, 8010, I600, 2-78, D17, 190XT, I40, 430, 175, Super HV, 3350, 5420, 403, 440, 2656, 435, 1030, Hydro 70, D10, C, 1600, Super WDR9, Super W9, 656, 2240, I400, 2250, 3140, D12, 200, 1641, 3050, 185, 4420, 1440, 2120, Wheel Hubs, 170, 4400, Braking Systems, 1950, 190, 320, Super MV, 1640, 930, 952, 420, D19, MV, 7580, 1010, 330, Lift Shaft Housings, 1032, 925, 940, 2850, 1042, I4, MD, 4W220, 7060, 1460, 935, 190XTIII, 544, WR9, 7045, 1630, 180, 7080, G550, H3, 2544, 2450

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437"

Reference Numbers:

43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 1K1590, K1590, CR13649, 450135, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Group:

Bearings, Bushings, Seals
View More: Bearings, Bushings, Seals Replacement Parts

Product Sub Group:

Bearings, Bushings, Seals
