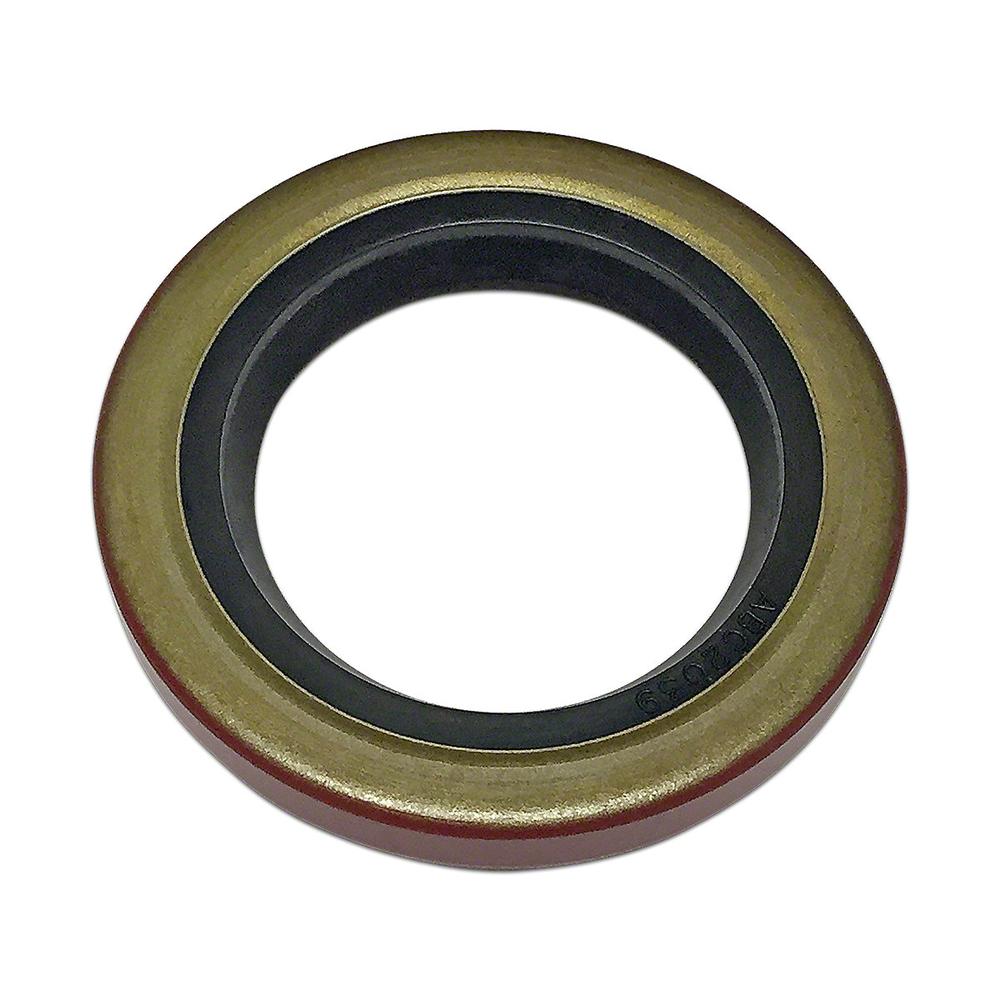

Oil Seal Fits John Deere 5420 5440 9910 952 945 942 935 932 925 7700 AP24021

Name: Oil Seal Fits John Deere 5420 5440 9910 952 945 942 935 932 925 7700 AP24021
SKU: HIB10-0065_3
Price: 22.0 USD
Availability: InStock

Oil Seal Fits John Deere 5420 5440 9910 952 945 942 935 932 925 7700 AP24021

$22.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Replacement Oil Seal

Fits John Deere Combine Models:
1042, 1032, 1052, 1133, 1144, 4400, 4420, 7700, 925, 932, 935, 942, 945, 952

Fits John Deere Cotton Picker Models:
9910

Fits John Deere Forage Harvester Models:
5420, 5440

Oil Seal Fitment Notes:
Transmission Pinion Shaft Seal - 1042, 1032, 1052, 1133, 1144, 925, 932, 935, 942, 945, 952, 9910
Drive Wheel Clutch Housing Seal - 4400, 4420
Upper Final Drive Outer Pinion Shaft Seal - 4400, 4420
Upper Final Drive Outer Pinion Shaft Seal - 7700, 5420, 5440

Tech Info:
ID: 1.375"
OD: 2.130"
Width: 0.437"

Replaces Part Numbers: AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069

Models This Part Fits:

1850, 1052, 666, 1520, 4W305, 2640, 2650, 1133, 650, D15, 942, B, WD9, 830 3 cylinder, Super MD, WR9S, WDR9, 3150, 2440, MDV, Power Take-Off Systems, 1750, 1470, 1120, 945, 4-78, 830, 1550, 2130, 1830, W9, Super WD9, 7700, MC, 3040, 615, D14, 820 3 cylinder, 5440, 1480, Super MDV, 1130, 1020, 303, 2630, I9, 1530, 1555, 715, Super H, IB, CA, 2030, 8050, I60, 8070, M, 2040, 315, 1144, MI, 2035, H, 600, 1635, MT, 503, 8030, 9910, Hydro 86, 1840, 820, 2040S, ID9, 2135, 2140, 932, HV, 2020, 970, 1140, 920, Super M, 40, 7000, 8010, I600, 2-78, D17, 190XT, I40, 430, 175, Super HV, 3350, 5420, 403, 440, 2656, 435, 1030, Hydro 70, D10, C, 1600, Super WDR9, Super W9, 656, 2240, I400, 2250, 3140, D12, 200, 1641, 3050, 185, 4420, 1440, 2120, Wheel Hubs, 170, 4400, Braking Systems, 1950, 190, 320, Super MV, 1640, 930, 952, 420, D19, MV, 7580, 1010, 330, Lift Shaft Housings, 1032, 925, 940, 2850, 1042, I4, MD, 4W220, 7060, 1460, 935, 190XTIII, 544, WR9, 7045, 1630, 180, 7080, G550, H3, 2544, 2450

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437"

Reference Numbers:

43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 1K1590, K1590, CR13649, 450135, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810
