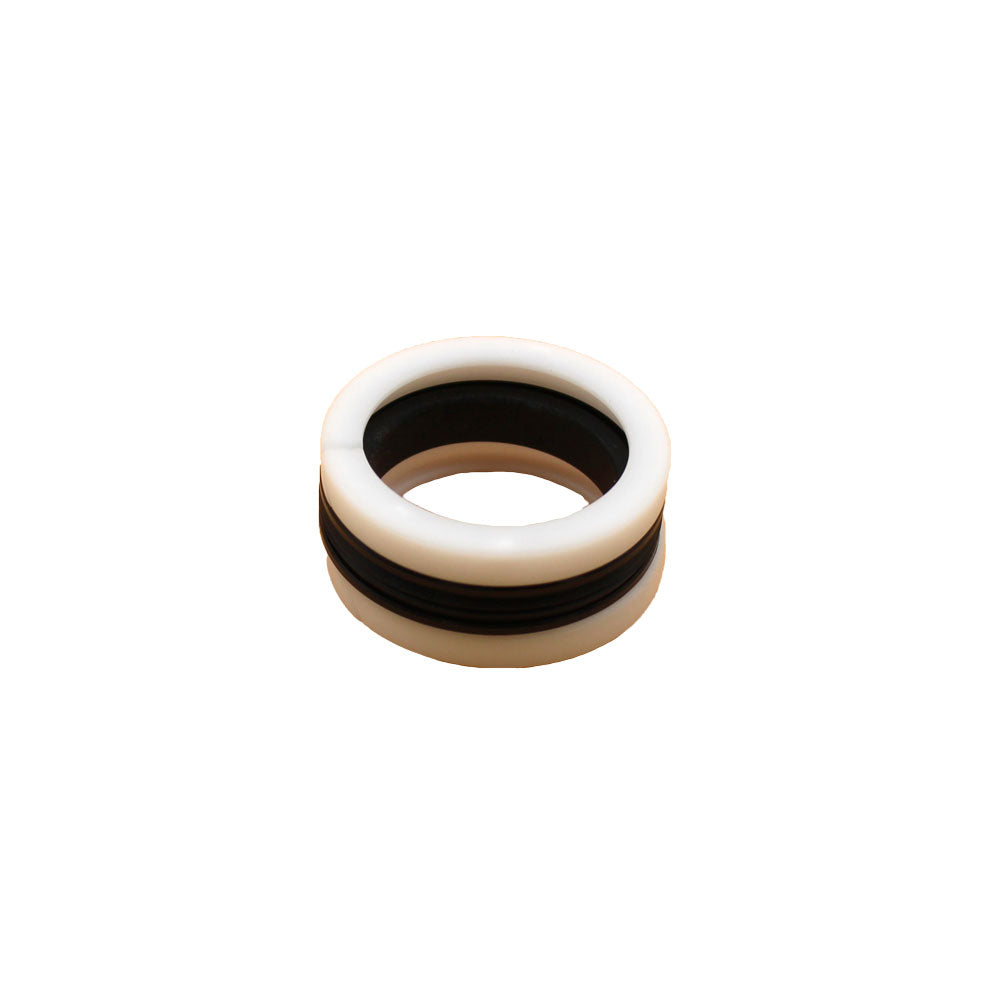

PSA-65-1250 STANDARD PISTON SEALS

Name: PSA-65-1250 STANDARD PISTON SEALS
SKU: PSA-65-1250-HER
Price: 26.0 USD
Availability: InStock

PSA-65-1250 STANDARD PISTON SEALS

$26.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket STANDARD PISTON SEALS

Tech Info:
-A Nom ID: 15/16
-SKU: PSA-65-1250
-Weight: 0.01027000 lbs
-A Nom ID: 15/16
-B Nom OD: 1-1/4
-C Nom Height: 11/32
-H Groove Diameter: .937
-D Groove Width: .343
-MATERIAL: NITRILE SEAL POLYACETAL ANTI-EXTRUSION RING
-TEMPERATURE RANGE: -22° to +212° F
-PRESSURE RANGE: 0 to 3,000 PSI
-MAXIMUM SPEED 1.5 Ft/Sec: .
-PART NUMBER: (Prefix)(Type of Seal) - (Size)
-D1 Bearing Groove Width: .125
-I Piston Diameter: 1.187

Additional Information:

Nom ID - 0.9375 Nom OD - 1.25 Nom Height - 0.34375 Groove Diameter - 0.937 Groove Width - 0.343 Bearing Groove Width - 0.125 Piston Diameter - 1.187 Bore Diameter - 1.25 Bearing Groove Diameter - 1.079
