PS1400-34 Piston Seal 15% Glass Filled Made With Teflon Material 1.733 X 2.125
PS1400-34 Piston Seal 15% Glass Filled Made With Teflon Material 1.733 X 2.125
Regular price
$25.00 CAD
Regular price
Sale price
$25.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

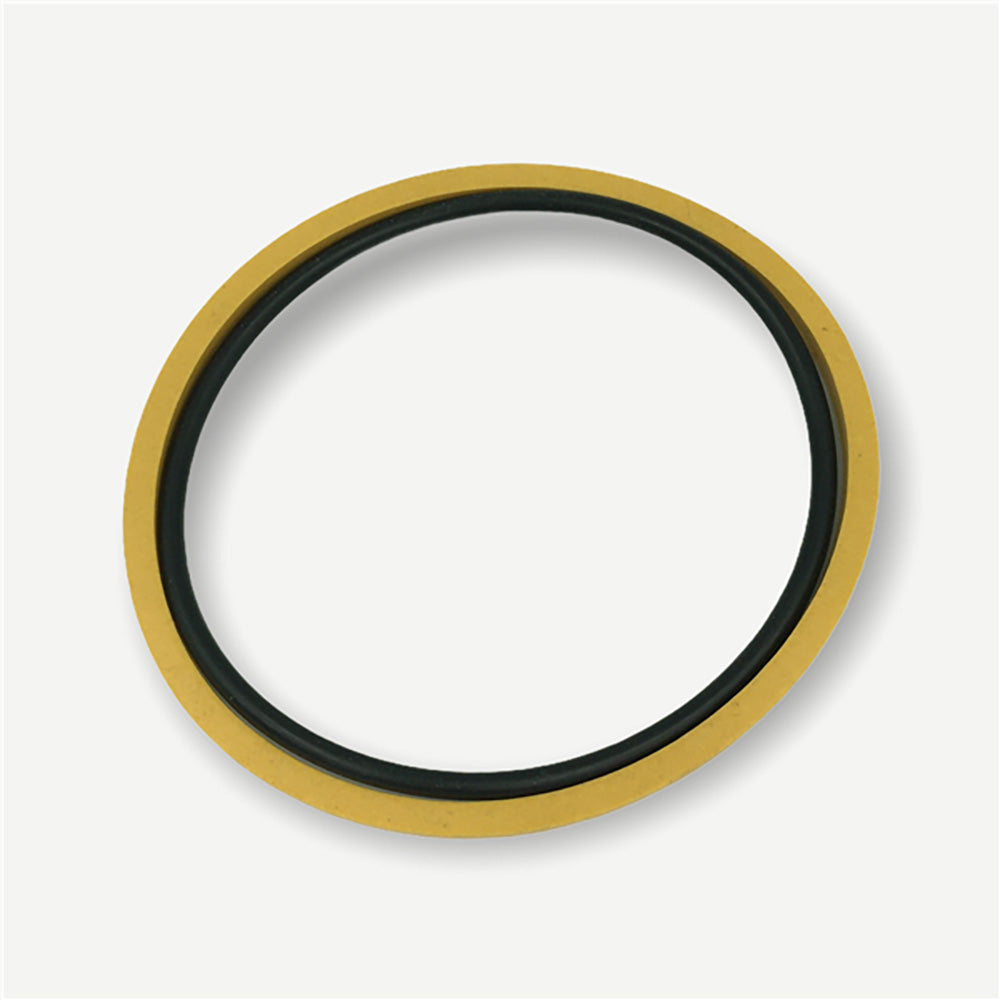

One New Aftermarket Replacement Piston Seal with an ID 1.733 X OD 2.125 X Height 0.115
Tech Information:
Inner Diameter: 1.733"
Outer Diameter: 2.125"
Height: 0.115"
Material: 15% Glass Filled PTFE Seal Rubber Energizer
Temperature Range: -40 F to +220 F
Pressure Range: 0 to 5,000 Psi
Speed: 12Ft/Sec.
Part Number: (Piston Seal)(Type of Seal) - (Size)
Product: PS1400-34
Weight: 0.01190000 lbs.
A Nom ID: 1.733"
B Nom OD: 2-1/8"
C Nom Height: .115"
H Groove Diameter: 1.733"
D Groove Width: .129"
Bore: 2.125"
C Width: .115"
I Piston Diameter: 2.121"
CS1 Ring Cross Section: .115"
Replaces Part Numbers: PS1400-34
