Pressure Plate Assembly Fits Massey Ferguson 491 492 593 596 2680 039210T1
Pressure Plate Assembly Fits Massey Ferguson 491 492 593 596 2680 039210T1
Couldn't load pickup availability

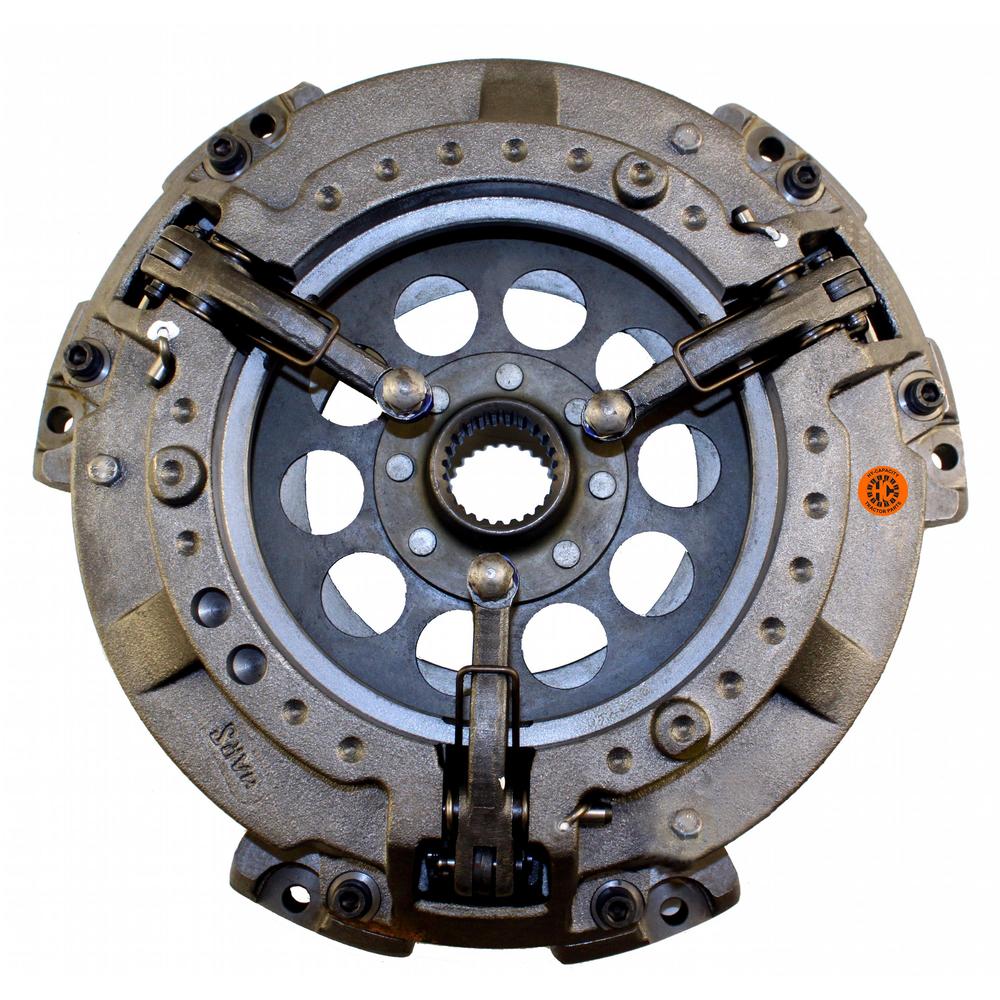

One New Aftermarket Replacement 13" Split Torque Pressure Plate Assembly Fits Massey Ferguson and Challenger Tractors
This aftermarket replacement pressure plate assembly is a direct replacement for the OEM 039210T1 unit used in the split torque clutch system on Fits Massey Ferguson and Challenger tractors. The pressure plate engages and disengages the clutch disc against the flywheel to transfer engine power to the drivetrain. Featuring a single-stage design with 12 coil springs and 3 levers, it is built to the precise dimensional specifications required for a correct fit in these applications.
Specifications
- Type: Split Torque Clutch, Single Stage
- Size: 13"
- Hub Size: 1-5/8"
- Spline Count: 25
- PPA Levers: 3
- PPA Springs: 12 Coil Springs
- Flywheel Step: 0.162"
Compatible Models
Fits Massey Ferguson Tractors: 491, 492, 593, 596, 630, 2670, 2680, 2685, 5300, 5310, 5320, 5335, 5340, 5355, 5360, 5365, WT590
Challenger (AGCO) Tractors: MT334, MT354, MT364, MT434, MT444, MT454, MT464, MT476, WT590
Replaces Part Number(s):
039210T1, 039210T1-A, M039210T1N, 133-0045-10
New aftermarket replacement part - not remanufactured, not used.
