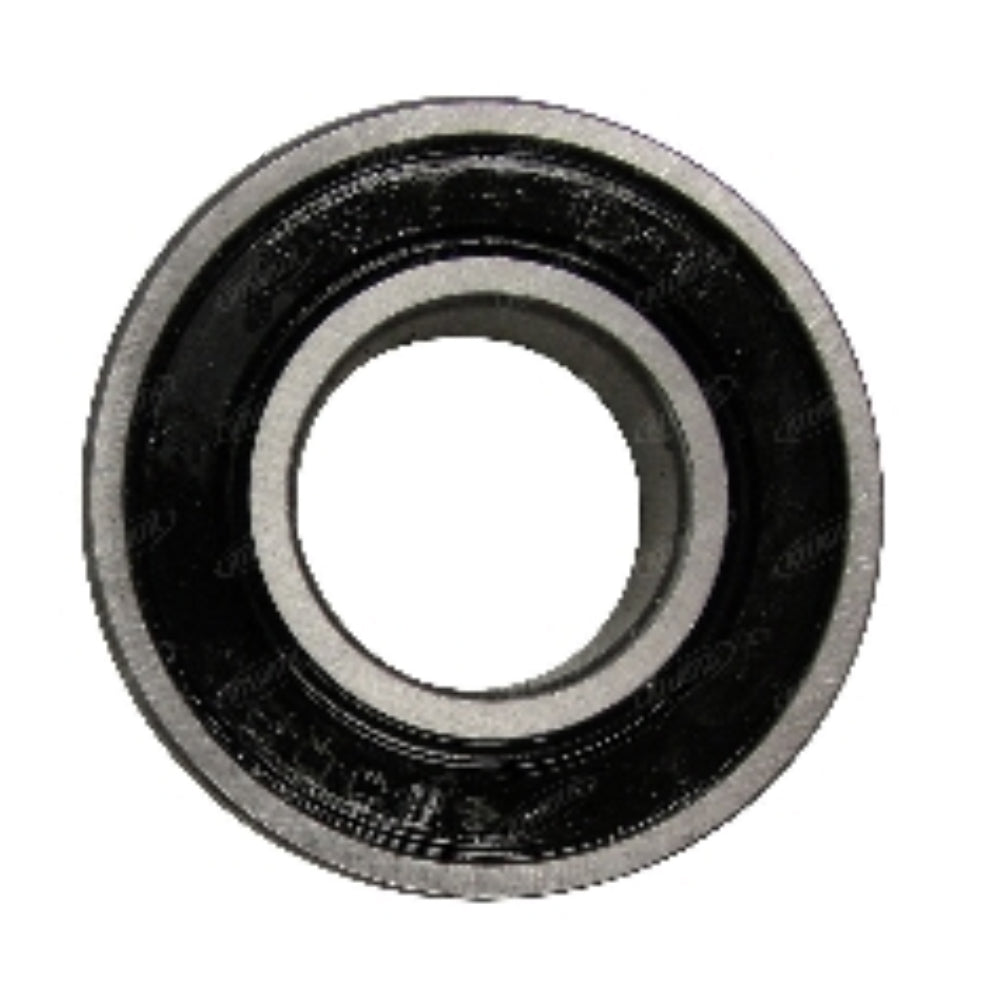

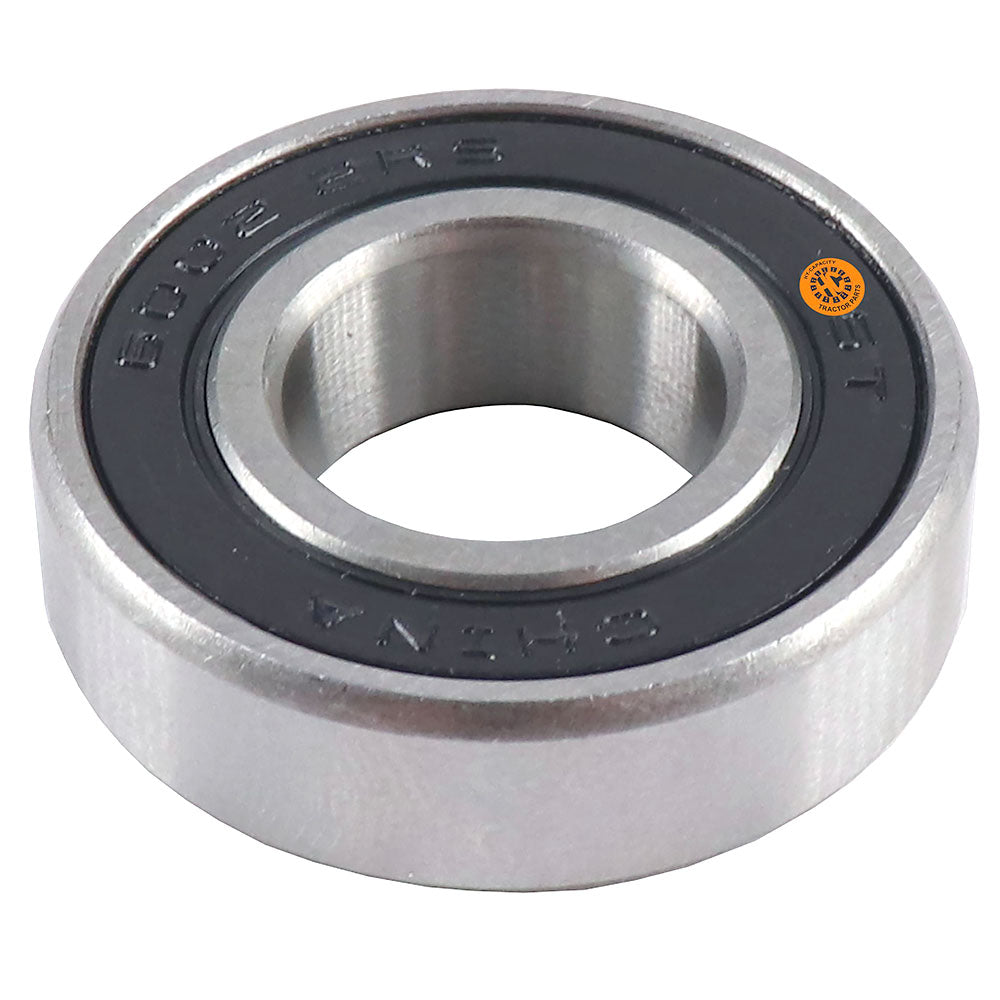

Pilot Bearing Fits Case/International Tractor 1120 Others-1273355C91

Name: Pilot Bearing Fits Case/International Tractor 1120 Others-1273355C91
SKU: 1273355C91
Price: 19.0 USD
Availability: InStock

Pilot Bearing Fits Case/International Tractor 1120 Others-1273355C91

$19.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Pilot Bearing for Case IH, International, Massey Ferguson, and Multi-Brand Compact Tractors

This clutch pilot bearing is installed in the crankshaft end to support and align the transmission input shaft during clutch engagement and disengagement. It is a direct-fit replacement for a wide range of compact and utility tractors across multiple brands, including Case IH (Case/International), Massey Ferguson, AGCO, Kubota, Hinomoto, Mitsubishi, Kioti, Mahindra, Deutz, Farmtrac, Allis Chalmers, White, Challenger, Cub Cadet, LS, and Montana. The OEM part number referenced in the title, 1273355C91, is a Case/International cross-reference for this bearing application.

Specifications

Inner Diameter (ID): 0.590"
Outer Diameter (OD): 1.260"
Width: 0.354"
Bearing Type: Sealed Ball Bearing (6002-RS equivalent)

Compatible Models

Massey Ferguson: 1010 (2WD sn 10906 and above, 4WD sn 40824 and above), 1020, 1030, 1035 (Double Clutch), 1120, 1205, 1210, 1215, 1220, 1230, 1240, 1250, 1260, 1417, 1428V, 1429, 1433, 1433V, 1440, 1440V, 1523, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1635, 1643, 1648, 1652, 1655, 1736, 1740, 1742, 1747, 1749, 1754, 2015, 2216, 2740, 2816, 3016, 3240, 3616, 5015, 5215, 5220, 5230, 7000, 7192, 7194, 7195, 7200, 7205, 7232, 7234, 7260, 7265, 7272, 7274, 7300, 7305, 7360, MT250, MT255, MT255B, MT265, MT265B, MT275, MT275B, MT285, MT285B, MT295B, MT300, MT300D, MT2001, MT2201, MT2301, MT2501

Case IH / International: 234, 235, 244, 245, 254, 255, 265, 270, 275, 320, 1030, 1030L

AGCO: ST28A, ST30, ST30X (8-1/2" Dual Stage Clutch; excludes hydrostatic models), ST33A, ST34A (w/ Independent PTO and Synchro Shuttle Transmission), ST35, ST35X, ST40, ST40X, ST41A (w/ Independent PTO and Synchro Shuttle Transmission), ST47A (excludes hydrostatic models), ST52A (excludes hydrostatic models)

Kubota: L185DT, L185F, L225, L225DT, L235, L245DT, L245F, L245H, L260P, L275, L285P, L285WP, L295DT, L295F, L305DT, L305F, L345, L345DT, L2050DT, L2050F, L2250DT, L2250F, L2350DT, L2350F, L2500DT, L2500F, L2501D, L2501DT, L2501F, L2501H, L2501HST, L2502DT, L2502F, L2502HST, L2550DT, L2550DTGST, L2550F, L2550TOW, L2600DT, L2600F, L2650DT, L2650DTGST, L2650F, L2800DT, L2800DTHST, L2800F, L2850DT, L2850DTGST, L2850F, L2950DT, L2950DTGST, L2950F, L3000DT, L3000F, L3200DT, L3200F, L3200H, L3250DT, L3250F, L3300DT (see L3301 series), L3301DT, L3301F, L3301H, L3301HST, L3350DT, L3400DT, L3400DTHST, L3400F, L3450DT, L3450DTGST, L3450F, L3650DT, L3650DTGST, L3650F, L3700SU, L3800DT, L3800F, L3800H, L3900, L3901DT, L3901F, L3901H, L3901HST, L3902, L3902DT, L3902H, L3902HST, L4350DT, LB2214, LK3054, L35

Hinomoto: E23, E230, E280, E1804, E2002, E2004, E2302, E2304, E2804

Kioti: CK25, D2000, D2050, D2300, D2350, D2500, D2650, D3250, S3010

Mitsubishi: MT250, MT265, MT275, MT285 (see Massey Ferguson MT series above for overlap models)

Montana: 3016, LB2214 (see also Kubota overlap models)

White: 2-40 Field Boss (16 Field Boss noted in catalog)

Allis Chalmers, Challenger, Cub Cadet, Deutz, Farmtrac, LS, Mahindra: See compatible models list. Verify fitment by part number match before ordering.

Note: The Massey Ferguson 1010 has serial number restrictions: 2WD sn 10906 and above, 4WD sn 40824 and above. Several AGCO ST-series models exclude hydrostatic transmission variants. Verify clutch type and transmission configuration before ordering.

Replaces Part Number(s):

1273355C91, 3435646M1, 3708600M1, 3756038M1, 3283513M1, 3756038M1, 6243123M1, 1440564X1, 08121-06002, 1-08121-06002, 812106002, 6002-RS, 72100719, 72103151, 7500560024, H830655, MD002613

Aftermarket Interchange Numbers

Hy-Capacity 830655; equivalent to standard 6002-RS sealed ball bearing (0.590" ID x 1.260" OD x 0.354" W)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1250, 1030, 254, 255, L3250F, 7272, 1742, 1652, L3901HST, L2050DT, 1433V, 1532, 1747, L3901H, L4350DT, MT285, D2350, L3450DT, D2300, L3800DT, D2650, L285P, L3400F, L2501D, L235, 7205, L260P, L2501DT, L3200DT, L3800F, MT265B, L2800F, E2004, LK3054, L3901DT, 1547, 7194, 1215, 275, 7234, 1754, E2002, ST33A, L2350DT, ST52A, 1540, L3200H, L3350DT, 5215, 2216, 1417, 1526, D2500, 2816, L3301HST, L2350F, 320, L3902DT, 7000, 7195, L2050F, L3650F, L3200F, 1120, MT250, L2600DT, L3400DTHST, L2550DTGST, 1010, 1533, MT285B, L3902HST, 7265, 1440, 244, 5220, L3700SU, 1531, MT265, L2500DT, MT300D, ST41A, L2950F, 7260, MT2301, 1440V, E230, L2600F, 1429, 3616, L305F, L2502HST, L3250DT, L2850DT, 1648, ST35, L3450DTGST, ST28A, L3450F, L35, L2250DT, ST35X, L275, 1655, E280, 1220, L295F, 16 Field Boss, 3240, L305DT, L2501F, L185DT, 1035, L3301H, 1260, 7360, 7232, 1635, E23, D3250, ST40, 3016, MT2501, 2740, L2850DTGST, 7200, 1736, E2302, L2950DT, L3902H, 270, 7274, L3902, 2015, MT255, MT255B, 7300, E2304, L3650DTGST, L2550DT, E2804, 1210, L2650F, D2050, L245F, MT295B, L2501H, MT275, L2950DTGST, 1749, L3301DT, L2250F, 1230, MT300, 1433, L2502F, L225, L2501HST, L3400DT, L2502DT, L245H, L2800DTHST, L3000DT, ST47A, 235, L245DT, 5230, CK25, 1428V, L345DT, S3010, L225DT, L3901F, D2000, 1643, 1528, ST40X, ST30X, 1240, 1552, 5015, L3650DT, L2650DT, L2800DT, L345, 234, L3000F, MT2001, 1205, E1804, 1020, 1529, L185F, ST30, L3800H, 1740, MT275B, L2850F, MT2201, L2500F, L2650DTGST, 245, 7192, 265, L285WP, L295DT, LB2214, 1030L, L2550TOW, 7305, L2550F, L3301F, ST34A

Additional Information:

Inner Diameter: 0.590" Inner Diameter: Range 0.450" - 0.749" Outer Diameter: 1.260" Width: 0.354"

Reference Numbers:

08121-06002, 1440564X1, 3283513M1, 3435646M1, 3708600M1, 3756038M1, 6002-RS, 6243123M1, 72100719, 72103151, 7500560024, 812106002, H830655, MD002613, 1-08121-06002, 3708600M1, 3756038M1
