P502024 Filter Fits Donaldson Models

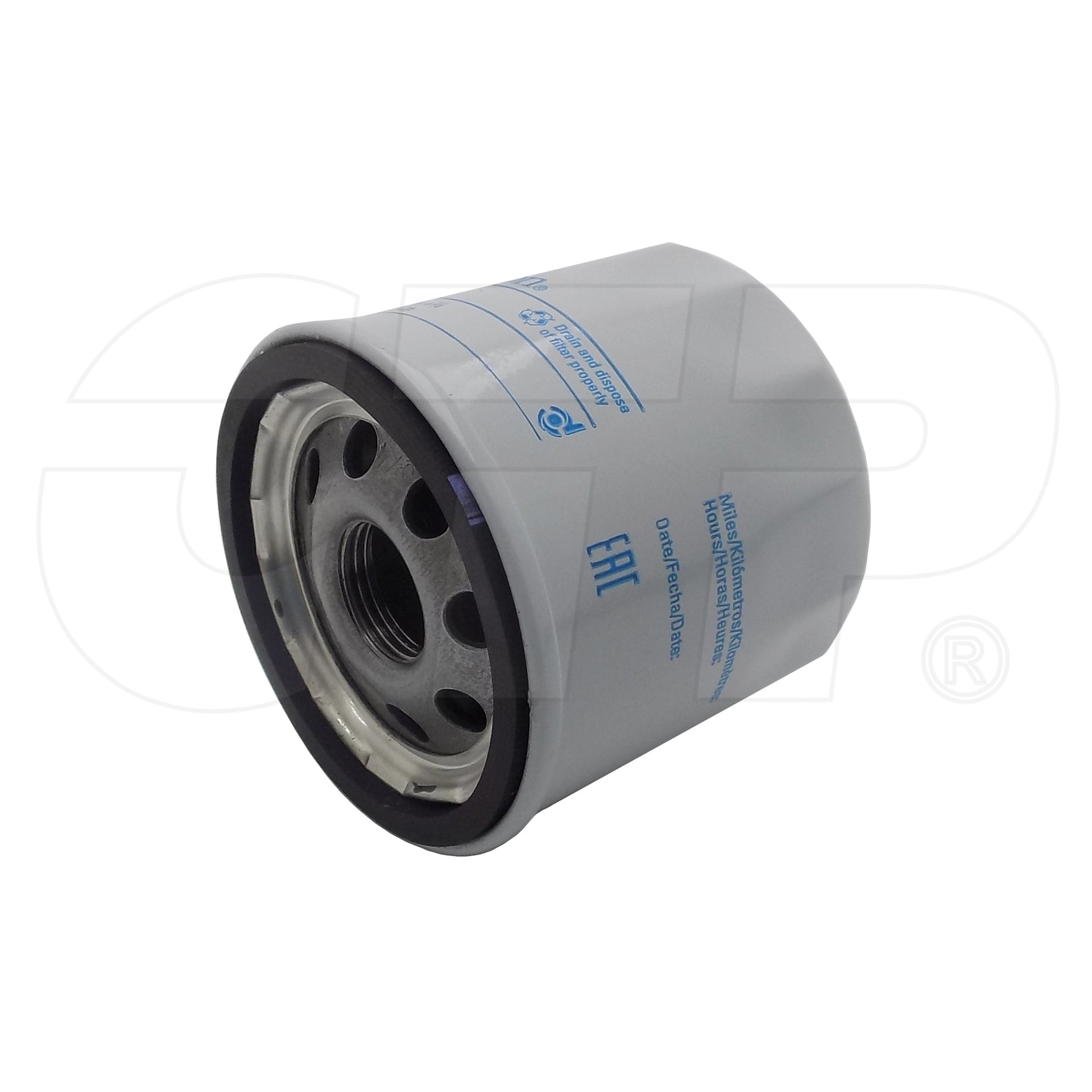

One New Aftermarket Replacement Lube Filter (Spin-On, Full Flow) - Replaces Donaldson P502024

This spin-on full-flow engine lube filter is a direct aftermarket replacement for Donaldson part number P502024. It features cellulose filter media, an integrated anti-drainback valve to prevent oil drain-back at shutdown, and a bypass valve to maintain oil flow if the filter becomes restricted. Compatible with a wide range of small engines found in lawn and garden tractors, construction equipment, and agricultural machinery powered by Kawasaki and Briggs & Stratton engines, among others. Commonly specified for John Deere lawn tractors including the D100 series.

Specifications

• Style: Spin-On, Full Flow
• Outer Diameter: 2.68 in. (68 mm)
• Length: 2.56 in. (65 mm)
• Thread Size: 3/4-16
• Gasket OD: 2.56 in. (65 mm)
• Gasket ID: 2.20 in. (56 mm)
• Media Type: Cellulose
• Efficiency: 50% at 20 Micron (JIS D 1611)
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 12 PSI (0.8 Bar)
• Bypass Valve Setting HR: 15 PSI (1 Bar)

Compatible Models

John Deere: D100 series lawn tractors and other models specifying John Deere AM107423

Kawasaki: Small engines specifying Kawasaki 49065-2078

Allis Chalmers: Various models (cross-reference Allis Chalmers 1007973, 256983, 260309, 570240)

Briggs & Stratton: Engines specifying Briggs & Stratton 492932 or 5410502

Replaces Part Number(s):

Donaldson P502024, John Deere AM107423, Kawasaki 49065-2078, Baldwin B7165, Allis Chalmers 1007973, Allis Chalmers 256983, Allis Chalmers 260309, Allis Chalmers 570240, Briggs & Stratton 492932, Briggs & Stratton 5410502, AGCO 492932, AGCO 258541M91, AC Delco PF2127, AC Delco PF2128, Carquest 84035, Carquest 85065, Bosch 2006H, Champ PH2840

New aftermarket replacement part - not remanufactured, not used.
