P170595 Hydraulic Filter Fits Donaldson Models

One New Aftermarket Replacement Hydraulic Filter for Donaldson Filtration Systems

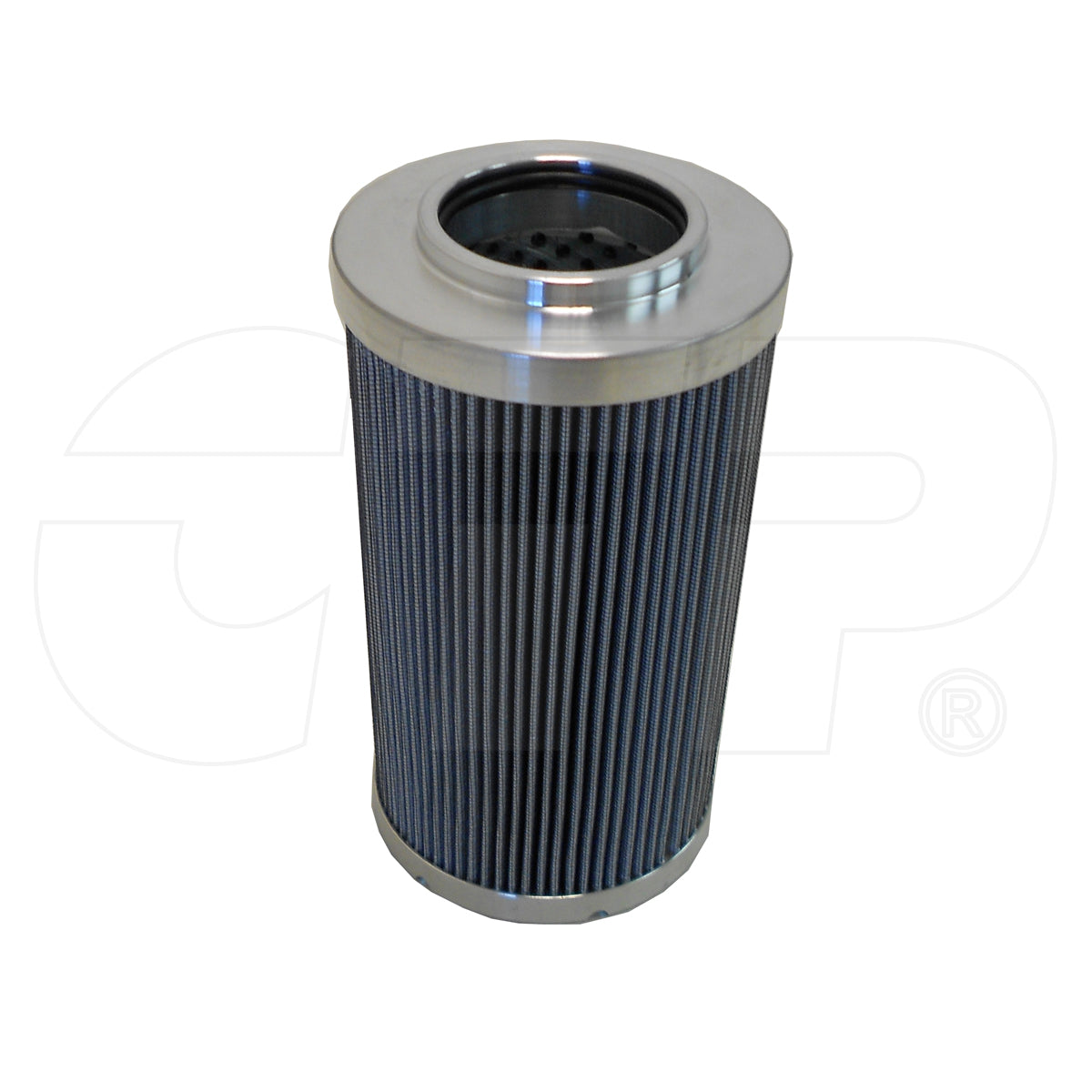

This aftermarket replacement hydraulic filter cartridge replaces Donaldson OEM part number P170595. It is a pressure-line cartridge-style filter element designed for outside-in flow direction, protecting hydraulic circuits from particulate contamination and extending component life in construction, industrial, and heavy equipment applications.

Specifications

• Style: Cartridge
• Outer Diameter: 3.56 in (91.5 mm)
• Inner Diameter: 1.90 in (48.2 mm)
• Overall Length: 6.38 in (161.8 mm)
• Flow Direction: Outside-In
• Micron Rating: 10 micron
• Beta Ratio: 200/13
• Collapse Pressure: 3,045 psi
• Operating Temperature: -13 to 250 degrees F
• Seal Material: Viton
• Media Type: Microglass

Replaces Part Number(s):

P170595

Aftermarket Interchange Numbers

Superseded by Donaldson P566701. Also cross-references: CARQUEST D81E10HV; Caterpillar 3I1929; Fairey Arlon R331HBH15A; Filtrec DHD330H10, DHD330H10B; Hy Pro HP33DHL712MB; HYDAC/HYCON 2056439, 0330D010BH, 0330D010BH3HC, 0330D010BH4HC, 0330D010BHHC, V0334B2H10; Internormen 300432, 020330D10VGHRHCEP; Main Filter DHD330H10; MP Filtri MP9602; NAPA D81E10HV; Pall HC2237FDT6H; Parker PR3182, PR3182Q; Schroeder SBF0331DZ10B; SF-Filter HY13100; Stauff SE090F10B, SE090H10B; Triboguard 330D010H; Vickers V0334B2H10; WIX D81E10HV

New aftermarket replacement part - not remanufactured, not used.
