One New Deck Rebuild Kit Fits Craftsman Fits Husqvarna 42" LT1000 LT2000 130794

One New Deck Rebuild Kit Fits Craftsman Fits Husqvarna 42" LT1000 LT2000 130794

$172.00 CAD
$172.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Complete Deck Rebuild Kit with Mulching Blades

Fits Craftsman, Fits AYP, and Fits Husqvarna 42" Mower Decks

Replaces Part Numbers: 161494, 173437, 144959, 532128285, 128285, 131494, 130794, 129861, 134149, 532144959, 165888

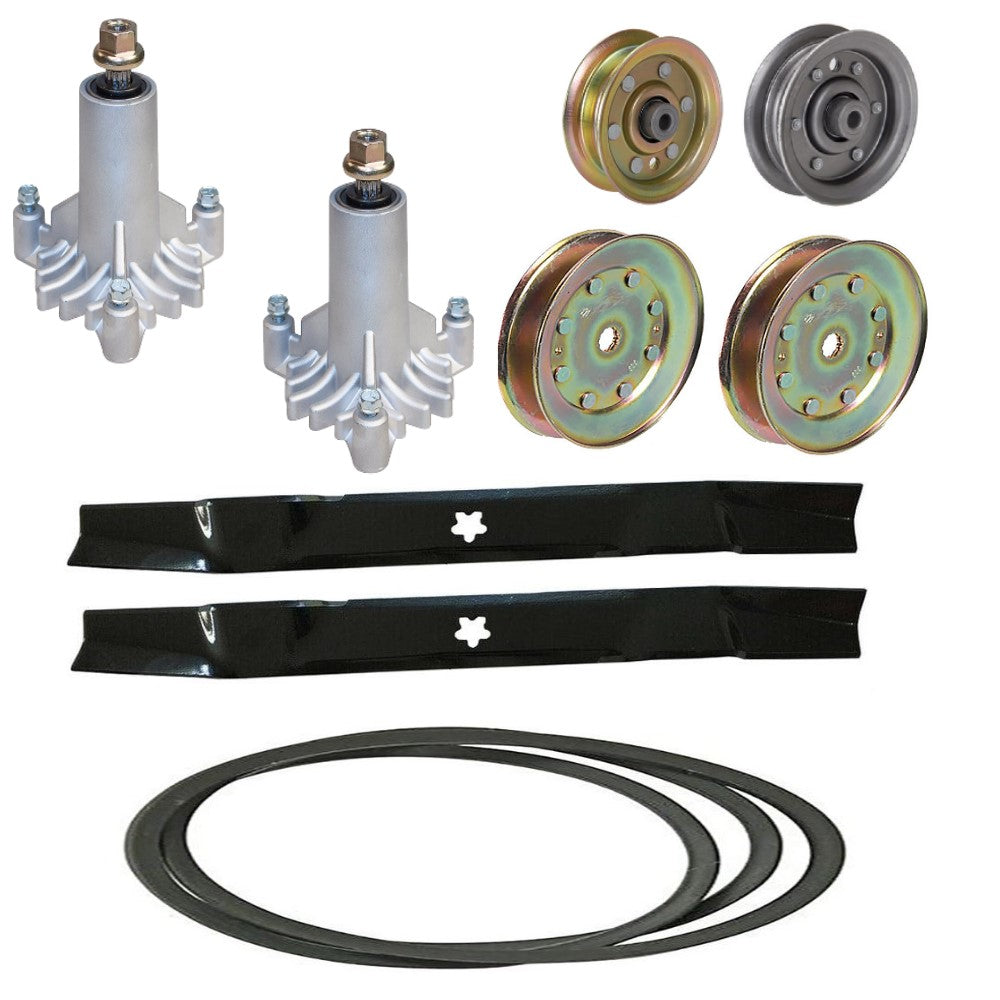

Kit Contains:
(1) Flat Idler Pulley
(2) Spindle Assembly
(2) Mulching Lawn Mower Blade
(1) Flat Idler Pulley
(1) Deck Belt
(2) Drive Pulley

Flat Idler Pulley -
Flat Idler w/ Flanges
Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375'' (3/8") ID

Spindle Assembly -
3-Bolt Long
5 Point Star Center Hole
Comes With Mounting Bolts

Mulching Lawn Mower Blade -
Fits Craftsman 42" Deck
Requires 2 Blades for 42" Deck
Length: 21"
Width: 2-1/4"
Center Hole: 5 Point Star
Thickness: .134"
Mulching Blade

Flat Idler Pulley -
Steel
Fits 42" Decks, 2000 & Later
3.06" OD
3/8" ID

Deck Belt -
Color: Brown
Length: 95-1/2"
Thickness: 0.374"
Type: Wrapped
Width: 1/2"

Drive Pulley -
Outer Diameter: 5-1/6"
Inner Diameter: 9/16"
Fits 42" Deck models
Steel

Available Individually, In Other Multiples, and Various Kits - Please See Our Other Listings!

Models This Part Fits:

LT1000, 42" Mower Decks, LT2000 42" Mower Decks

Additional Information:

Kit Includes: (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888 (1) Deck Belt Length: 95-1/2" Width: 1/2" Made with Aramid Cord Material Replaces Part Numbers: 21547026, 21547027, 21547082, 21547188, 144959, 144959D (2) Drive Pulleys Inner Diameter: 5/8" Splined Outer Diameter: 5" Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535 (2) Spindle Assemblies Overall Height: 7" 5 Point Star Blade Mount Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole Diameter: 5-Point Star Replaces Part Numbers: 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136

Reference Numbers:

104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 21546127, 177865, 153535MS, 153535CS, 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 490-130-0004, 490-900-0034, 21546095, 704429, 131323, 133128, CMXGZAM110021, CMXGZAM110136, 13926, 510417901, 539119852, 539119843, 539118038, , 000000532134149, 41-49, 4149, 53-213-41-49, 532-1341-49, 5321341-49, 594892701, 594893101, 777 13 41-49, 917539110460, 917532422719, 954636867, 917777134149, 917532424752, 917532139775, 917532138498, 91724676, 917139775P, 917138498MS, 917131323, 917127843, 777134149, 539110460, 532424752, 532422719, 532139775, 532138971, 532138498, 532134149, 532131323, 531307224, 531307223, 531005085, 521981601, 24676, 138791, 127843, 424752, 134149, 138498, 422719, 139775, 133288, 138971, 742-025040-637, PP24004, 95-005, 95005
