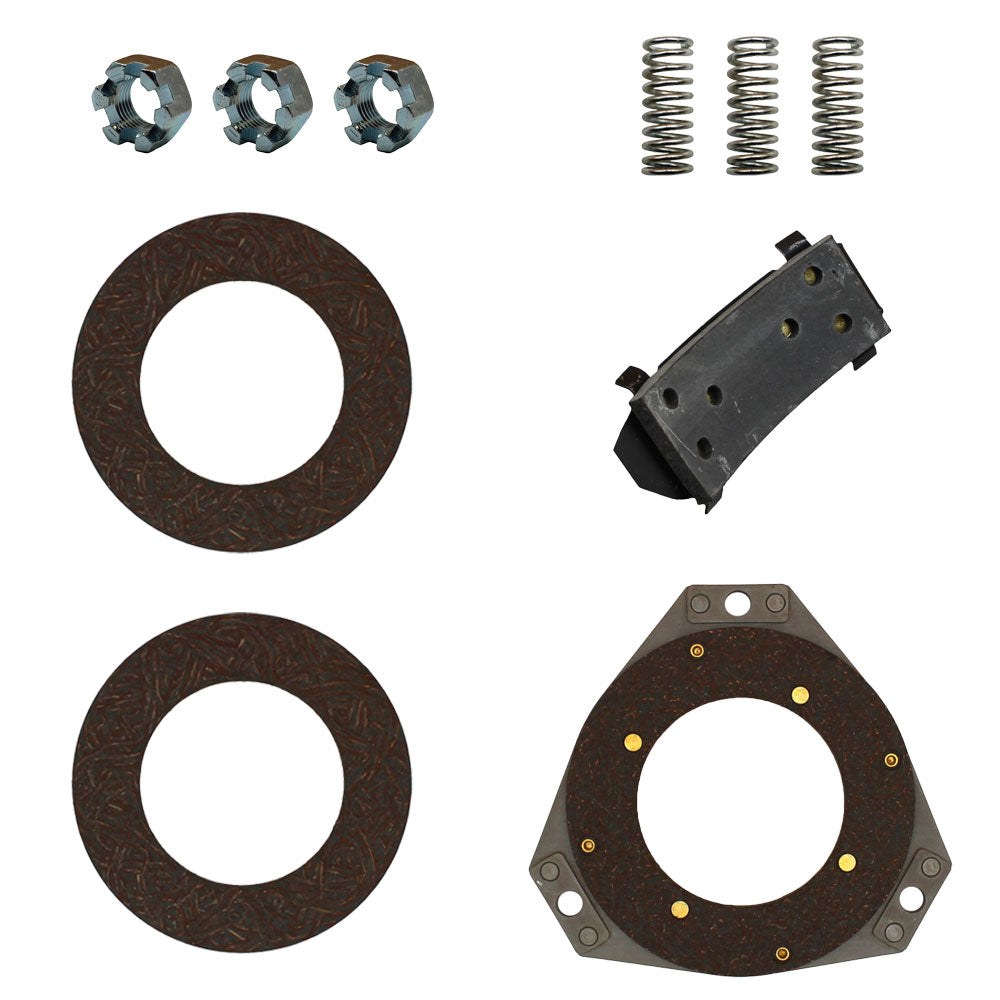

New Aftermarket Clutch Kit Fits John Deere Tractor Models 50 520 530

New Aftermarket Clutch Kit Fits John Deere Tractor Models 50 520 530

$188.00 CAD
$188.00 CAD
Sale Sold out
Shipping calculated at checkout.
New Aftermarket Replacement Clutch Kit

Fits:
Fits John Deere Tractor Models 50, 520, 530

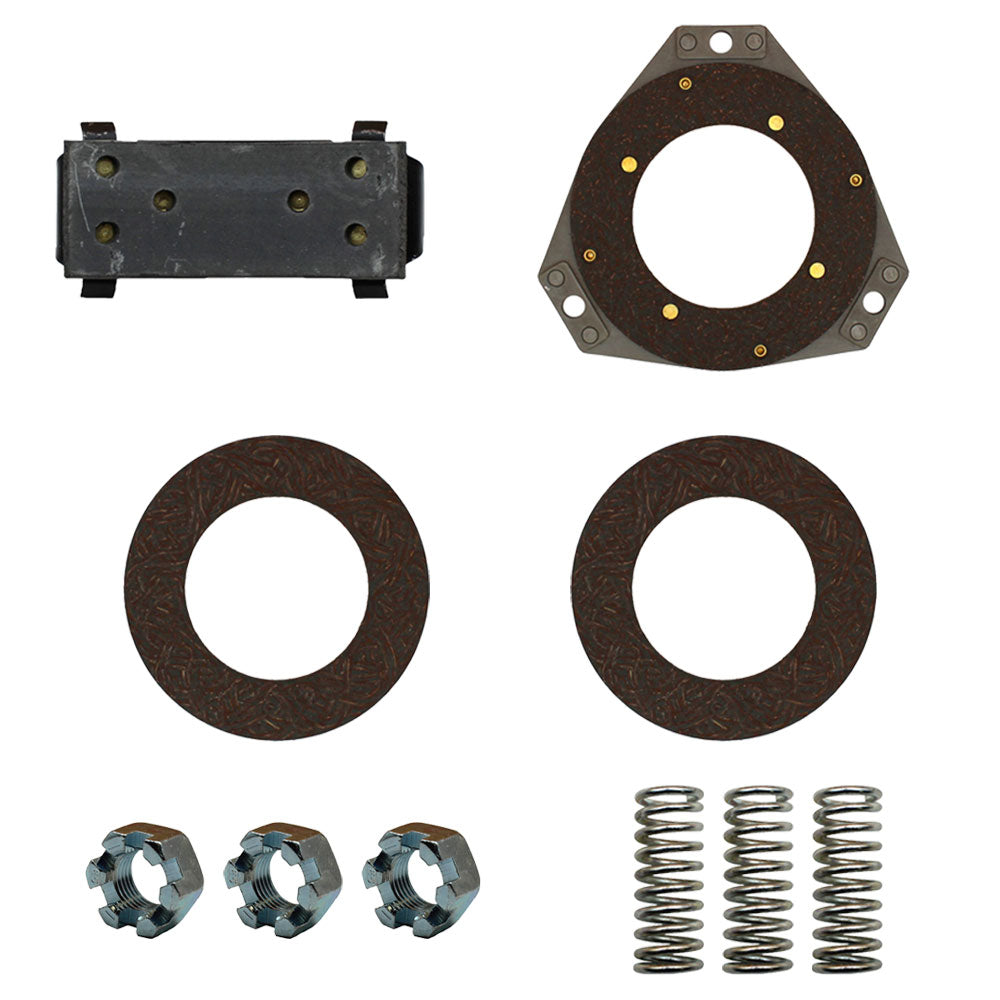

Includes:
(1) - Riveted Disk replaces AB3471R & AB4828R
Tech Info:
Inner Diameter - 4.125"
Outer Diameter (with Tangs) - 9.624"
Outer Diameter (without Tangs) - 6.995"
Thickness - 0.432"
Tang Width - 2"
# of Tangs - 3

(2) - Floating Disks replaces B2345R
Tech Info:
Outer Diameter - 6.94
Inner Diameter - 4.1"

(1) - Pulley Brake Pad replaces AB4748R

(3) - Clutch Springs replaces B161R
Tech Info:
Mounts to the outer cast iron adjusting disc

(3) - Slotted Nuts replaces A335R, AA4967R, B3279R
Tech Info:
1/2" - 20 NF
Grade 5
Zinc
Slotted hex nut, 1/2"
3 Used Per Tractor

Models This Part Fits:

50, 520, 530

Additional Information:

Includes: (1) Pulley Brake Lining Smooth with Countersunk Brass Rivets Replaces Part Numbers: F1405R, R1854, RE29790, AB4748R (3) Clutch Disc Adjusting Spring: Mounts to the Outer Cast Iron Adjusting Disc 3 Required per Tractor Replaces Part Numbers: B161R (3) Clutch Adjusting Nut: 1/2" - 20 NF Grade: 5 Material: Zinc Slotted Hex Nut, 1/2" 3 Used Per Tractor Replaces Part Numbers: 14H994, A335R, AA4967R, B3279R (1) Pulley Disc Clutch Assembly: with Riveted Lining Replaces Part Numbers: RE29878, AB3471R, AB4828R (2) Clutch Facing Disc: Outer Diameter: 7.000" Inner Diameter: 4.125" Thickness: 0.165" Lining Width: 1-1/2" Replaces Part Numbers: B2354R, R90220

Reference Numbers:

F1405R, R1854, RE29790, AB4748R, B161R, 14H994, A335R, AA4967R, B3279R, RE29878, AB3471R, AB4828R, B2354R, R90220

Product Category:

Agriculture
