New Aftermarket Chain Connecting Links for #35 Chain Set of (10) Ten

New Aftermarket Chain Connecting Links for #35 Chain Set of (10) Ten

$19.00 CAD
$19.00 CAD
Sale Sold out
Shipping calculated at checkout.

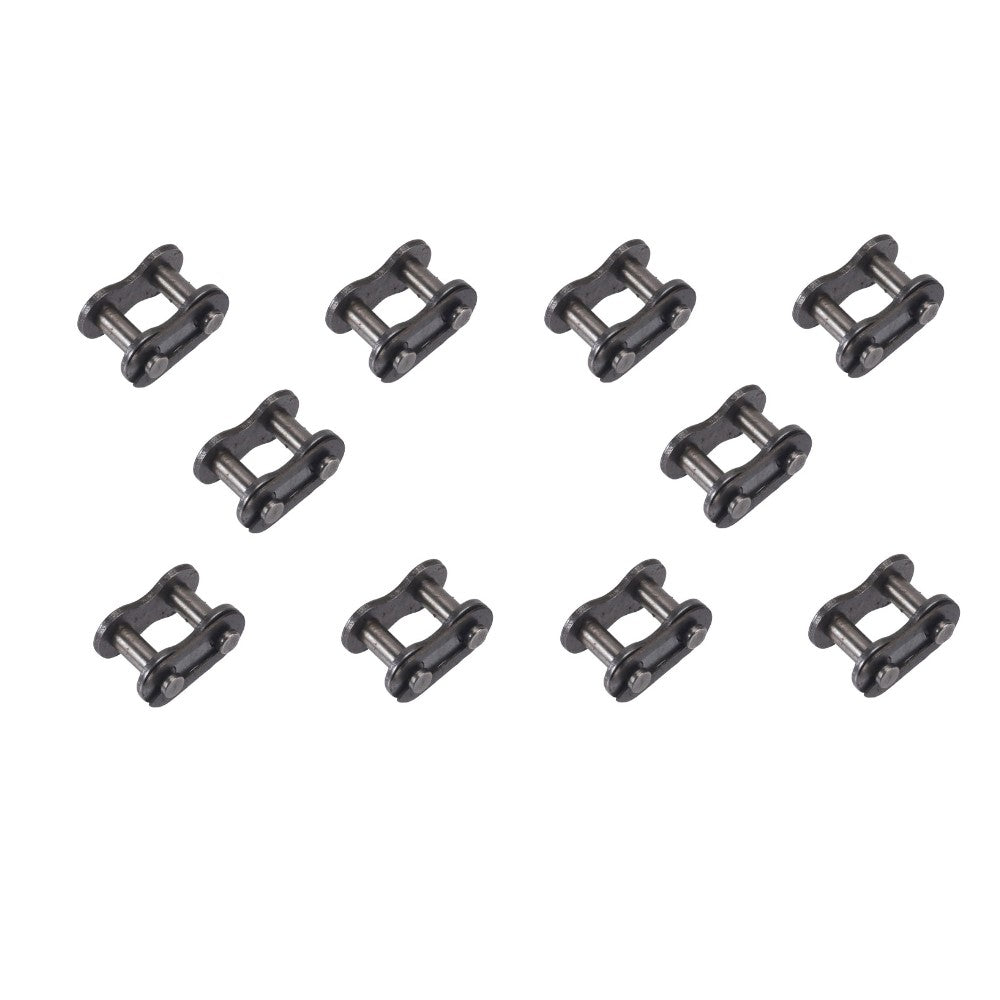

(10) Ten New Aftermarket Replacement Connecting Links For Chain #35


Item Specs:
#35
Pitch (P): 0.375 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
Pin Diameter (d2 max): 0.141 inch (3.58 mm)
Pin Length (L max): 0.488 inch (12.40 mm)
Pin Length (Lc max): 0.518 inch (13.17 mm)
Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
Plate Thickness (T max): 0.051 inch (1.30 mm)
Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
Average Tensile Strength Qo): 10.8 kN
Weight (q): 0.221749 lb/ft (0.33 kg/m)

Replaces Part Number: B1SB400

Models This Part Fits:

Walk-Behind Mowers, 456, 210-031-192, 359WS, 459WS, 678, 466T/WS, Snow Throwers, 342T/WS, 210-031, 210-020-192, #35, 342AWS, 210-310-000, 456AWS, 020, 030, 466AT, 342AT, 210-031-009, 346T/WS, Rear-Engine Riding Mowers, 031-206, 456T/WS, Tillers, 210-031-205, 359, 466A, 1666234, 456A, Fits Gator: TS, 456AT, 459T, 210-031-000, RB-210, RB-510, 031, 466AWS, 210-020-205, 035, 177-930, 210-020-000, 346, 459, RB-300, 342, 466, TX

Additional Information:

Includes Ten Chain Connecting Links Pitch: 3/8" Width Between Inner Plates: 3/16" Roller Diameter: 0.2" Fits #35 Roller Chain

Reference Numbers:

713-0139, 7130139, 913-0139, B1SB400, 02-188, 02188, 7-6486, 7076486, 76486, AH77091, SWC35CO, AH77091, AE24024, AE26916, 913-0139, 713-0139, 7130139

Product Sub Group:

Chain Links and Parts
