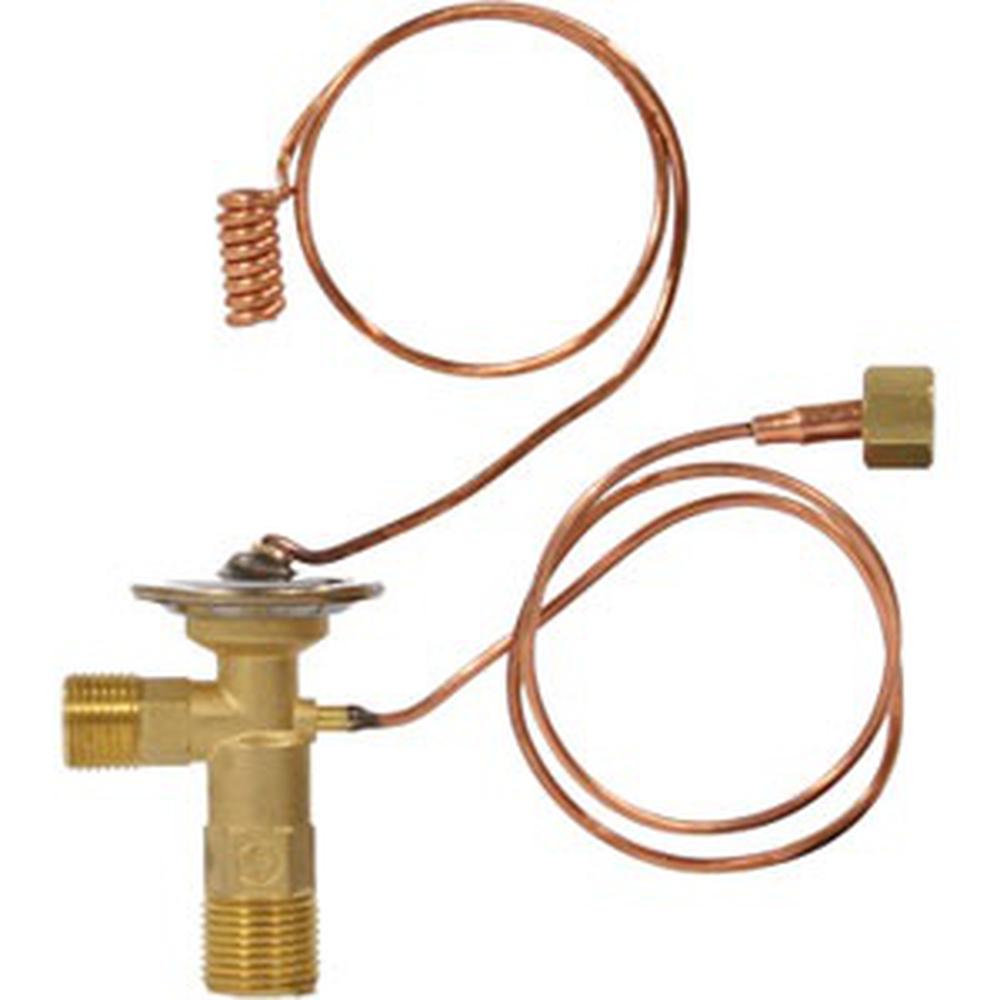

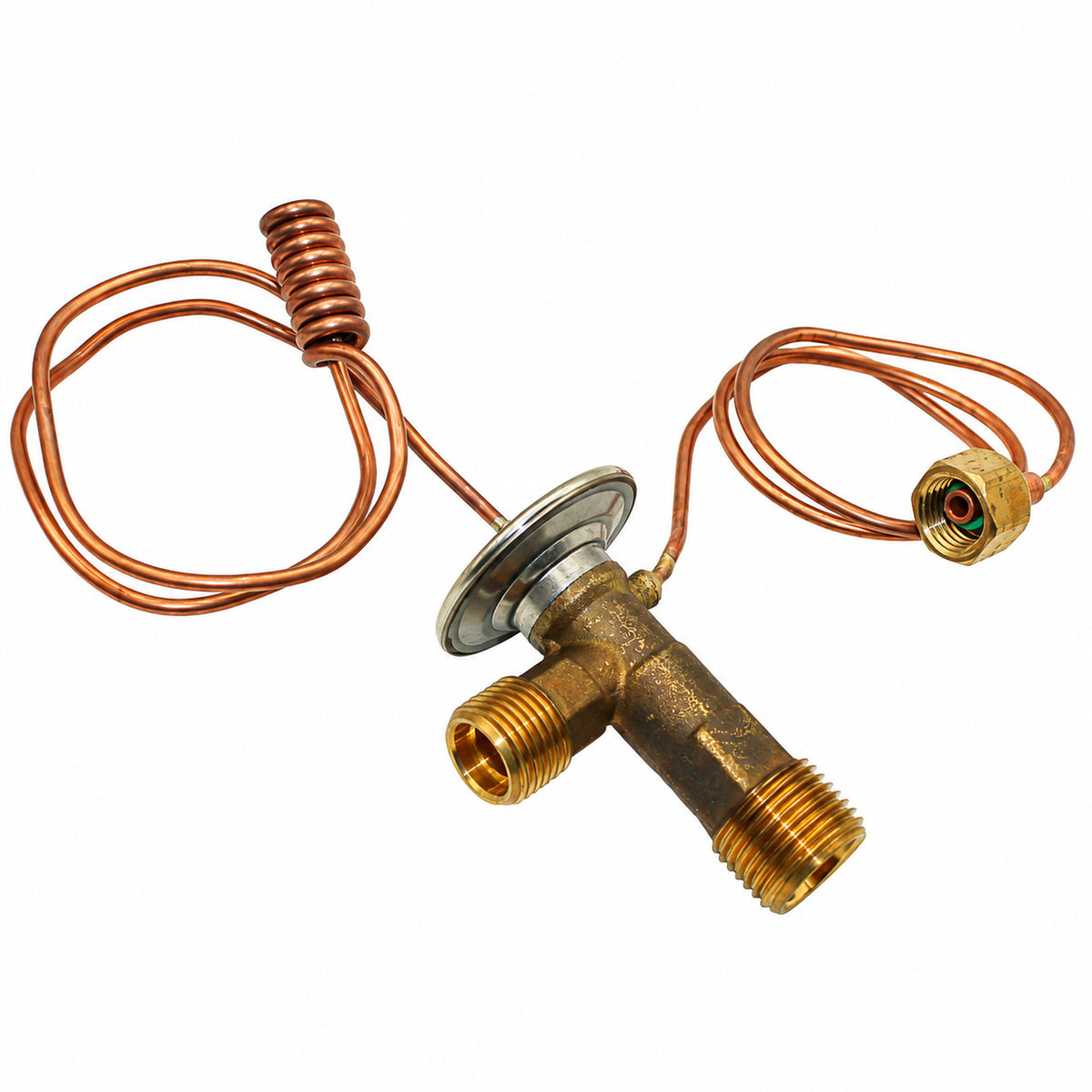

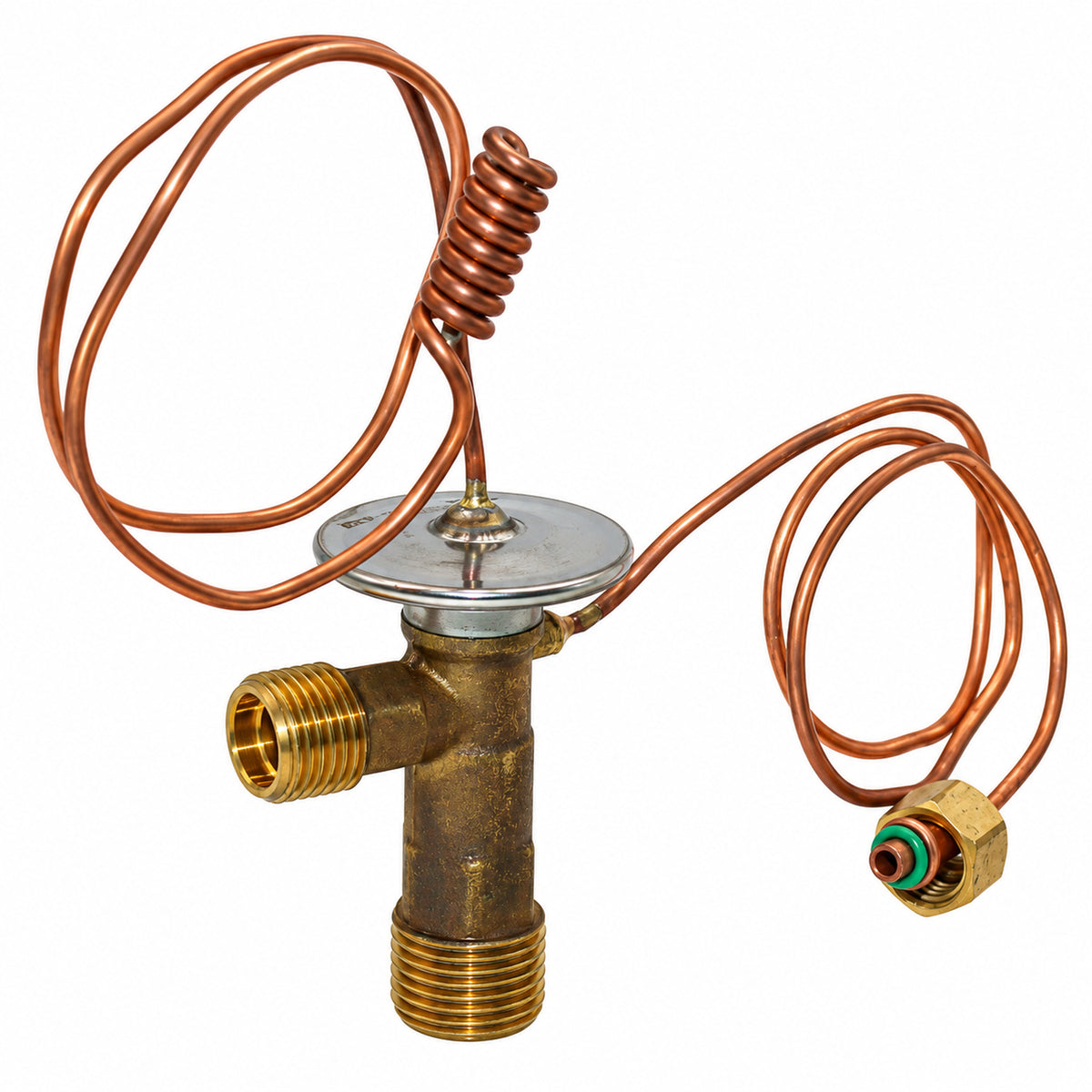

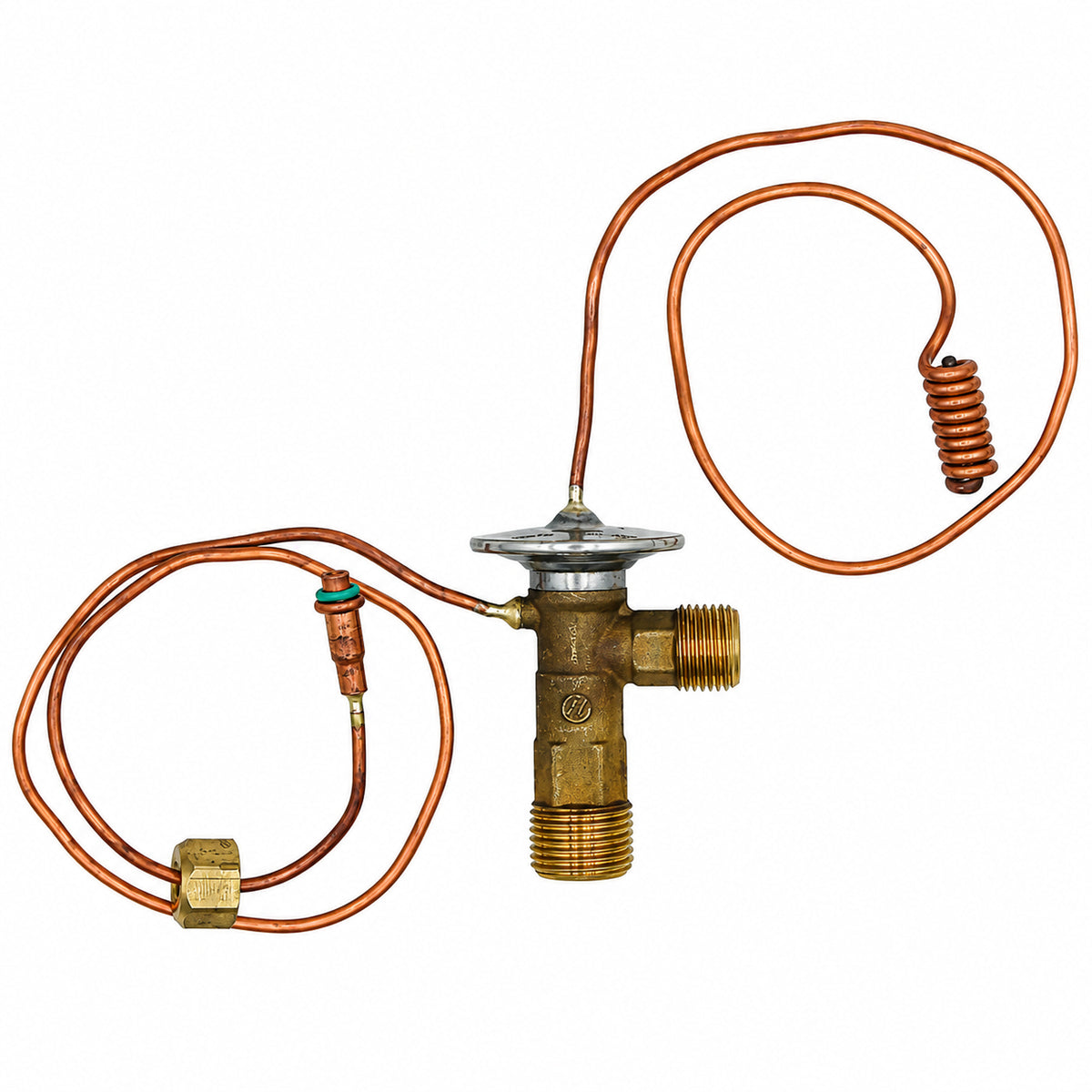

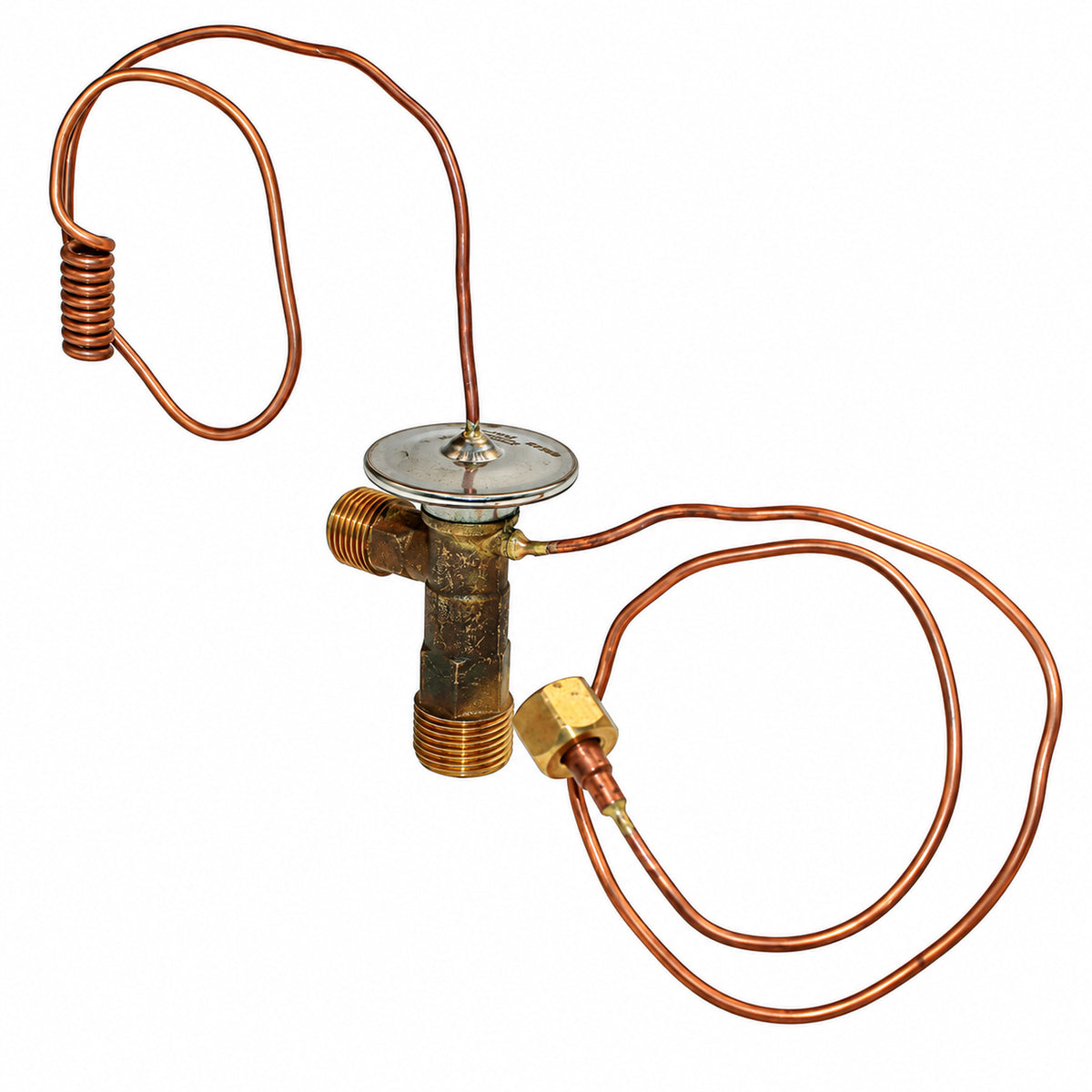

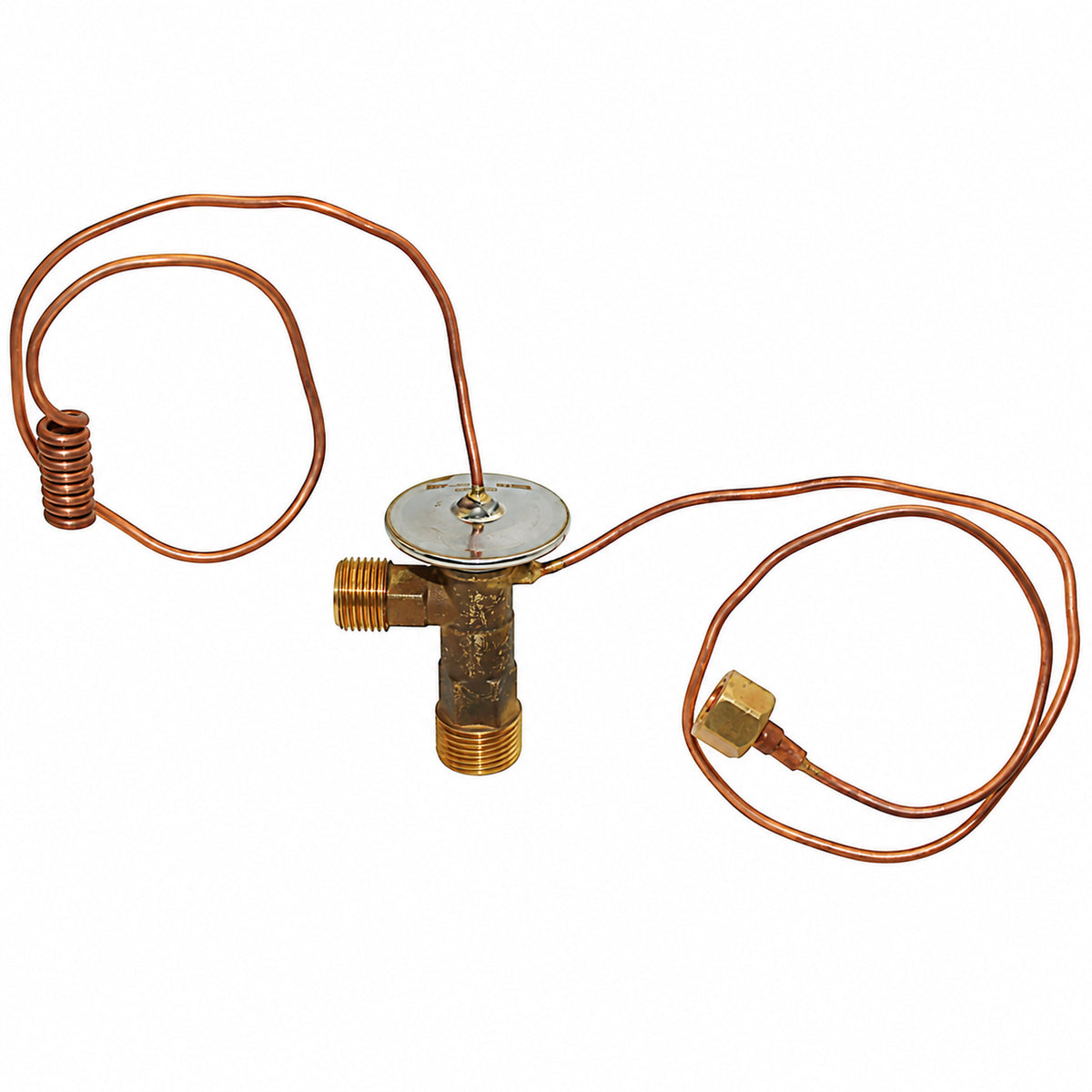

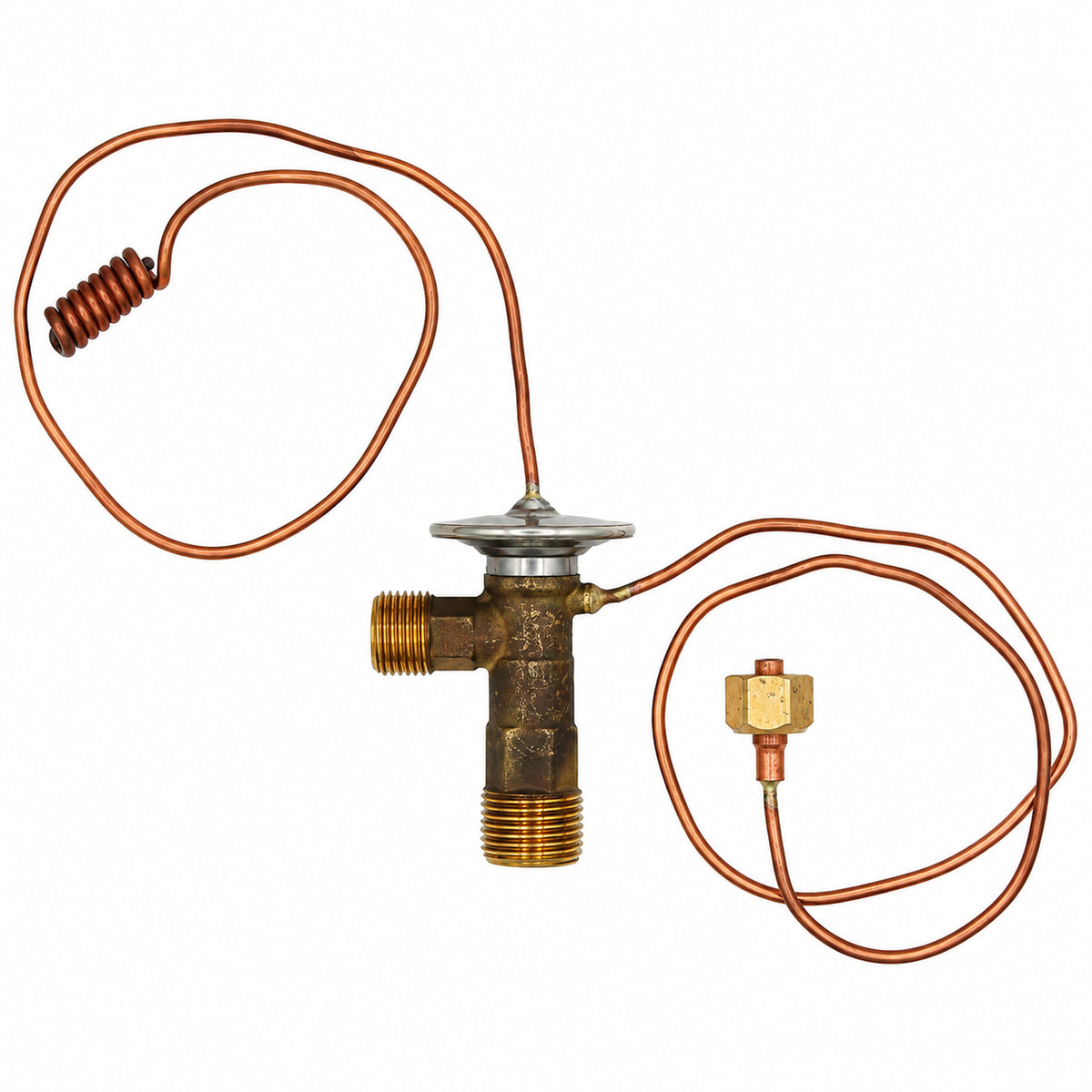

AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH

Name: AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH
SKU: AH140818_4
Price: 52.0 USD
Availability: InStock

AH140818 AC AL37525 Expansion Valve Female Capillary End Fits Case-IH

$52.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

New Aftermarket Replacement O-Ring Type Externally Equalized Expansion Valve

Fits Case-IH Swather/Windrowers:
8820, 8825, 8825HP, 8830, 8840, 8850

Specifications:
Press.Line to Evap.Inlet
Female Capillary End
Bulb: 3/8" Coil
Capillary Length: 12"
Equalizer: 13"-1/4"FO
Inlet: 3/8" Male
Outlet: 1/2" Male
Super Heat: 8
Tonnage: 2

Replaces Part Numbers:
A-904-304, 904-243, 904-288, 904-296, 909205, 909220, A-AG726761, A-AH140818, A-AL37525, AR58482, A-RE13886, A-RE206757, A-V70267, 118305C3, A-1280333C2, A-1634663M1, 261764, A-274571, 3038918M91, A-3321511M91, A-3380223M1, A-70259379, A-70259978, 70261764, A-773361M91, 904-213

Models This Part Fits:

205, 2675, 4230, 1460, 5720, 110-90DT, F130, 2650, 2-155, 5830, 3388, 895, 1594, 1896, 256, 130-90, 8840, 220, 60-90, 7040, 4240S, 72-94, 6620, 2745, 4435, 3050, 200, 115-90DT, 1690, 4450, 1470, TL90, 782, 150, 9935, 7455, TL70, 1166, 555A, 2-150, 4055, 3650, 5820, 3150, 4560, 755A, 70-90, 4030, 60-94DT, 2250, 554 ROGATOR, 2755, 180-90, TR88, 4050, Challenger 75, 1586, 4440, 1640, 7080, 915, 2750, 344E, 4650, 1086, TL100A, M, 72-94DT, SPX3185, 201, 815, 585, T4050, 207, 1169, 9970, 4255, TR96, 9030, TL100, 1466, 55-90, 886, 2-180, 1480, 4700, 2115, 3640S, 4555, 60-94, 9930, 2450, 9910, TR75, 203, Hydro 186, 1075, 209, 9030V, 1915, E, 2140, 8825, 1174HY/4, 4166, 3055, 2705, 595, F115, 88-94DT, 110-90, 1174, 1486, 8030, 2320, 1900, 655B, 786, 1068H, 90-90DT, 685, 260, 3210, 1166HY/4, 7000, 2955, 3588, 8450, Dominator 76, 6600, 8820, 6500, 3255, 699, 210, 7060, 160-90DT, 268, 4040S, 3525, 100-90DT, 2555, 555B, 4350, 82-94, 82-94DT, 6622, 1157, 4840, 7030, 9960, 690B, 3030, 90-90, 2420, 2-105, T5070, 698, 70-90DT, 4630, 276II, 3545, 484, 6060, 2-135, T5050, 4000, 8850, 9976, 7045, SPX4260, 270, 2-110, G, SPX2130, 4750, 95, 5500, 2855, 3640, 65-94DT, 655A, 3140, 6070, 616, 3788, 8640, 3130, 1177, 140-90, F120, 7440, SPX3150, 1169HY/4, 644C, 85-90, Challenger 65, 670, 130-90DT, TL80A, 3505, 2040, 8830, 2550, TL80, 9940, 276, 4250, 208, 6700, 1440, 250, 6100, 8550, 4455, 555, 280 Farmer, T5040, E3, 1155, 2855N, 1085, 276V, 8070, 240, 7720, 160-90, 2840, 1085HY/4, 206, 7450, 800, F140, 2850, 8430, 986, 80-90, 2100, 8440, 755B, 1158, 890A, 885, 9030E, 4955, 2355, 2940, 715, 1188, F, 7580, 1075HY/4, 6080, 65-90, 3185, 100-90, 115-90, 140-90DT, 8825HP, 1055, K, 4430, 3040, 85-90DT, 4755, 3430, 2040S, 2-115, Dominator 86, 1065, 7050, SPX3200B, 7020, 695, 9920, GH, F100, 8050, 2775, 8650, 3155, 9965, 2805, TL90A, 655, 8060, 4040, 256V, 4425, 5000, 65-94, 8080, 4760, 3830, 275, 892DLC, 6000 Hi-Cycle, 65-90DT, 2640, 8630, 60-90DT, 5730, 160, 2950, 8040, 4240, 622, TR95, SPX3200, 4640, 4186, L, TR85, 88-94, 9950, 180-90DT, 444E, 1188HY/4, 1400, 2350, 675, 7445, 4850, 1072, 544 ROGATOR, 80-90DT, 7722, 3350, 7010, 690, Dominator 96, 1420, 4960

Additional Information:

Valve Type: Peanut Inlet Size: #6 Inlet Type: O-ring Outlet Size: #8 Outlet Type: O-Ring Tonnage: 2.0T Superheat: 8 Capillary Length: 14-1/2" Equalizer Length: 18" Equalizer Fitting: 7/16-20 UNF

Reference Numbers:

86000562, V48724, V70267, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, AG726761, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 118305C3, 1280333C1, 1280333C2, 274571, 47597455, 47597457, 128033C1, 128033C2, 274571, 47597455, 47597457, 80449624, E3NN19849AA, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 176.713.0, AG726761, 274571, 9966200, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, 60012-5002, 118305C3, 1280333C2, 274571, 47597455, 47597457, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 80449624, E3NN19849AA, V70267, 274571, 47597455, 47597457, BN69872, 70268470, 70261764, 70259978, 70259379, 700712704, 700711760, 261764, F205550050180
