New 2 Brush Generator Kit Fits FARMALL Tractors 100 130 140 200 230

New 2 Brush Generator Kit Fits FARMALL Tractors 100 130 140 200 230

$54.00 CAD
$54.00 CAD
Sale Sold out
Shipping calculated at checkout.

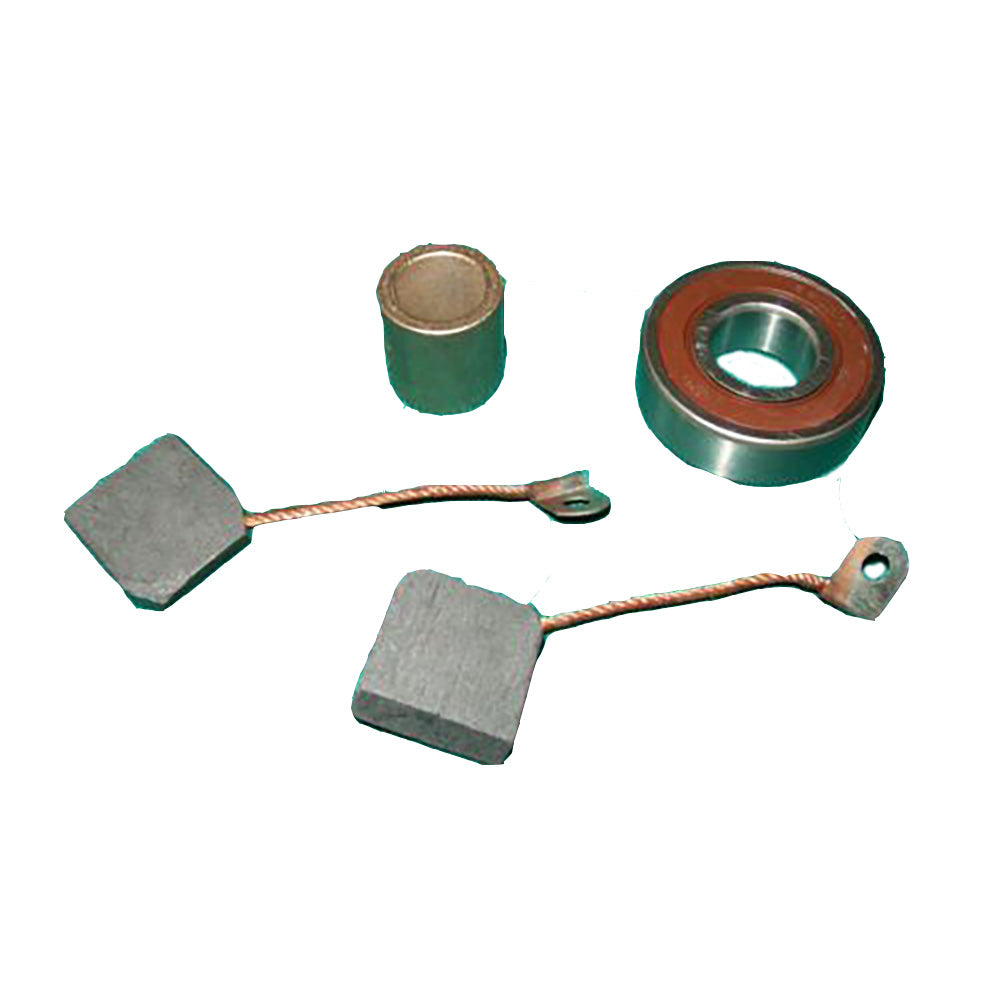

One (1) New Aftermarket Replacement Two Brush Generator Kit

Fits IH Fits FARMALL Tractor Models: 100, 130, 140, 200, 230

Kit Contains:
(1) Sealed Ball Bearing (Econ Version)
(1) Generator Bushing
(2) Generator Brush

Sealed Ball Bearing (Econ Version) -
ID: 0.669" (17mm)
OD: 1.575" (40mm)
Width: 0.472" (12mm)
Bearing Type: Double Sealed
Replaces Part Numbers: 05418800, 110485, 110485X, 16-7503, 1705897, 17x40x12, 203SZZ, 236544, 25-1, 26853, 2995036, 43283, 43846MA, 52147, 566000, 601, 6203-2NSE9, 6203-2RS, 6203-2RS-C3, 6203-2RS-ECON, 6203-2RS1, 6203-ZZ, 62032RS, 6203LL, 6203RS, 6203ZZ, 71123, 779067MA, 832498, 900529, 908419, 941-0124, 941-0600, 954378, 954938, 960 102 176, A930X94570, BRG0016, C100800-11, C5NN7600A-EC, CLB10-0049, JD92, JD9394, JD9449, M04-25-01, PX1025, TPJD9281, VPG5010, X4087, Z99503XR

Generator Bushing -
ID: .56"
OD: .78"
Width: .8"
Replaces Part Numbers: 1850786, 812823, 133-12053-5, GDR7100, D1634

Generator Brush -
Length: 0.925in / 23.5mm
Width: 0.866in / 22mm
Height: 0.256in / 6.5mm
Lead Length: 1.72in / 43.7mm
Replaces Part Number: 231313

Models This Part Fits:

5200D, 1100323, 1102692, 1102712, 1102741, 6500D and 6700D; 3500D, 1103000, 1102691, 1102799, 1102985, S-620 CCR2000 223D, 1102113, 1102976, 114 314, 5510, 1102730, 084, 1102665, 1102670, 4700D, 1102739, 1102688, 1102754, 1102819, 1102724, 1102757, 3505D, 1102708, 1102709, 5400D, 1101866, 1102680, 1102761, 1102693, 1102987, 2004 and newer, 1102743, 1102697, 1102714, 1102723, 1102746, 1102679, 1102713, 1102721, 1105855, 5300D, 074, S-200, 1102663, 1102669, 1102674, 1102694, 1100021, 1105851, 1102677, 1102732, 4500D, 1102668, 1102774, 1102701, 1102718, 1102981, 1102738, 1102673, 5100D, 1102672, 1102777, 1102752, 1102662, 1102736, 1102661, 1102748, 1102726, 5210, 5610, 1102776, 5410, 1105854, 1102751, 1102664, 1102996, 1102667, 1102716, 1102722, 1102731, 1102678, 1102671

Additional Information:

(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version): Inner Diameter: 0.669" (17mm) Outer Diameter: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (2) Generator Brush: Height: 0.256" (6.500 mm) Lead Length: 1.720" (43.700mm) Length: 0.925" (23.500 mm) Width: 0.866" (22 mm) Replaces Part Numbers: 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58

Reference Numbers:

100-1048, 109966, 112-0423, 38-7820, 702581, 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 01000340, 095406, 137760, 706-085336, 741-0124, 741-0124A, 941-0124, 941-0600
