Mower Deck Rebuild Kit Fits Universal Products Replaces B1JD46

Name: Mower Deck Rebuild Kit Fits Universal Products Replaces B1JD46
SKU: AY-LAB40-0005_01
Price: 311.0 USD
Availability: InStock

Mower Deck Rebuild Kit Fits Universal Products Replaces B1JD46

$311.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Mower Deck Rebuild Kit

Tech Info:

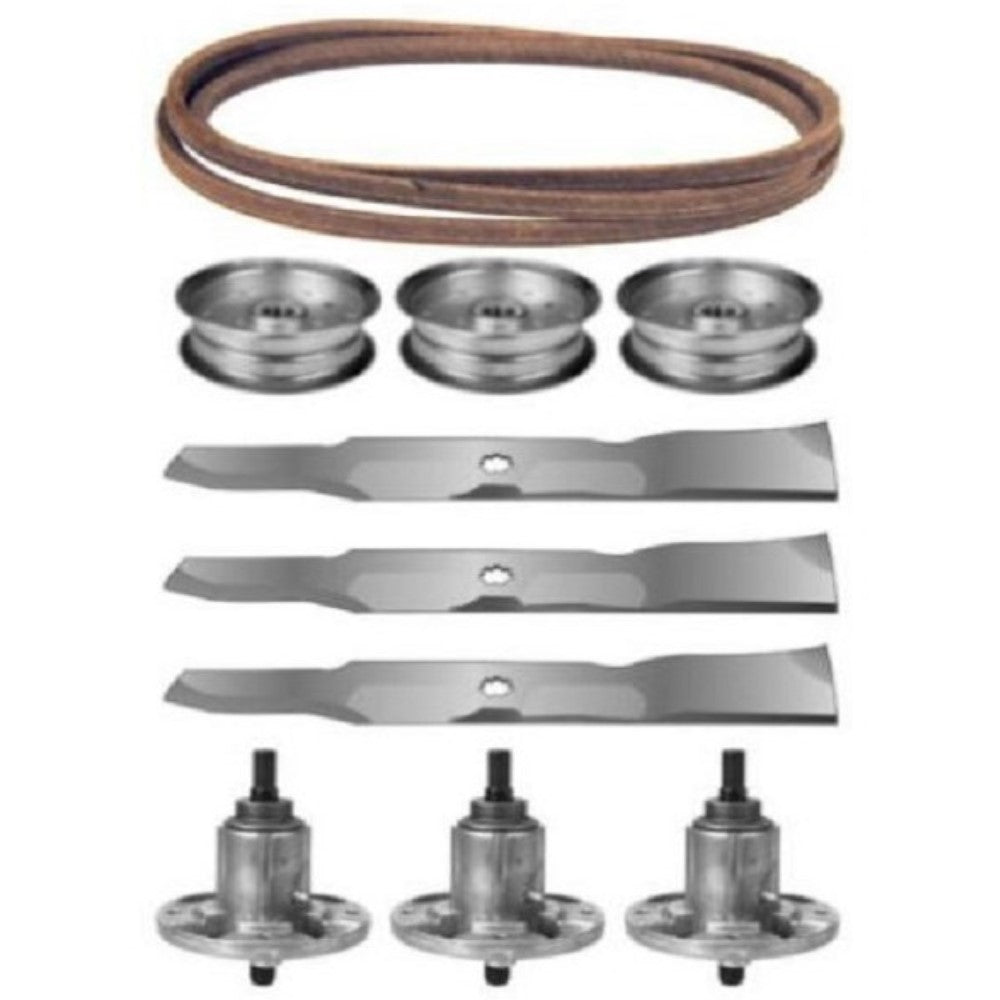

-3 Spindles, 3 Blades, 3 Flat Idler Pulleys, and Deck Belt
-
-3 Mower Blades
-Length: 18-5/8"
-Width: 2-3/4"
-Center Hole: 7 Point Star
-Thickness: .187"
-Replaces: B1JD6019, A-B1JD6019
-
-3 Spindles
-Outside Diameter: 5"
-Height: 6-1/8"
-No threads in housing, use self-tapping screws
-Replaces: GY20454, GY21098
-
-3 Flat Idler Pulleys
-5-1/4" Outer Diameter Including Flanges
-11/16" Inner Diameter
-1-3/4" Height
-Replaces: GY20629, 10737
-
-1 Deck Belt
-Length: 161.4"
-Material: Made With Kevlar Cord
-Style: Wrap
-Thickness: 0.42"
-Type: Wrapped
-Width: 5/8"
-Replaces: B1B158

Fits Universal Products:
Other (Lawn & Garden) Models: 42" Decks
Replaces Part Number(s): B1JD46, FRS20-0118

Models This Part Fits:

LA175, LA130, D120, LA105, 190C, G110, LA115, D155, D140, D100, X120, D160, 115, X105, D130, LA110, X115R, 125, LA155, D105, D125, X165, LA145, LA150, D170, 145, X140, LA125, LA140, 107-17HS, LA135, X125, 102, D110, LA165, X110, X135R, 135, LA120, 42" Decks, X155R, 105, 100, X145, LA100, 155C, X130R

Additional Information:

3 Spindles, 3 Blades, 3 Flat Idler Pulleys, and Deck Belt 3 Mower Blades Length: 18-5/8" Width: 2-3/4" Center Hole: 7 Point Star Thickness: .187" Replaces: B1JD6019, A-B1JD6019 3 Spindles Outside Diameter: 5" Height: 6-1/8" No threads in housing, use self-tapping screws Replaces: GY20454, GY21098 3 Flat Idler Pulleys 5-1/4" Outer Diameter Including Flanges 11/16" Inner Diameter 1-3/4" Height Replaces: GY20629, 10737 1 Deck Belt Length: 161.4" Material: Made with Kevlar Cord Style: Wrap Thickness: 0.42" Type: Wrapped Width: 5/8" Replaces: B1B158
