86512356 Air Filter Fits Ford New Holland Skid Steer L865 L885 LX865 LX885 7530

Name: 86512356 Air Filter Fits Ford New Holland Skid Steer L865 L885 LX865 LX885 7530
SKU: M132089
Price: 80.0 USD
Availability: InStock

86512356 Air Filter Fits Ford New Holland Skid Steer L865 L885 LX865 LX885 7530

$80.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Outer Air Filter Fits John Deere, Deutz, and Fiat Tractors

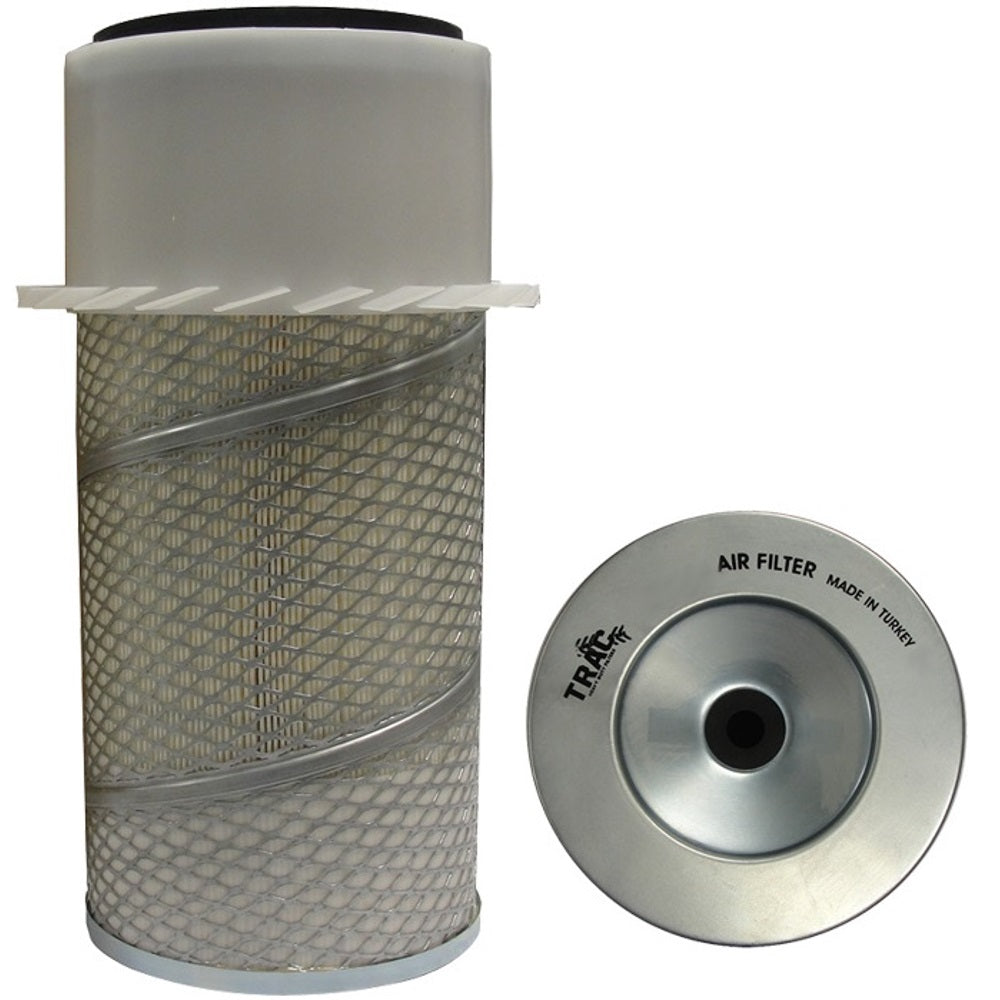

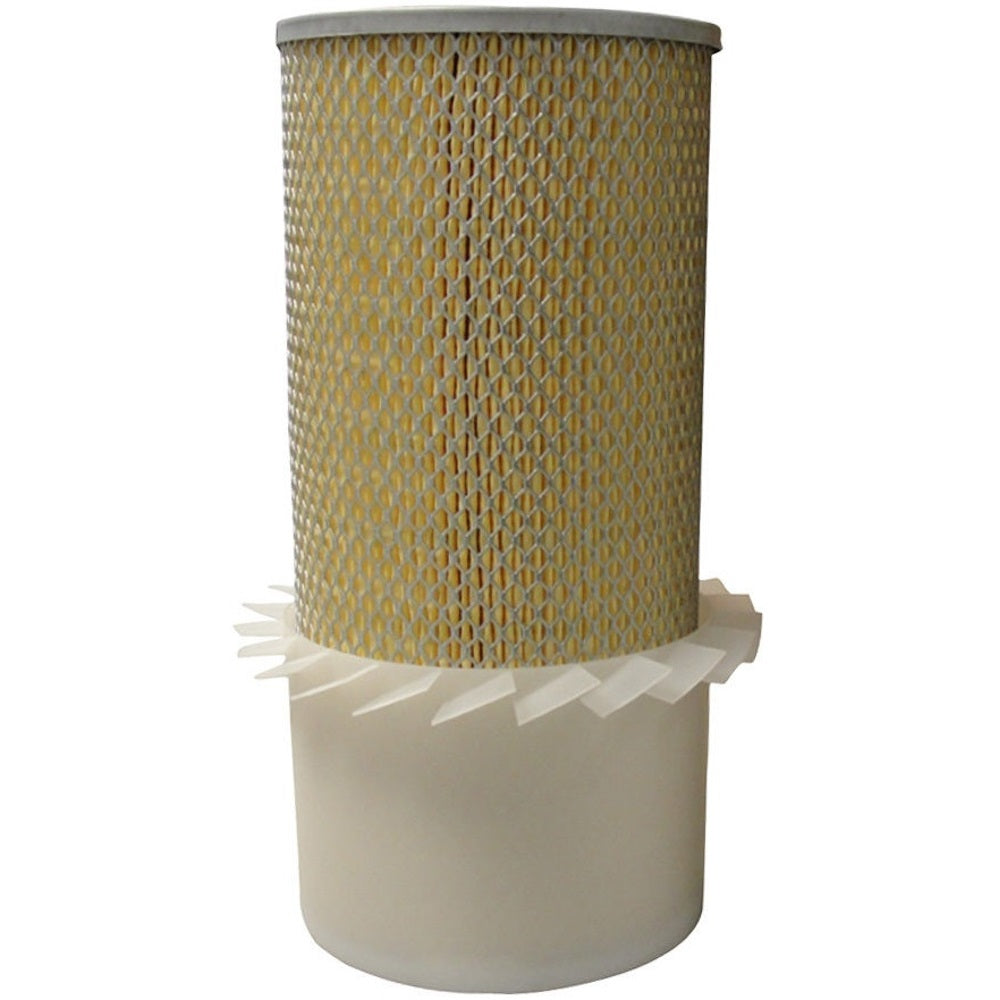

This outer air filter element (with fins) protects the engine air intake system by capturing dust, debris, and contaminants before they can reach engine components. It fits a wide range of Fits John Deere (Fits JD) 5-Series tractors as well as Deutz DX-Series and Fiat 90-Series agricultural tractors. Replaces OEM part numbers from Fits John Deere, Deutz, and Fiat/Fits New Holland.

Specifications

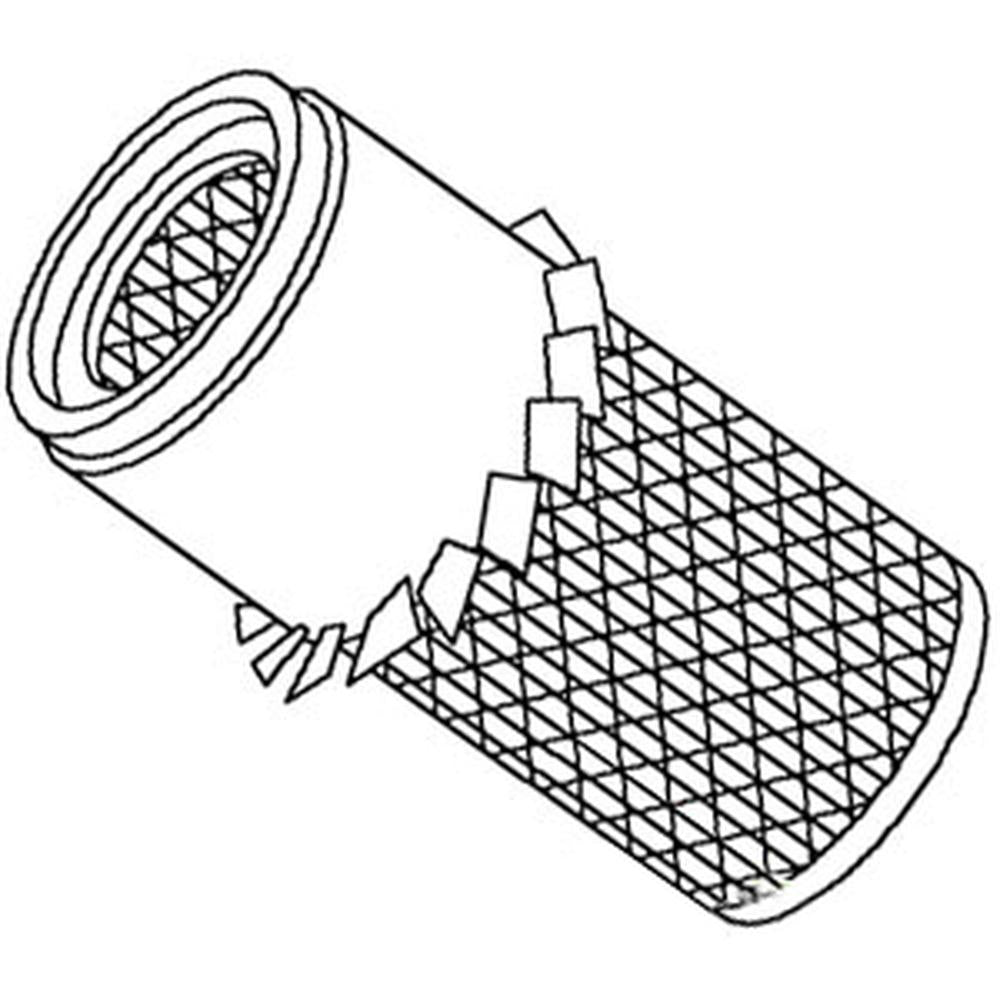

Filter Type: Outer Air Element with Fins
Gasket Type: F-Gasket G103-N
Filter Length: 13-1/2 in. (342.9 mm)
Outer Diameter (body): 6-3/32 in. (154.8 mm)
Outer Diameter (fins): 7-13/16 in. (198.4 mm)
Inner Diameter: 3/4 in. (19.1 mm) and 3-15/32 in. (88.1 mm)

Compatible Models

Fits John Deere (Fits JD) 5-Series Tractors: 5200, 5300, 5300N, 5400, 5400N, 5500, 5500N

Deutz / Deutz-Fahr DX-Series Tractors: DX4.10, DX4.30, DX4.31, DX4.50, DX4.70, DX6.05, DX6.10, DX6.30, DX80, DX85, DX86, DX90, DX92, DX110, DX120

Deutz / Deutz-Fahr Other Tractors: 680, 680DT, 780, 780DT, 880, 880DT, 880-5, 880-5DT, 980, 980DT

Fiat 90-Series Tractors: 55-90, 55-90DT, 60-90, 60-90DT, 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-55, 85-90, 85-90DT, 90-90, 90-90DT, 95-55, 95-90, 95-90DT, 100-90, 100-90DT, 110-90, 110-90DT

Replaces Part Number(s):

M132089 (Fits John Deere), RE45827 (Fits John Deere), 86529587 (Fits New Holland/Fiat), VPD7074, 04319257, 1909116, 5102236

Aftermarket Interchange Numbers

Baldwin PA3779-FN, Fits Donaldson P546566, WIX 46487, 46537, 546487, 546537, Luber-Finer LAF8429

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

95-55, 880-5DT, DX6.30, DX4.31, 780DT, DX4.30, 90-90DT, 5300N, DX6.05, 65-90DT, 70-90DT, 5500, 55-90, 100-90DT, 5500N, 90-90, DX85, 70-90, 680, 880DT, 880, 680DT, 980DT, 95-90DT, 5300, 980, 85-90, 110-90DT, 100-90, 780, 60-90DT, 5200, 95-90, 65-90, DX86, DX92, DX4.50, 5400, 55-90DT, 85-90DT, DX90, DX4.70, 60-90, 80-90, DX120, DX110, DX4.10, DX80, 80-90DT, 880-5, DX6.10, 110-90, 85-55, 5400N

Additional Information:

F-Gasket G103-N Filter Length: 13 1/2 Inches Filter O.D. : 6 3/32 Inches Inner Dimension 3/4 (19.1) & 3 15/32 (88.1) Length 13 1/2 (342.9) Outer Dimension 6 3/32 (154.8) Fins 7 13/16 (198.4)
