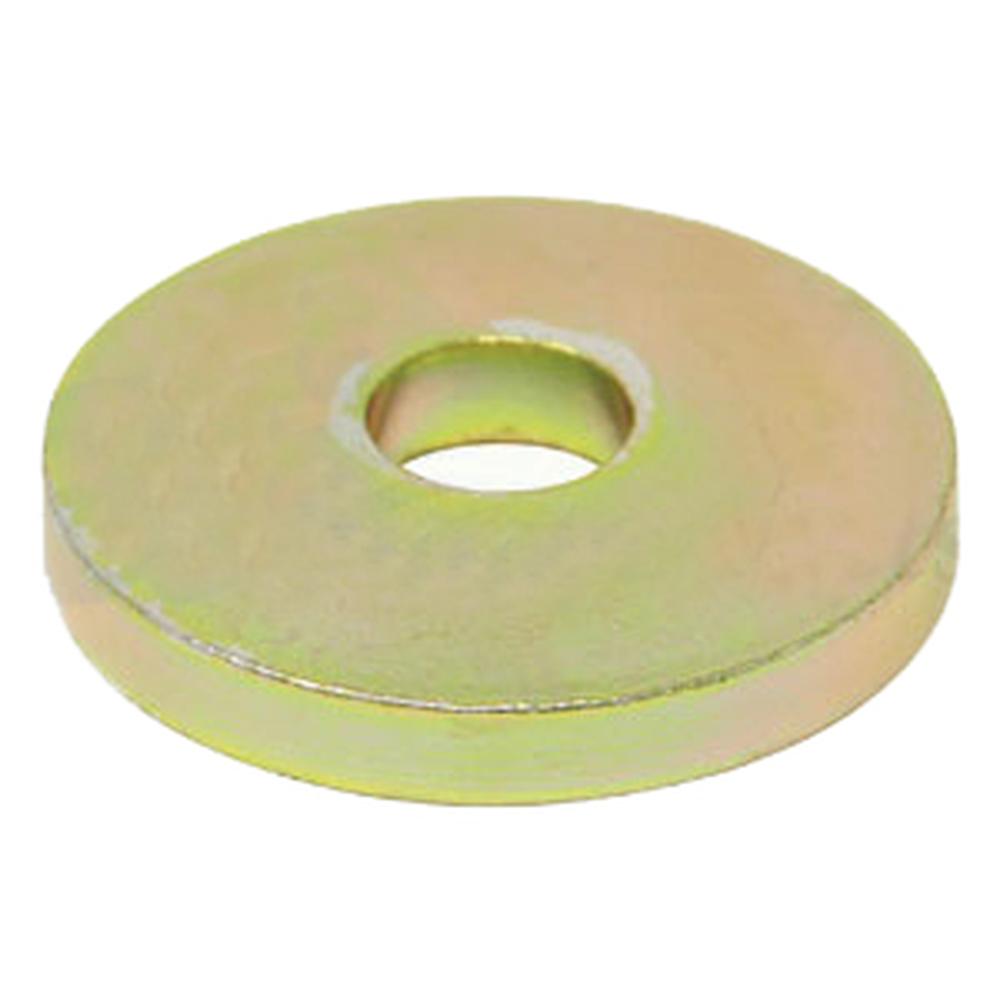

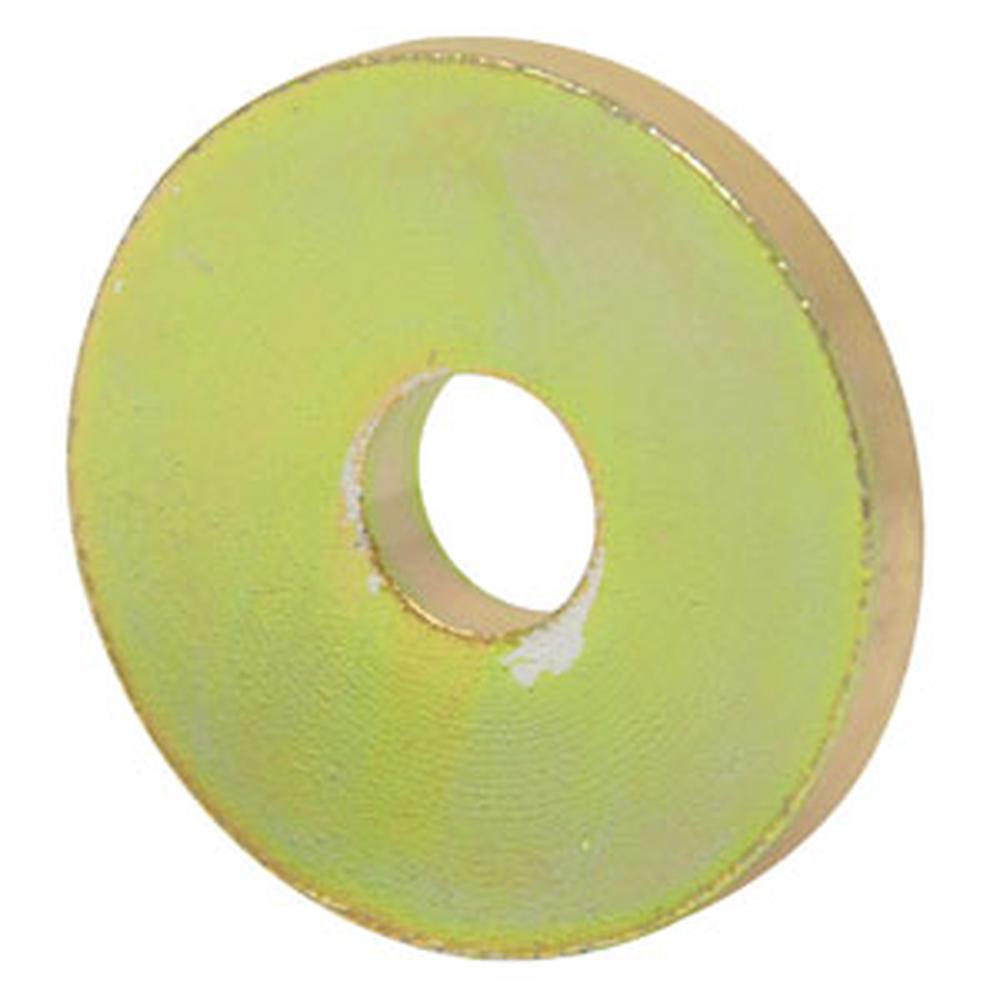

M113128 WASHER; PTO CLUTCH
M113128 WASHER; PTO CLUTCH
Couldn't load pickup availability
One New Aftermarket Replacement PTO Clutch Concave Washer Fits John Deere Lawn & Garden Equipment
This aftermarket replacement PTO clutch attaching concave washer fits the electric PTO clutch on a wide range of Fits John Deere riding mowers, front mount mowers, and lawn tractors. Install with the cupped face toward the clutch; use with an M10 x 80mm bolt. Replaces OEM part number M113128 and supersedes M74824.
Specifications
- Inside Diameter: 0.406 in (10.30 mm)
- Outside Diameter: 1.378 in (35 mm)
- Thickness: 0.204 in (5.18 mm)
- Material: Steel, heat-treated and plated
- Use with: M10 x 80mm bolt
- Installation note: Cupped face toward clutch
Compatible Models
Fits John Deere Riding Mowers: 108, 111, 111H, 112L, 130, 160, 165, 170, 175, 180, 185, 240, 245, 260, 265, 285, 320, 325, 335, 355D, STX30, STX38, LX172, LX173, LX176, LX178, LX186, LX188, GT242, GT262, GT275, GX345, GX355
Fits John Deere Front Mount Mowers: F510, F525, F710, F725, F735
Fits John Deere Greens Mowers: 2243, GS25, GS30, GS45, GS75, HD45, HD75
Fits John Deere Walk-Behind / Other: 1600
Replaces Part Number(s):
M113128, A-M113128, A-M113128-AI, M74824
New aftermarket replacement part - not remanufactured, not used.
