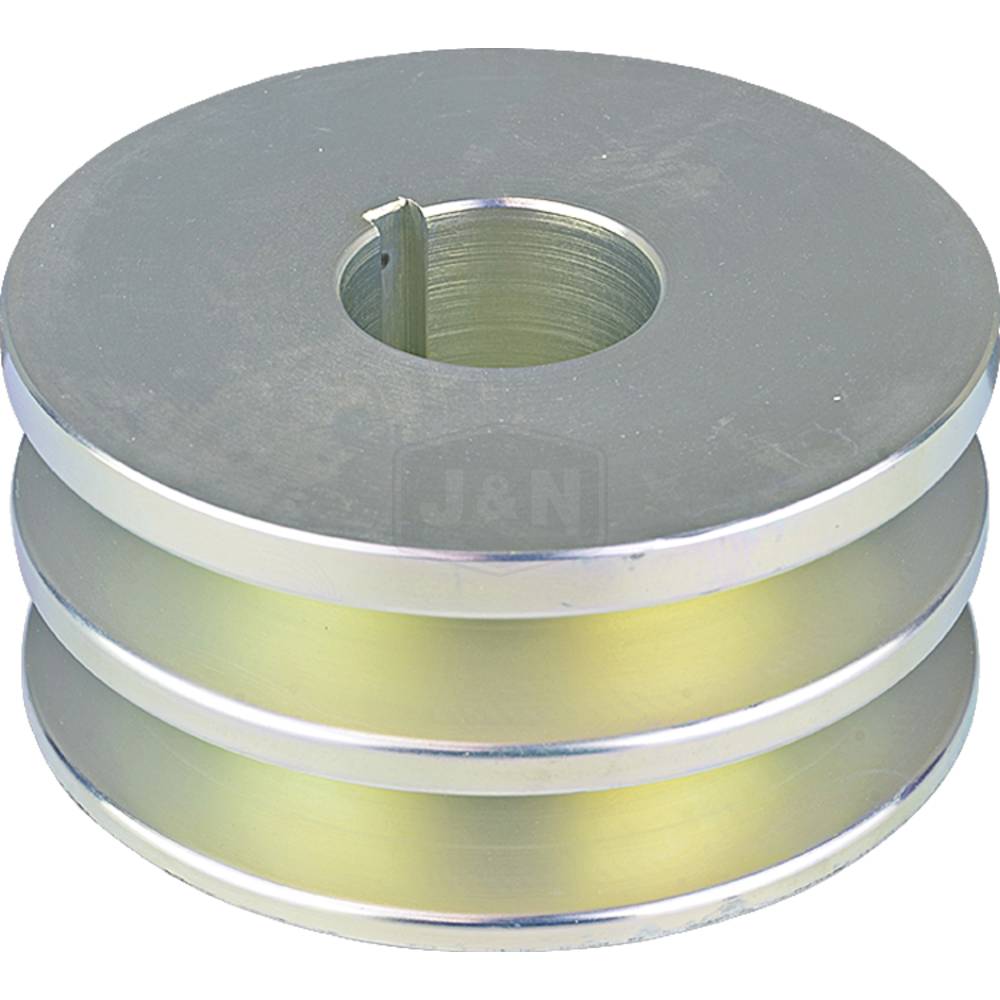

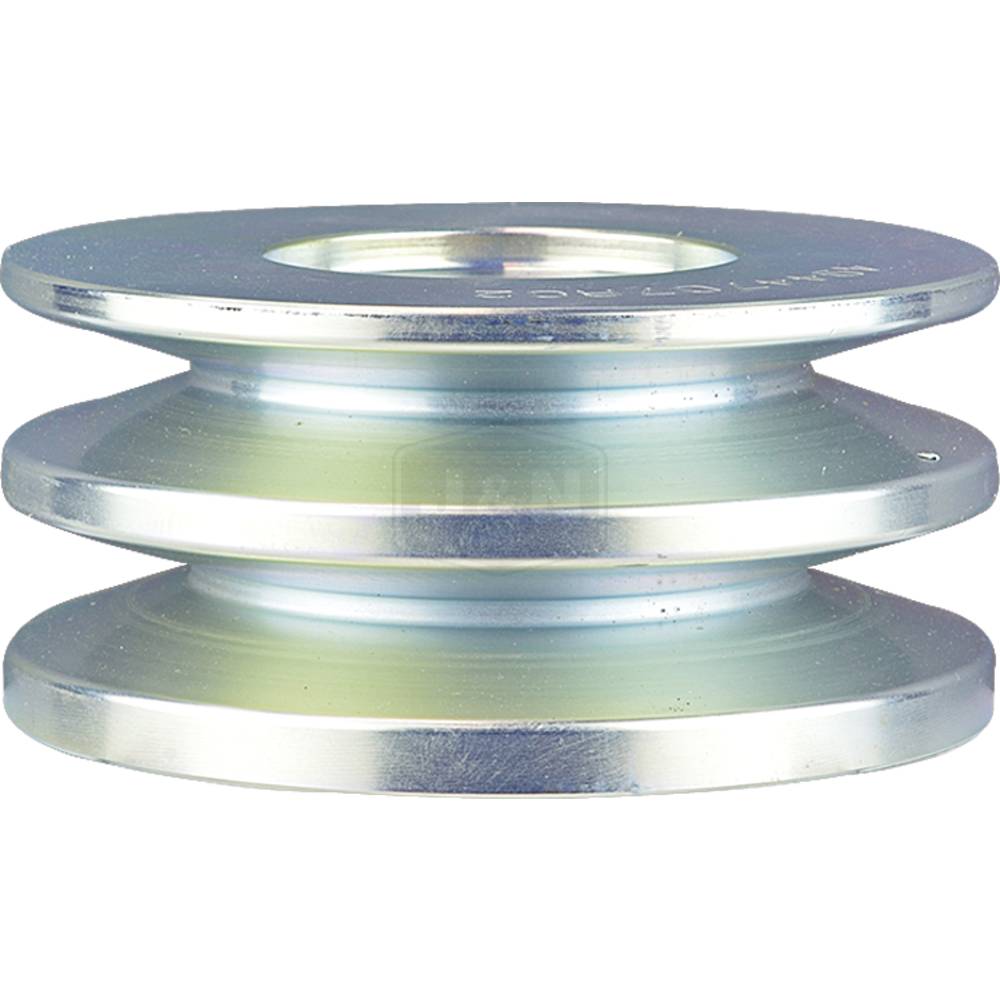

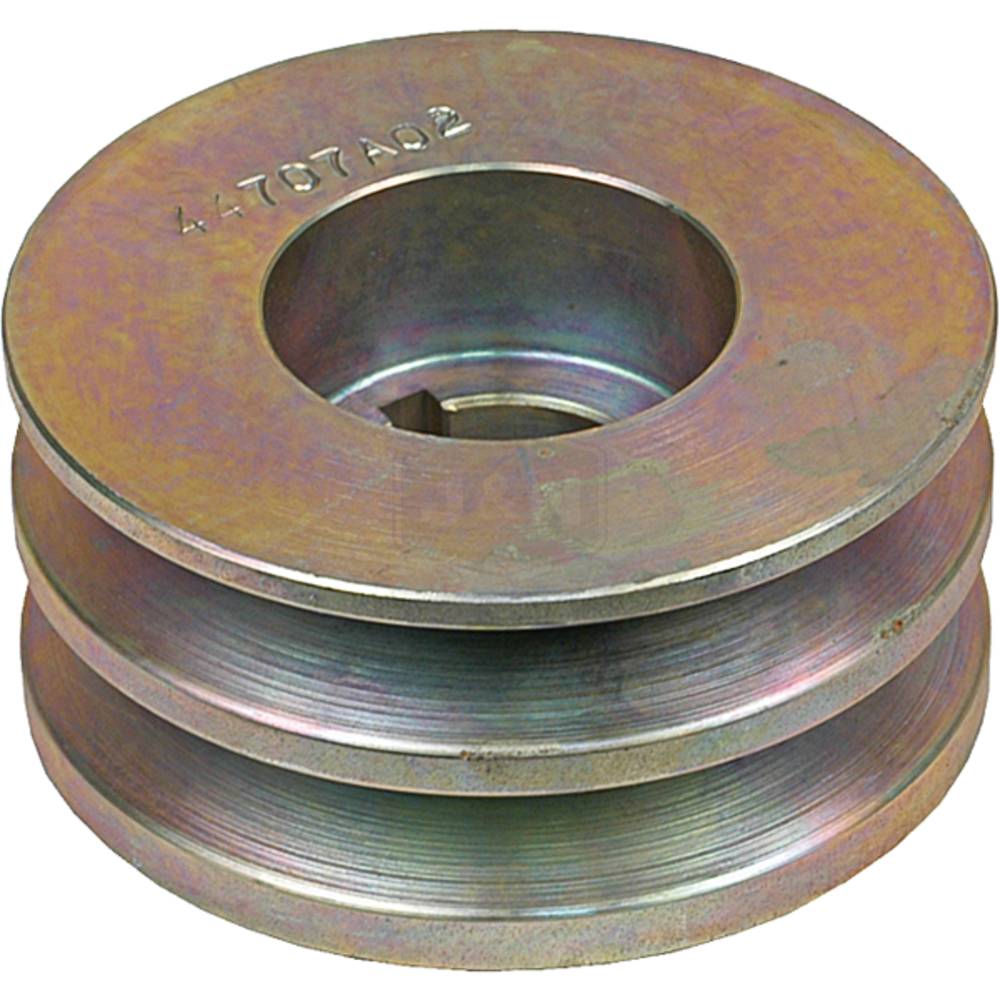

LNP-107-33-JN Leece Neville Pulley

LNP-107-33-JN Leece Neville Pulley

$163.00 CAD
$163.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Leece Neville Pulley

Tech Info:
-Arrowhead: AMO5005, PL107-33; Leece Neville: 107-33, 4944707A02; Prestolite: 107-33; Fits Volvo: M2506200
-: Machined Steel@ Use with 120-129 Flat Washer & 120-128 Lock Nut, BELT 2 WIDTH: 10, BELT WIDTH: 10, Fits Case OD: 0.579", Fits Case OD: 14.700mm, CENTER OF GROOVE TO REAR: 0.409", CENTER OF GROOVE TO REAR: 10.400mm, CENTER OF GROOVE TO REAR 2: 0.429", CENTER OF GROOVE TO REAR 2: 10.900mm, CENTER TO CENTER GROOVE: 0.579", CENTER TO CENTER GROOVE: 14.700mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.130", NUT RECESS: 3.300mm, OD: 2.752", OD: 69.900 mm, PULLEY TYPE: Solid, THICKNESS: 32.500 mm

Replaces Part Number(s): LNP-107-33

Additional Information:

Arrowhead: AMO5005, PL107-33; Leece Neville: 107-33, 4944707A02; Prestolite: 107-33; Volvo: M2506200, : Machined Steel@ Use with 120-129 Flat Washer & 120-128 Lock Nut, BELT 2 WIDTH: 10, BELT WIDTH: 10, CASE OD: 0.579", CASE OD: 14.700mm, CENTER OF GROOVE TO REAR: 0.409", CENTER OF GROOVE TO REAR: 10.400mm, CENTER OF GROOVE TO REAR 2: 0.429", CENTER OF GROOVE TO REAR 2: 10.900mm, CENTER TO CENTER GROOVE: 0.579", CENTER TO CENTER GROOVE: 14.700mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.130", NUT RECESS: 3.300mm, OD: 2.752", OD: 69.900 mm, PULLEY TYPE: Solid, THICKNESS: 32.500 mm

Reference Numbers:

LNP-107-33
