117-1192 Fits Toro Z4200 Z4202 Timecutter Spindle Shaft
117-1192 Fits Toro Z4200 Z4202 Timecutter Spindle Shaft
Regular price
$48.00 CAD
Regular price
Sale price
$48.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

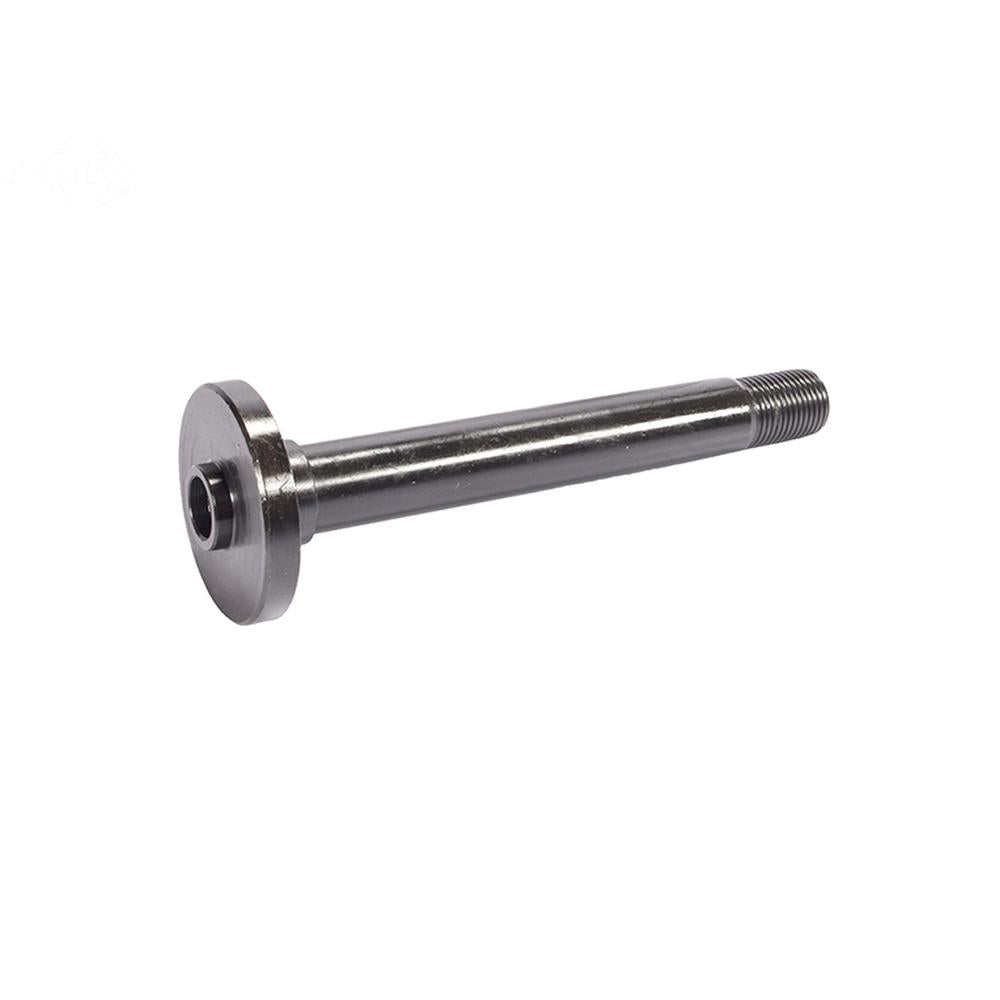

One New Aftermarket Replacement Spindle Shaft Fits Toro TimeCutter Zero-Turn Mowers
This aftermarket replacement spindle shaft fits into the mandrel/spindle housing assembly on Fits Toro TimeCutter zero-turn mowers. The short shaft links the cutting blade and deck pulley, allowing them to rotate together. It is a direct replacement for the original Fits Toro short-shaft design used across the Z4200 and Z5000 series decks. Part number 110-6866 is the superseded predecessor to 117-1192.
Specifications
- Short shaft design
- Overall height: 5-3/8 in. (shaft only); spindle assembly measures 5-1/4 in. H, 6-3/8 in. OD, 1/2 in. I.D. bore
Compatible Models
Fits Toro TimeCutter Series (model numbers 74330-74399 and 74820): Z4200, Z4202, Z4220, Z4235, Z5000, Z5020, Z5030, Z5035, Z5040, Z5060, ZX5000
Hayter: RZT420H
Replaces Part Number(s):
117-1192, 110-6866
Aftermarket Interchange Numbers
Fits Stens 285-993, Rotary 14122, MaxPower 330242B, 8TEN 810-CSP2283N
New aftermarket replacement part - not remanufactured, not used.
