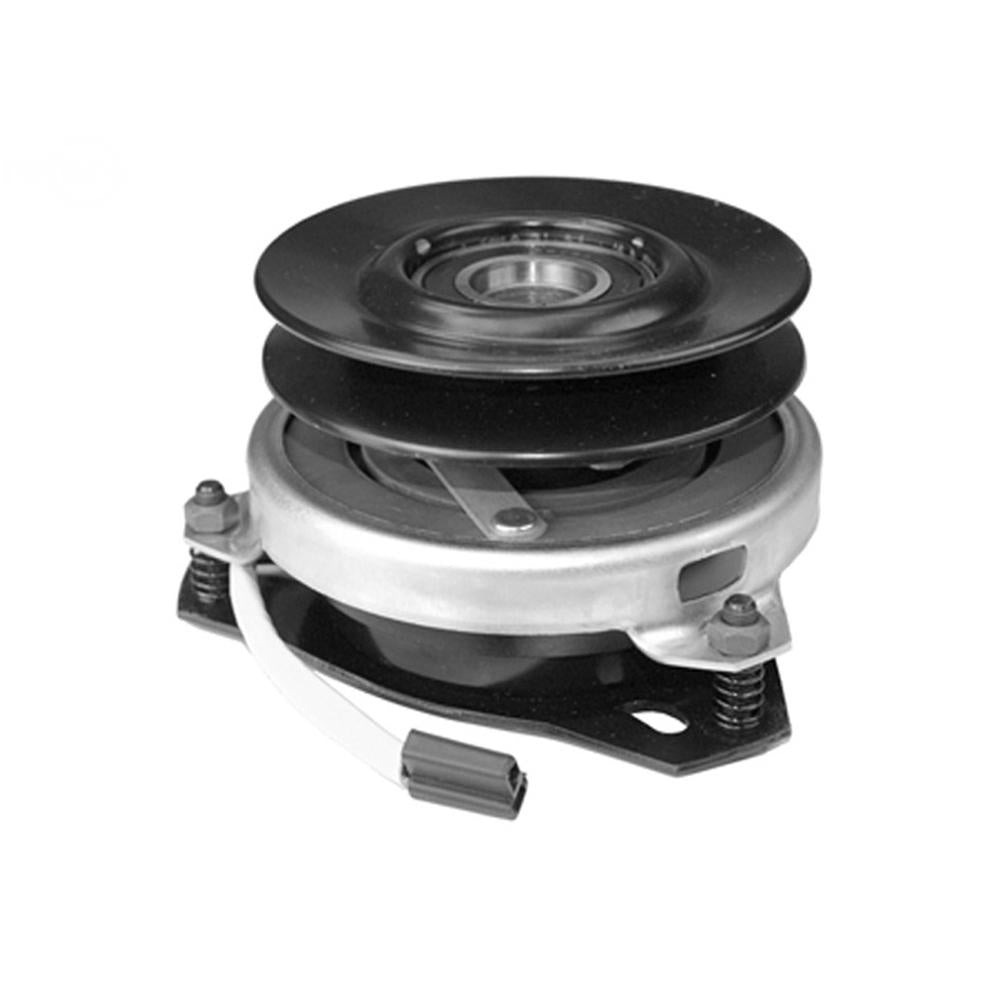

11829 MTD PTO Electric clutch MTD 717-1709 & 917-1709, Warner 5215-130

One New Aftermarket Replacement Electric PTO Clutch for MTD, Fits Cub Cadet, and Troy-Bilt Lawn and Garden Tractors

This electric power take-off (PTO) clutch mounts on the engine crankshaft and transmits engine power to the mower deck blades on engagement. It is a direct aftermarket replacement for the Warner 5215-130 / MTD 717-1709 and 917-1709 clutch assembly, designed for residential and light commercial use on garden and lawn tractors.

Specifications

• Crankshaft I.D.: 1 in.
• Pulley O.D.: 5-3/8 in. (5.375 in.)
• Height: 4 in.
• Belt Width: 1/2 in.
• Rotation Direction: Counter-clockwise (CCW)
• Torque Rating: 105 ft-lbs.

Compatible Models

Fits Cub Cadet: 1212, 1529

MTD / White Outdoor / Bolens / Huskee: GT2150, GT2550 Garden Tractors

Troy-Bilt: 14AV809H063, 14AW809H063, 14AY809P063, 14BV809H063, GT-2246 (14AB809H063), GT-2554 (14AR809K063), GTX 2446 (14AZ809H063), GTX 2654 (14AZ809K063)

Yard-Man: 14AR814K401, 14AU804H401, 14AV804P401, 14AW804H401, 14AW804P401, 14AW814H401, 14AZ804P401, 14CU804H401

Yard Machines: 14AU807P352

Ranch King: 14AT818H205, 14AV818P205

Lawn Chief: 13AR608G022

Huskee Lawn Tractor: 13AI609H131

Huskee Garden Tractor: 14AR807P131, 14AR808K131, 14AV807P131, 14AZ808K131

Sears / Fits Craftsman: Models using 717-1709 or 917-1709

Statesman: 14AV808P016

Replaces Part Number(s):

MTD 717-1709, MTD 7171709, MTD 917-1709, MTD 9171709, Warner 5215-130

Aftermarket Interchange Numbers

Oregon 33-126-1, Fits Stens 255-543, Rotary 11829, Prime Line 7-06063, Xtreme X0166, X0174, X0174-K, Eurogarden 230-4077, 230-2039, Simplicity / Snapper 1706692SM, Sunbelt B1EC32, NHC 274-2475

New aftermarket replacement part - not remanufactured, not used.
