Fits John Deere M110978 Transmission Drive Belt for LX178 LX186 LX188 LX176 Mowe

Name: Fits John Deere M110978 Transmission Drive Belt for LX178 LX186 LX188 LX176 Mowe
SKU: LAB40-0232
Price: 29.0 USD
Availability: InStock

Fits John Deere M110978 Transmission Drive Belt for LX178 LX186 LX188 LX176 Mowe

$29.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

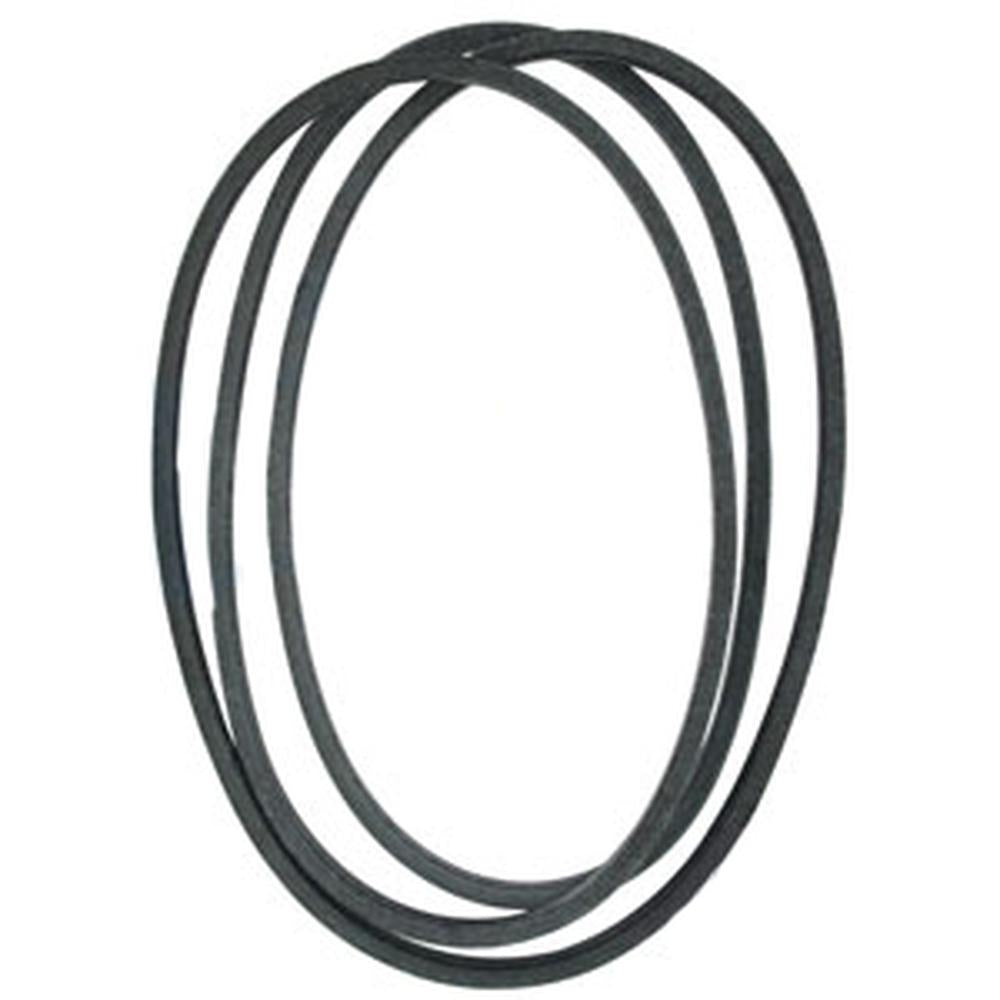

One New Aftermarket Replacement Transmission Drive Belt Fits John Deere (Fits JD) LX Series Lawn Tractors

This aftermarket replacement transmission drive belt (also called a traction drive belt or powertrain drive belt) runs from the engine to the transmission, delivering power to propel the wheels on Fits John Deere LX Series lawn tractors. Built with wrapped Made With Aramid cord construction for superior strength, heat resistance, and durability under heavy stop-and-start mowing loads. Replaces OEM part number M110978 and cross-references to Fits Honda, Snapper, Country Clipper, and other brands.

Specifications

Length: 102"
Width: 1/2"
Thickness: 0.331"
Type: Wrapped V-Belt
Material: Made With Aramid Cord
Belt Section: HA

Compatible Models

Fits John Deere LX Series Lawn Tractors: LX172, LX173, LX176, LX178, LX186, LX188

Note: Serial number restrictions apply to some LX172 and LX173 variants. Verify your serial number against the PC2317 parts catalog before ordering.

Fits Honda Lawn Tractors: HA4118 H38A (MZCH), HA4120 H48A (MZCJ)

Country Clipper / Bunton: 2204M, 2204MT, 2304M, 2304MT, 2304KA, 2304KAT, 2504M, 2504MT, ZETON, ZETON BRAT, Z 1805KV (80819), Z 1805KV (7080819), Z 2205KV (80920), Z 2205KV (7080920), Z 4202M (80190), Z 4202M (7080190), Z 4802M (80191), Z 4802M (7080191), Z 4804M (80713), Z 4804M (7080713), ZU 4804 M (80481)

Snapper / Bunton Zero-Turn: 07-01MC01, 07-01MC02, 07-01MC03, Fits Boss SR1200, HYDRO DRIVE (52" Deck), 79380

Replaces Part Number(s):

M110978, D3635, 7079777YP, 7079777, PL4740, 109956, 22431-V09-A01

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

ZETON BRAT, 2304MT, 2304M, Z 1805KV (7080819), Z 4804M (7080713), Z 1805KV (80819), BOSS SR1200, 07-01MC01, 07-01MC02, 2504MT, LX178, Z 2205KV (7080920), 2504M, Z 4804M (80713), 07-01MC03, 2204MT, HA4120 H48A (MZCJ), LX186, HA4118 H38A (MZCH), ZU 4804 M (80481), Z 4802M (80191), LX176, ZETON, LX188, 2304KAT, 2204M, Z 4202M (7080190), HYDRO DRIVE (52" Deck), Z 2205KV (80920), 79380, Z 4802M (7080191), 2304KA, Z 4202M (80190)
