Deck Rebuild Kit Fits Craftsman 42" Lawn Mower Decks

Name: Deck Rebuild Kit Fits Craftsman 42" Lawn Mower Decks
SKU: KT-LAE40-0003
Price: 189.0 USD
Availability: InStock

Deck Rebuild Kit Fits Craftsman 42" Lawn Mower Decks

$189.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Deck Rebuild Kit

Fits Craftsman 42" Lawn Mower Decks

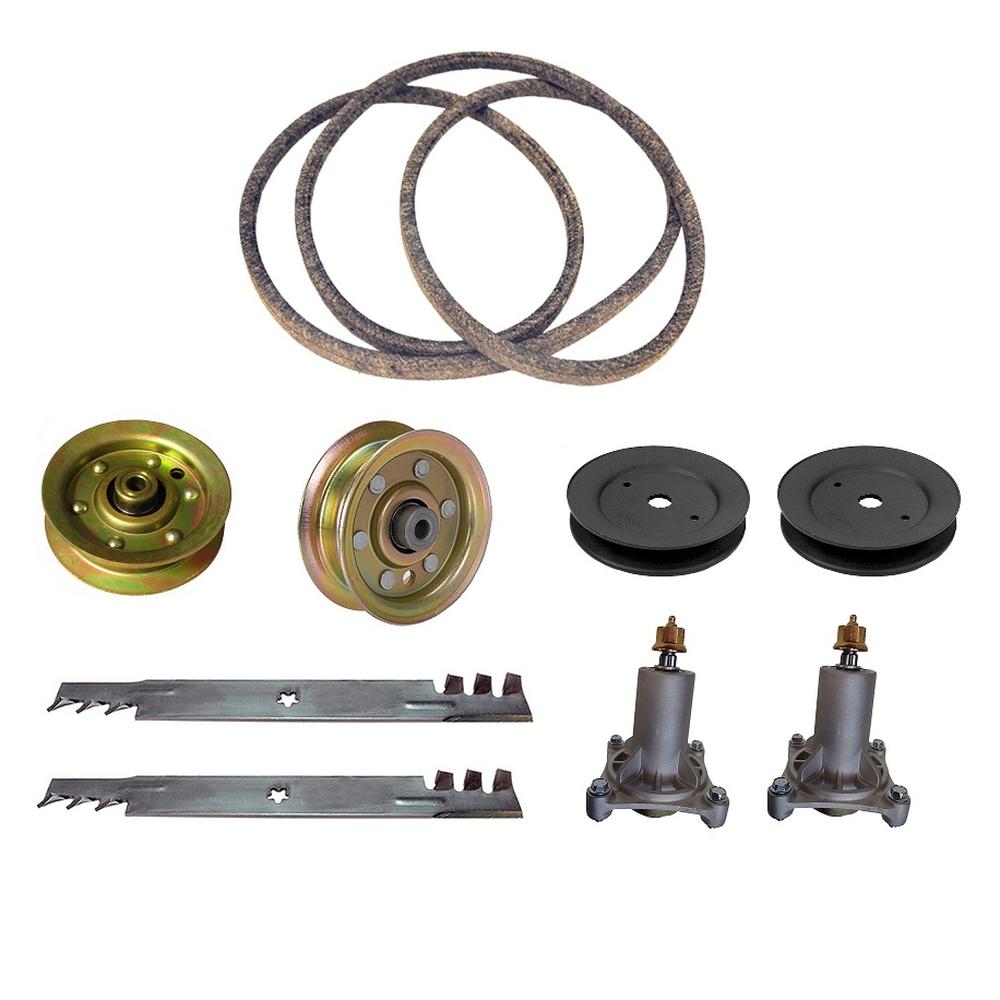

Kit Contains:

(2) Spindles

(2) Toothed Mulching Blades

(2) Spindle Pulleys

(2) Flat Idler Pulleys

(1) Deck Belt

Spindle Assembly -
4-Bolt Long Housing
5-Point Star Blade Mount
Threaded Mounting Holes for Easy Installation
Shaft is Splined for Spline-Type Pulleys
Includes Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts
Fits models with 46", 48" and 54" Decks

Drive Pulley -
Outer Diameter: 5-1/6"
Inner Diameter: 9/16"
Fits 42" Deck models
Steel

Toothed Mulching Blade -
Application: Mulching
Center Hole: 5 point star
Length: 21"
Thickness: 0.187
Width: 2-1/2"

Flat Idler Pulley -
Flat Idler w/ Flanges
Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375'' (3/8") ID

Flat Idler Pulley -
Flat Idler w/ Flanges
Steel
Fits 42" Decks, 2000 & Later
3.06" OD
3/8" ID

Deck Belt -
Color: Brown
Length: 95-1/2"
Thickness: 0.374"
Type: Wrapped
Width: 1/2"

Replaces Part Numbers:
127843, 131323, 133128, 134149, 131494, 173438, 187292, 192870, 532187290,
127843, 138498, 138971, 917127843, 21547026, 21547027, 21547082, 21547188, 532144959, 24690

Available Individually, In Other Multiples, and Various Kits - Please See Our Other Listings!

Models This Part Fits:

42" Lawn Mower Decks

Additional Information:

(1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888 (1) Deck Belt Length: 95-1/2" Width: 1/2" Made with Aramid Cord Material Replaces Part Numbers: 21547026, 21547027, 21547082, 21547188, 144959, 144959D (2) Drive Pulley Inner Diameter: 5/8" Splined Outer Diameter: 5" Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171 (2) Spindle Assembly Overall Height: 7" 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes Replaces Part Numbers: 21546238, 21546299, 21549012, 187292, 532187290 (2) Toothed Mulching Blades Length: 21" Width: 2-1/2" Type: Toothed Center Hole: 5-Point Star Replaces Part Numbers: 21546095, 532138971, 127843, 134149, 138498, 138971

Reference Numbers:

104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 21546127, 177865, 153535MS, 153535CS, 21546238, 21546299, 21549012, 187292, 532187290, 539-112057, 192870, 532187281, 532187292, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 587 12 54-01, 532 18 72-92, 587 82 03-01, 532 19 28-70, 532192870, 82-026, 82026, 21546095, 532138971, 127843, 134149, 138498, 138971, 138971X431, 532134149, 532139775, 594892701, 594893101, 917139775P, 917532139775, HU22004, 131323, 133128, 24652, 113312X, 521981601, 532127843, 532138498, 532188971, 777134149, OEM139775, 777 13 41-49, PP24001, PP24003, 490-110-0066, 490-110-0092, 139775, 138571, 95-900, 95900, 96-900, 96900, 104360X, 131494, 131464, 173438, 9585464, 532173438, 532 17 34-38, 532131494, 155191, 918131494, 532 13 14-94, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 21547026, 21547027, 21547082, 21547188, 144959, 144959D, PP12012, 24690, 531300766, 532144959, 532 144959, 532 14 49-59, 532 13 84-98, 532138498, 531 30 07-66, 587270101, 490-500-0051, 690-500-0008, 531307218, 75-197, 75197, 175-197, 175197, 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 21546127, 177865, 153535MS, 153535CS, 21546238, 21546299, 21549012, 187292, 532187290, 539-112057, 192870, 532187281, 532187292, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 587 12 54-01, 532 18 72-92, 587 82 03-01, 532 19 28-70, 532192870, 82-026, 82026, 21546095, 532138971, 127843, 134149, 138498, 138971, 138971X431, 532134149, 532139775, 594892701, 594893101, 917139775P, 917532139775, HU22004, 131323, 133128, 24652, 113312X, 521981601, 532127843, 532138498, 532188971, 777134149, OEM139775, 777 13 41-49, PP24001, PP24003, 490-110-0066, 490-110-0092, 139775, 138571, 95-900, 95900, 96-900, 96900
