KT-FRS20-0002 - RH Spindle Kit

KT-FRS20-0002 - RH Spindle Kit

$160.00 CAD
$160.00 CAD
Sale Sold out
Shipping calculated at checkout.
Aftermarket KT-FRS20-0002 - RH Spindle Kit

Makes:
 -Fits

Models:
 -

Replaces Part Number(s):
 - KT-FRS20-0002

Models This Part Fits:

2600, 3900, 2000, 2610, 3600, 3610, 3000, 4100

Additional Information:

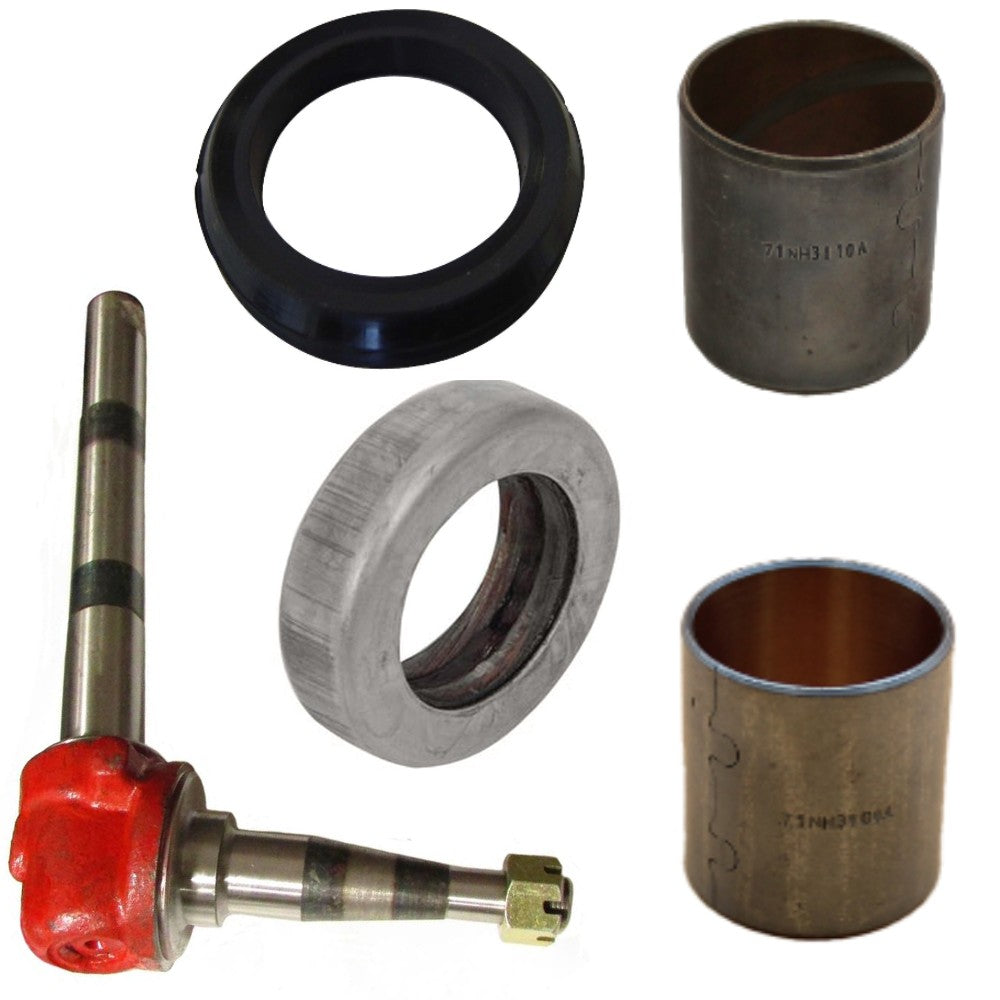

(1) Right Hand Spindle 11.687" long 1.25" upper diameter 1.340" lower diameter 1.25" inner stub diameter 0.750" outer stub diameter Keyway is 0.235" Width x 0.914" Length Replaces Part Numbers: 81816581, 81874994, C5NN3105U, C7NN3105K, F2NN3105AA (1) Thrust Bearing Bearing Type Spindle Bearing Inner Diameter 1.350" ID Type Round Outer Diameter 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 83910196, C0NN3123B (1) Front Spindle Bushing 4 used per tractor 1.255" inside diameter 1.378" outside diameter 1.498" long Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109 (1) Spindle Bushing Inner Diameter: 1.350" Material Steel Outer Diameter: 1.480" Width 1.500" Replaces Part Numbers: 81717392, 83928345, 947E3110B, 957E3110B, NCA3110A (1) Spindle Seal 33mm Inner Diameter 44mm Outer Diameter Replaces Part Number: 81802812, 8N3528, C5NN3125A, 9N3528

Reference Numbers:

81816581, 81874994, C5NN3105U, C7NN3105K, F2NN3105AA
