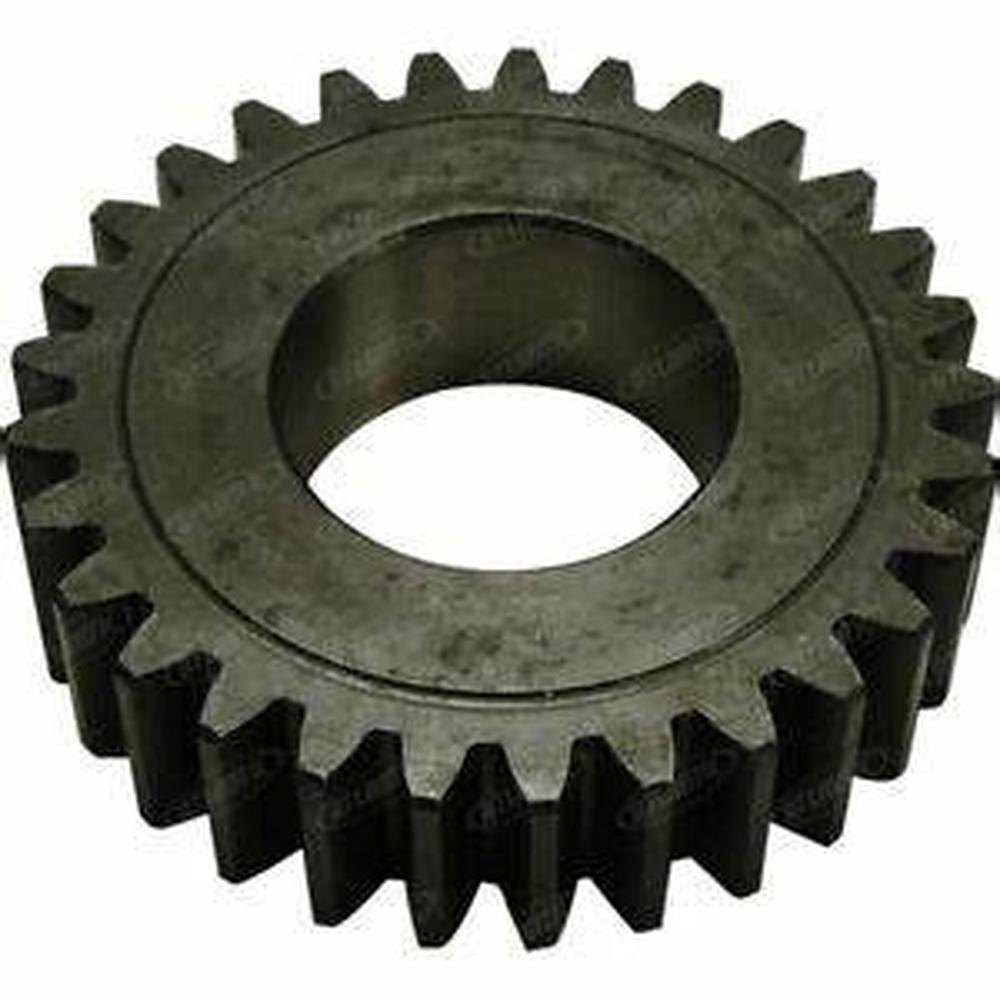

One New Aftermarket Replacement Planetary Pinion Gear for Case Backhoe-Loaders (4WD Front Axle)
This planetary pinion gear is a component of the 4WD front axle planetary assembly on Case backhoe-loaders and forklifts. It seats within the front axle planetary carrier and transmits torque through the axle's final drive. This part measures 29 teeth and 26mm thick. Part number K395110 has been superseded by Case part number 9968076.
Specifications
- Teeth: 29
- Thickness: 26mm
- Weight: 2.13 lbs.
Compatible Models
Case / Case IH Loader Backhoe (4WD only): 480F, 480F LL, 580K (s/n JJG0020000 and up), 580SK, 580 Super K, 590, 590 Turbo, 590L, 590SL, 590SL Series II, 590SM, 590SM Series II
Case / Case IH Forklift: 584E, 585E, 586E
David Brown: 1394, 1494, 1594
Replaces Part Number(s):
K395110, K395110-PVE
Aftermarket Interchange Numbers
9968076, 09968076, CAR115644, CAR120836, 3523074M1, 83957889, N13513, D150218, UCAR07733
New aftermarket replacement part - not remanufactured, not used.
