K1022753A REPLACEMENT HYD MOTOR 460T SKID STEER Fits DAEWOO
K1022753A REPLACEMENT HYD MOTOR 460T SKID STEER Fits DAEWOO
Regular price
$3,140.00 CAD
Regular price
Sale price
$3,140.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

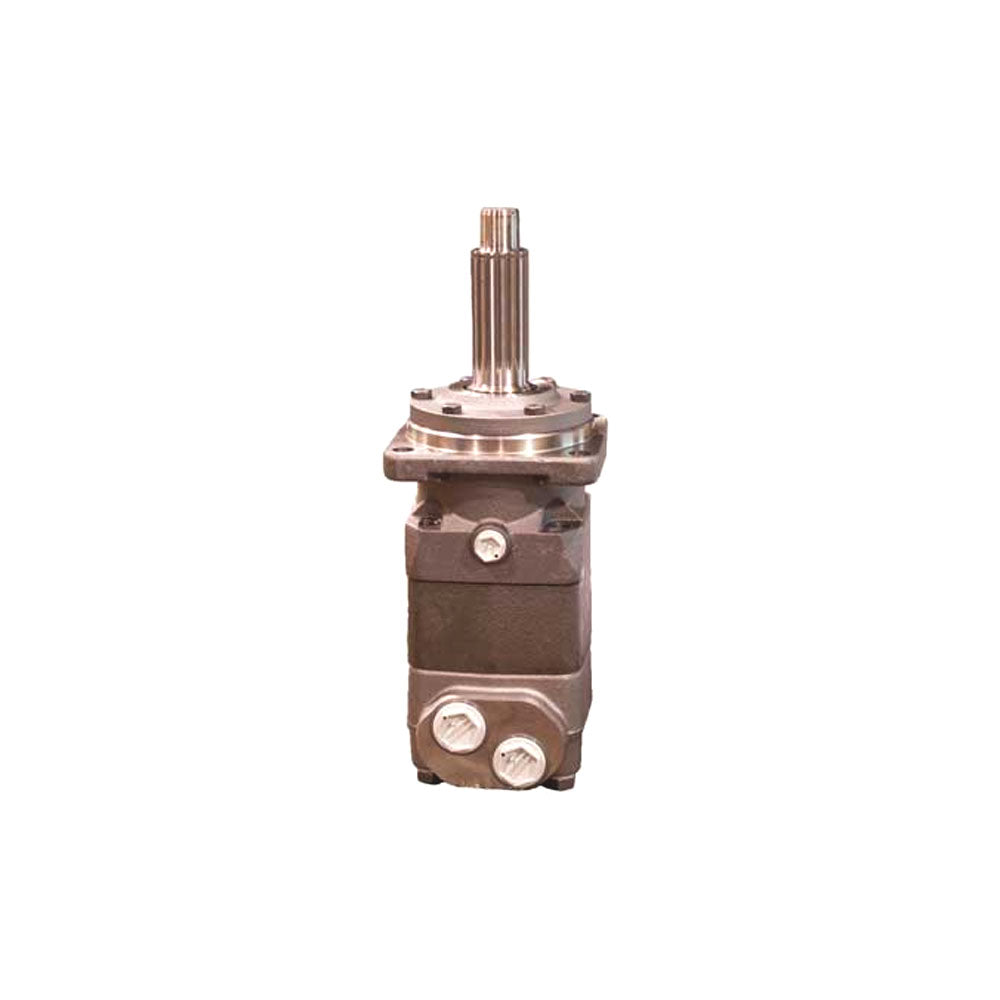

One New Aftermarket Replacement Hydraulic Drive Motor for Daewoo (Doosan) Skid Steer Loaders
This hydraulic drive motor is a direct aftermarket replacement for Daewoo (Doosan) OEM part K1022753A. It is a low-speed, high-torque orbital hydraulic motor used in the drive system of Daewoo skid steer loaders, providing the rotary power needed for ground propulsion. The motor cross-references to the Danfoss/Sauer-Danfoss OMT 500 VHD platform (part number 151B2270).
Specifications
- Type: Low-speed, high-torque orbital hydraulic motor
- Displacement: 500 ml/r (500 cc)
- Flange: 4-bolt square flange, 125mm pilot
- Shaft: 38.1mm splined shaft, 17 tooth DP12/24
- Oil port: G 3/4 manifold mount, 4-M10; drain G 1/4
- Approximate weight: 27 kg
Compatible Models
Daewoo / Doosan Skid Steer Loaders: 440, 440 Plus, 450, 450 Plus, 460, 460 Plus (DSL902)
Replaces Part Number(s):
K1022753A
Aftermarket Interchange Numbers
Danfoss / Sauer-Danfoss OMT 500 VHD 151B2270
New aftermarket replacement part - not remanufactured, not used.
