JLM67041P Universal Fit Tapered Roller Bearing 2.3037"
JLM67041P Universal Fit Tapered Roller Bearing 2.3037"
Couldn't load pickup availability

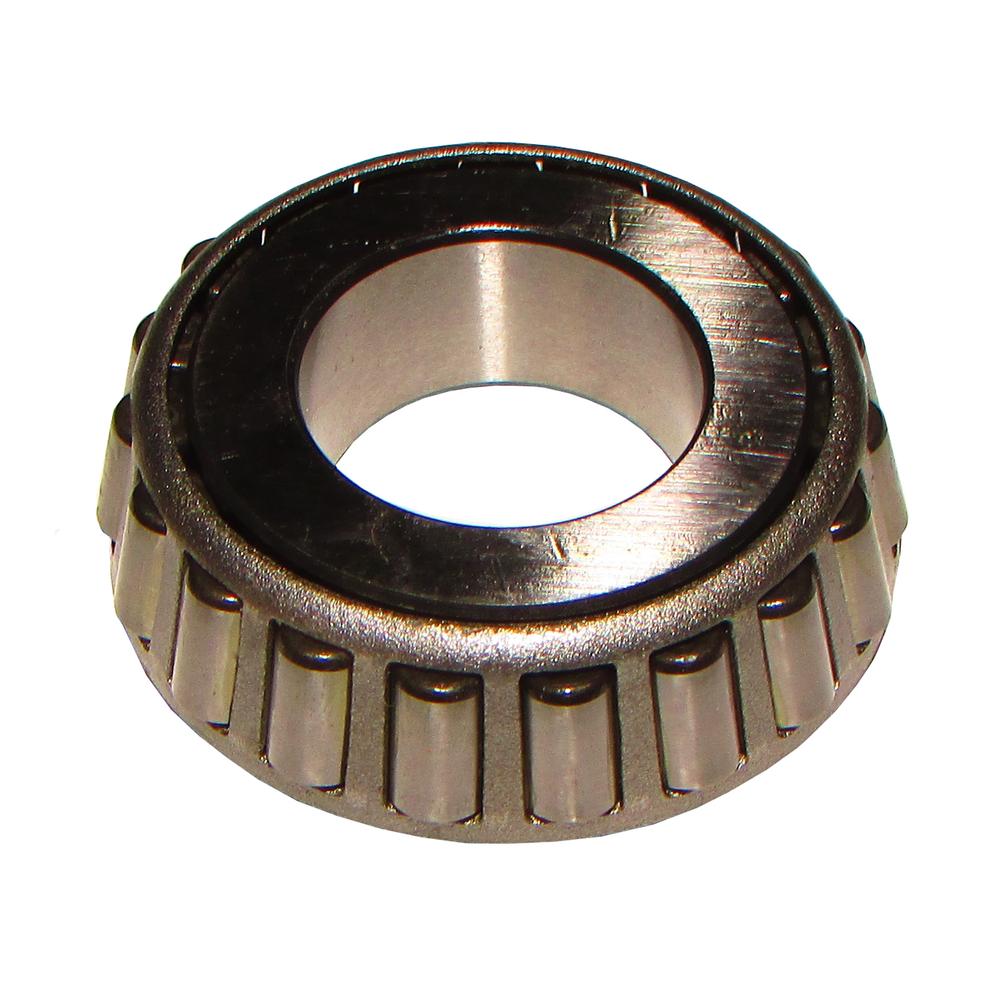

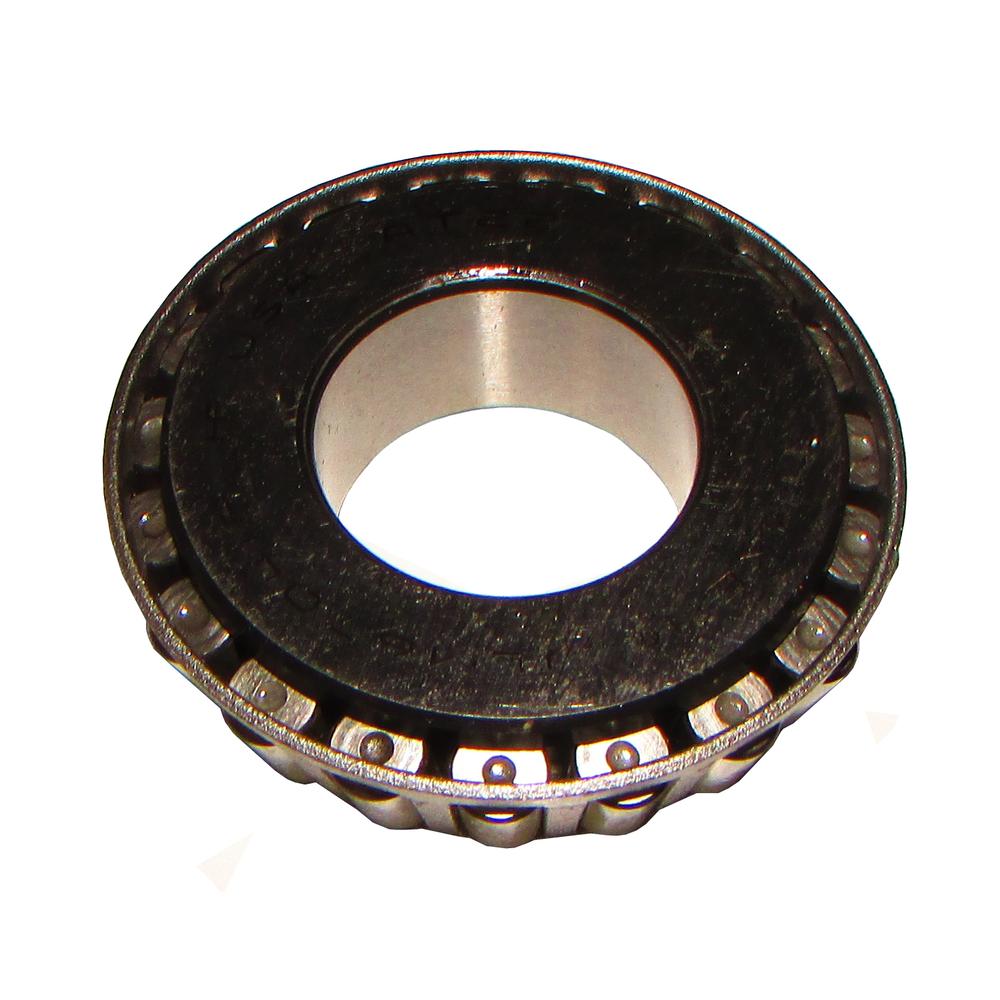

One New Aftermarket Replacement Tapered Roller Bearing Cone - Universal Fit JLM67041P
This tapered roller bearing cone (single cone) is a direct replacement for OEM part number JLM67041P. Designed for use in trailer hub wheel-end assemblies, it seats on the spindle and works in conjunction with the LM67010 tapered roller bearing cup. The puller groove bore design simplifies removal during service. This is a universal-fit bearing used across a wide range of trailer and agricultural hub applications wherever the JLM67041P cone specification is required.
Specifications
- Type: Tapered Roller Bearing - Single Cone
- Bore (ID): 1.0005 in (25.413 mm)
- Cone Width: 0.6390 in (16.231 mm)
- Bearing Width: 15.392 mm
- Outer Diameter: 2.3037 in
- Bore Style: Straight Bore with Puller Groove
- Tolerance: Standard
- Material: Steel
- Measurement System: Inch
- Dynamic Load Rating: 10,500 lb
- Static Load Rating: 10,000 lb
- Mating Cup: LM67010
Compatible Applications
Universal fit bearing cone for trailer hub and agricultural wheel-end applications requiring the JLM67041P specification. Verify spindle diameter and hub bore before ordering.
Replaces Part Number(s):
JLM67041P
Aftermarket Interchange Numbers
Timken JLM67041P, SKF JLM67041P, Fits Ford E6EP7F460A2A
New aftermarket replacement part - not remanufactured, not used.
