JHM720210 Bearing Cup Fits NTN

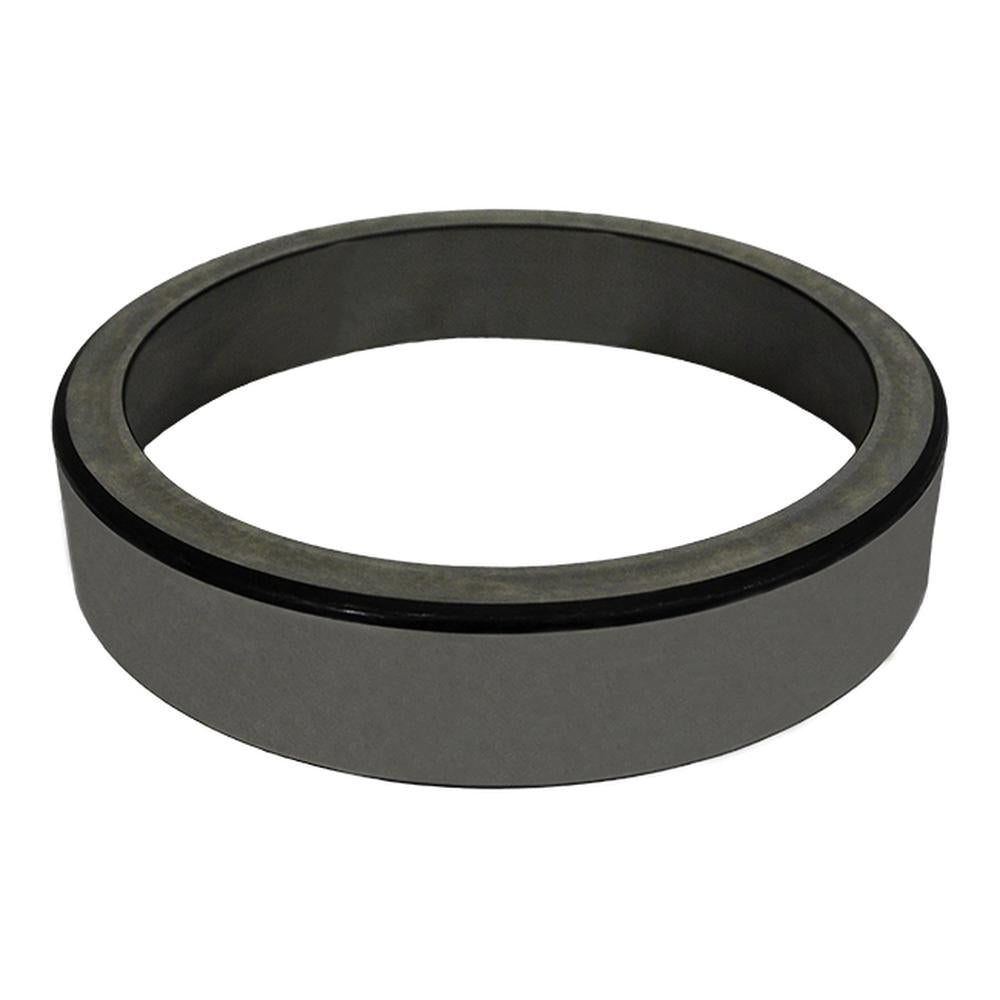

One New Aftermarket Replacement JHM720210 Tapered Roller Bearing Cup - NTN / Timken Compatible

This JHM720210 is a single tapered roller bearing cup (outer ring/outer raceway) from the JHM Series metric tapered roller bearing family. The cup pairs with the JHM720249 cone (inner ring assembly) to form a complete tapered roller bearing set capable of handling combined radial and axial (thrust) loads. Tapered roller bearing cups of this type are widely used in wheel hubs, axle assemblies, transmissions, differentials, and gearboxes found in construction machinery, agricultural equipment, and industrial applications.

Specifications

• Type: Single Tapered Roller Bearing Cup (Outer Ring)
• Series: JHM Series - Metric
• Outside Diameter: 160 mm (6.299 in)
• Inside Diameter (large end): 133.44 mm
• Cup Width: 32 mm (1.260 in)
• Cup Radius: 0.100 in
• Material: Fits Case-carburized / heat-treated alloy steel
• Mating Cone: JHM720249

Compatible Applications

This bearing cup is a standard metric industrial bearing used across a broad range of construction, agricultural, and heavy-duty equipment applications wherever a JHM720210 bearing cup is specified. Verify your application's housing bore diameter and confirm the mating cone number (JHM720249) before ordering.

Replaces Part Number(s):

JHM720210

Aftermarket Interchange Numbers

NTN JHM720210, Timken JHM720210, National JHM720210, SET1169 (cup/cone set), JHM720210-K0000 (Timken), JHM720210-N0000 (Timken assembly), ISO T4DC100, VKHB2186

New aftermarket replacement part - not remanufactured, not used.
