Final Drive Bearing Seal Kit Fits John Deere Fits JD 450 550 650H

$612.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

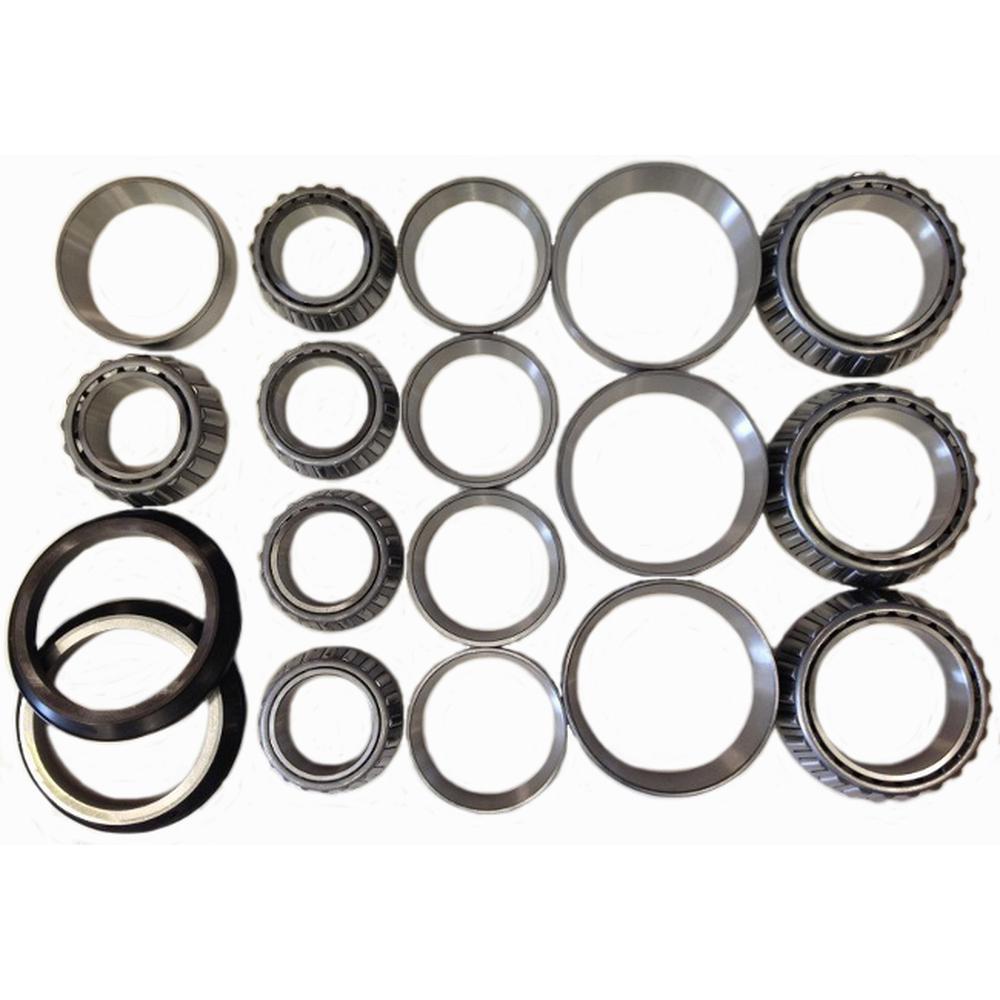

One New Aftermarket Replacement Final Drive Bearing & Seal Kit Fits John Deere models: 450H, 550H, 650H

Kits Contents:

Fits JD9021 Bearing Cup x 1
Fits JD10023 Bearing Cone x 1
Fits JD10122 Bearing Cone x 1
Fits JD10025 Bearing Cup x 1
AT72157 Seal x 1
Fits JD7378 Bearing Cone x 3
Fits JD8296 Bearing Cup x

Models This Part Fits:

550H, 650H, 450H

Additional Information:

(1) Bearing Cup: Outer Diameter: 4.813" Radius: .13" Width: 1.170" Replaces Part Numbers: JD9021, HM212011 (2) Bearing Cone: Bore: 1.375" Width: 0.720" Replaces Part Numbers: JD8194, JD9099, LM48548 (2) Bearing Cup: Outer Diameter: 2.5625" Width: 0.7100" Radius: 0.05" Replaces Part Numbers: JD8230, JD9155, JD9230, T214596, LM48510 (1) Cup Bearing: Inner Diameter: 3-35/64" Outer Diameter: 5-25/32" Width: 1-37/64" Replaces Part Numbers: JD10023, HM218248 (1) Bearing Cup: Inner Diameter: 4.92" Outer Diameter: 5.78" Width: 1.27" Replaces Part Numbers: JD10025, HM218210 (1) Cone Bearing: Bore: 2.625" Radius: 0.140" Width: 1.510" Replaces Part Numbers: JD10122, JD10094, HM212049 (1) Seal Set: 2 Steels & 2 Rubbers Inner Diameter: 4-7/8" Outer Diameter: 6-3/8" Replaces Part Numbers: JD5370, AT36096, AT18876, AT36098, AT72157 (3) Cone Bearing: Bore: 2.625" Radius: .14" Width: 1.183" Replaces Part Numbers: JD7378, JD7886, JD7989, 3984 (3) Tapered Cup Bearing: Outer Diameter: 4.438" Radius: .03" Width: .938" Replaces Part Numbers: JD8296, 3925 (1) Bearing Cup: Outer Diameter: 4.438" Radius: .13" Width: .938" Replaces Part Numbers: JD7446, 39520 (1) Taper Cone: Bore: 2.625" Radius: .14" Width: 1.188" Replaces Part Numbers: JD8130, 39590

Reference Numbers:

JD9021, HM212011, JD8194, JD9099, LM48548, JD8230, JD9155, JD9230, T214596, LM48510, JD10023, HM218248, JD10025, HM218210, JD10122, JD10094, HM212049, JD5370, AT36096, AT18876, AT36098, AT72157, JD7378, JD7886, JD7989, 3984, JD8296, 3925, JD7446, 39520, JD8130, 39590
