JD-1010KIT Final Drive Bearing Kit Fits John Deere Crawler Dozer 1010

Name: JD-1010KIT Final Drive Bearing Kit Fits John Deere Crawler Dozer 1010
SKU: JD1010KIT-E
Price: 391.0 USD
Availability: InStock

JD-1010KIT Final Drive Bearing Kit Fits John Deere Crawler Dozer 1010

$391.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

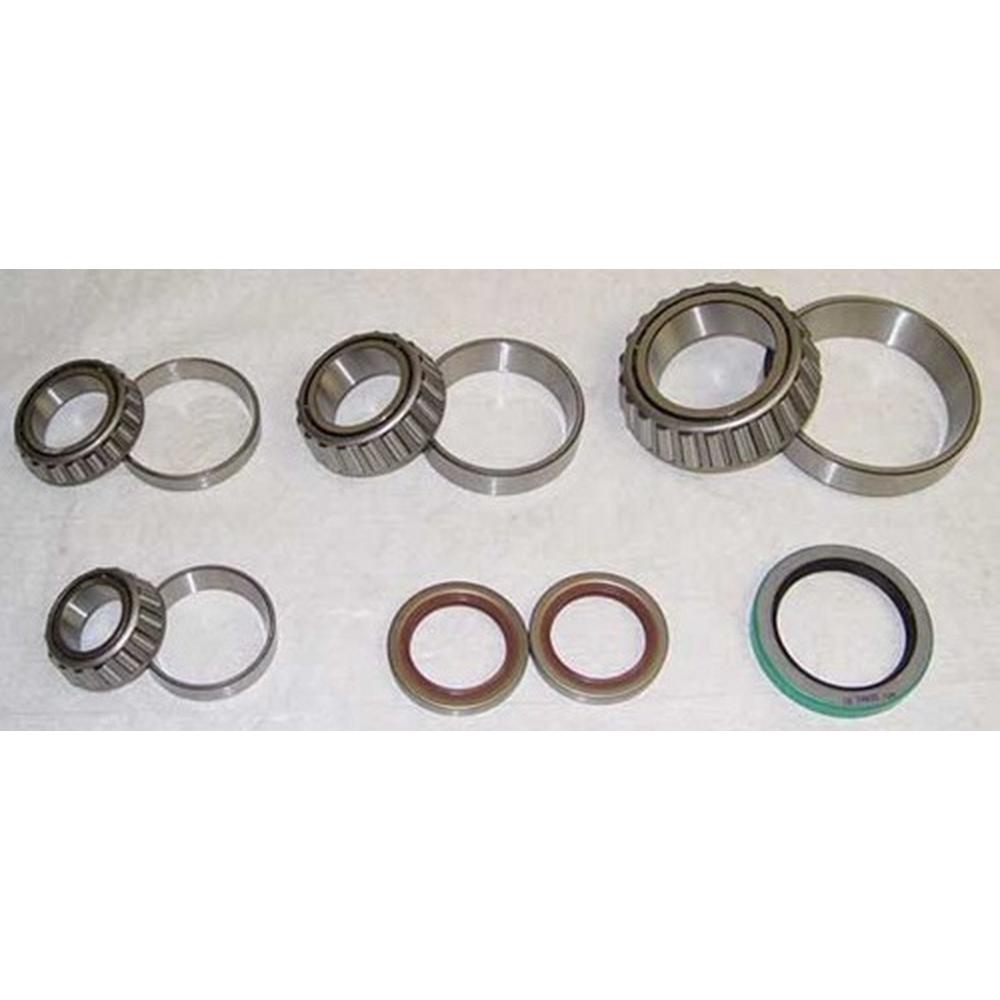

One New Replacement Fits John Deere Crawler Dozer Final Drive Bearing Kit that fits the following model: 1010 Before Serial Number <31000

Replaces Kit Number: JD-1010KIT, PV723

Models This Part Fits:

1010

Additional Information:

(1) Cup Bearing: Outer Diameter 4.330" Radius .13" Width .741" Replaces Part Numbers: JD7272, JD8315, 394ASTIM, 394AS (2) Seal: Width: 8 mm) Outer Diameter: 63.65 mm Inner Diameter: 44.45 mm Replaces Part Numbers: AT12566, AT14924, AT18555, AT36277, AT58390, 17387 (1) Seal: Inner Diameter: 63.50 mm Outer Diameter: 85.22 mm Replaces Part Numbers: AM2723, 410496 (1) Bearing Cone: Bore: 2.500" Radius: .14" Width: 1.183" Replaces Part Numbers: JD7242, 3982 (1) Bearing Cone: Bore: 1.750" Radius: .14" Width" 1" Replaces Part Numbers: JD7395, JD7590, JD8004, JD8129, JD8968, 25580 (1) Liquid Gasket: Container Size: 4 oz Replaces Part Numbers: PTX 80019 (1) Tapered Cup: Outside Diameter: 3.265" Radius: .03" Width: .750" Replaces Part Numbers: JD7418, JD8314, JD9143, 25520 (1) Bearing Cup: Outer Diameter: 73.025 mm Replaces Part Numbers: JD8220, 18520 (1) Cone Bearing: Bore: 1.250" Radius: .14" Width: .750" Replaces Part Numbers: JD8134, 15123 (1) Tapered Bearing Cup: Height: 9/16" Length: 9/16" Width: 9/16" Bearing Outer Diameter: 2.375" Replaces Part Numbers: JD7449, 15245 (1) Taper Cone: Material: Chrome Steel Outer Diameter: 73.025 mm Inner Diameter: 41.275 mm Replaces Part Numbers: JD8179, 18590

Reference Numbers:

JD7272, JD8315, 394ASTIM, 394AS, AT12566, AT14924, AT18555, AT36277, AT58390, 17387, AM2723, 410496, JD7242, 3982, JD7395, JD7590, JD8004, JD8129, JD8968, 25580, PTX 80019, JD7418, JD8314, JD9143, 25520, JD8220, 18520, JD8134, 15123, JD7449, 15245, JD8179, 18590
