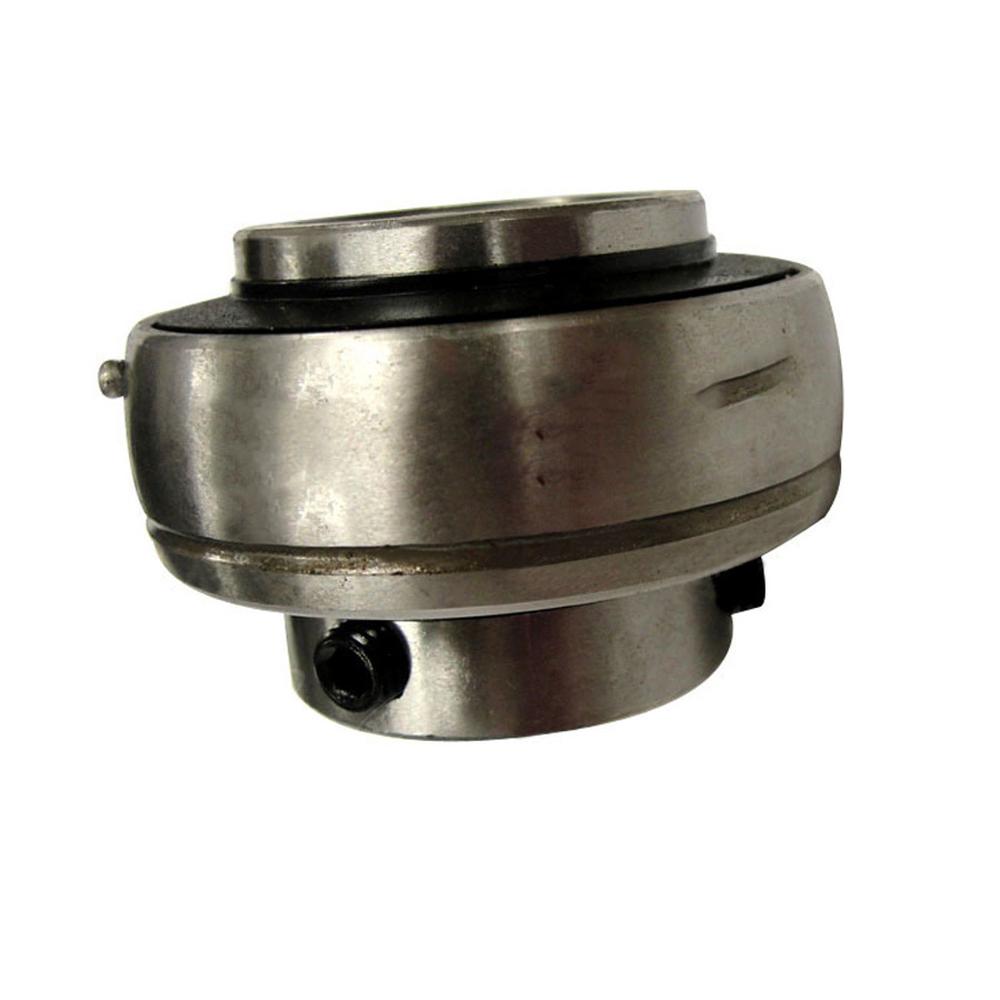

One New Aftermarket Replacement UC205-16 Insert Ball Bearing - 1" Bore, Re-lube Type
The UC205-16 is a UC200 series radial insert ball bearing with a 1-inch bore and spherical outer diameter, designed to mount inside pillow blocks, flange units, take-up units, and other standard bearing housings. The wide inner ring is secured to the shaft via two set screws, and the bearing includes a grease fitting (lube hole) for field re-lubrication. Made to C3 internal clearance standards from AISI 52100 chrome steel, it is pre-lubricated with grease and sealed for protection against contamination. Compatible with agricultural machinery, conveying equipment, construction equipment, and general industrial shaft-support applications.
Specifications
- Bore Diameter: 1 in. (25.40 mm)
- Outside Diameter: 2.0472 in. (52 mm)
- Inner Ring Width: 1.3425 in. (34.10 mm)
- Outer Ring Width: 0.6693 in. (17 mm)
- Locking Device: Two set screws on extended inner ring
- Internal Clearance: C3
- Material: AISI 52100 chrome steel
- Type: Re-lube (grease fitting / lube hole)
- Outer Surface: Spherical (self-aligning)
- Series: UC200
Compatible Housing Types
Fits standard UC200-series pillow block units, 2-bolt flanges, 3-bolt flanges, 4-bolt flanges, take-up units, and hanger units accepting a 1-inch bore insert bearing with spherical OD.
Common Applications
Agricultural machinery (tractors, harvesters, planters), conveyor and material-handling systems, construction and road-building equipment, textile machinery, fans, and food and beverage processing equipment.
Replaces Part Number(s):
UC205-16
Aftermarket Interchange Numbers
UC205-16G, UC205-100D1 (NTN), YAR205-100 (SKF), GY1100KRRB (Fafnir/Timken), VS-216 (Browning), INS-SC-100 (Dodge), UG216NL (Link-Belt), YW250-1 (Hub City), 2-1 Insert (Sealmaster), Y1100KRRB, UG216NL
New aftermarket replacement part - not remanufactured, not used.
