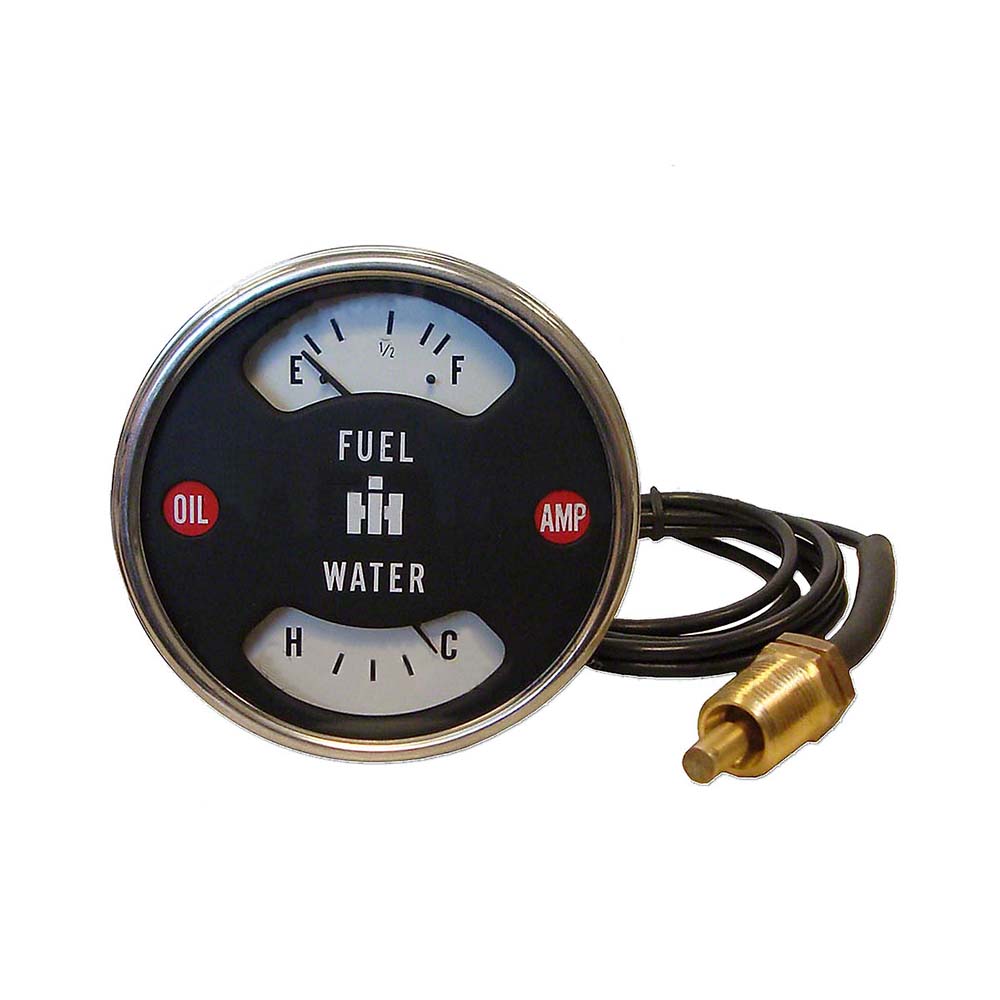

IHS795 Cluster Gauge Assembly - Fits Diesel IH and Fits International
IHS795 Cluster Gauge Assembly - Fits Diesel IH and Fits International
Regular price
$307.00 CAD
Regular price
Sale price
$307.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Cluster Gauge Assembly (Fuel & Temperature) - Fits Diesel IH 544, 656, 706, 806 & Many More!
Fits International Models: Hydro 70, Hydro 86, 404, 424, 444, 504, 544, 606, 656, 666, 686, 706, 756, 806, 826, 856, 1026, 1206, 1256, 1456, 4166, 4186, 3414
Tech Info:
-The lead thread size on this cluster gauge assembly measures 11/16" - 24 UNEF.
-4.240" housing outside diameter
-1.230" housing depth
-80" lead length
-White background
-Gauge must be grounded to work properly;you must run an extra ground wire to the sender ground.
-OHM reading 32 Full - 244 Empty.
Replaces Part Number(s): 1546480C1, 382733R93, 396380R91, 397937R92, 397939R92, 539293R91
