One New Aftermarket Replacement Power Steering Pump for Fiat (Hesston-Fiat) Series 90, 93, and 94 Tractors

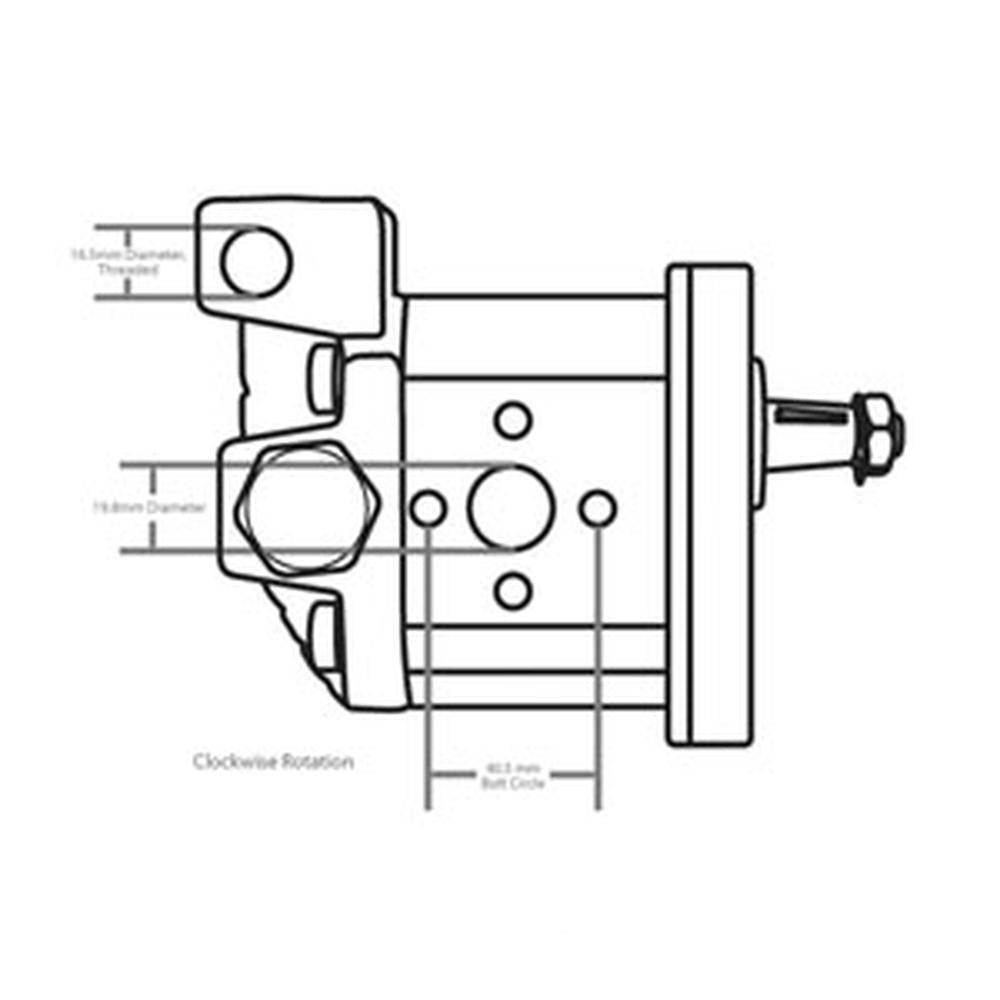

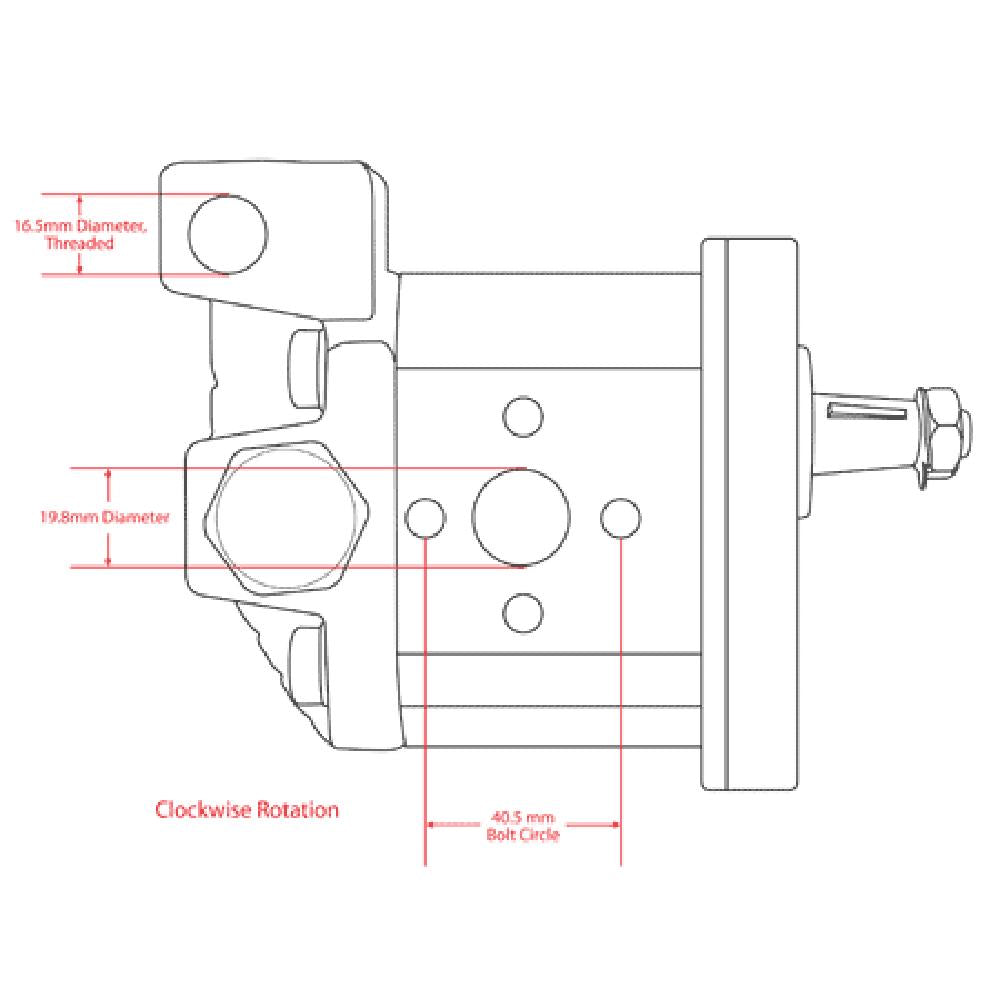

This aftermarket replacement power steering pump fits Fiat and Fits Ford/New Holland Series 90, 93, and 94 tractors. It supplies hydraulic pressure to the power steering system and is a direct replacement for OEM part number 5131170. The pump features clockwise (right-hand) rotation, a single pump style, and an external relief valve location.

Specifications

Rotation: Clockwise
Pump Style: Single
Flow Rate: approx. 31 L/min (8.19 GPM at 1000 RPM)
Displacement: 16.5 cc
Max Pressure: approx. 2900 PSI
Drive Type: Keyed
Relief Valve: External location (relief valve not included)

Compatible Models

Fiat / Hesston-Fiat Series 90: 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-90, 85-90DT, 90-90, 90-90DT, 100-90, 100-90DT, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90, 180-90DT

Fiat Series 93: 72-93, 72-93DT, 82-93, 82-93DT, 88-93, 88-93DT

Fiat Series 94: 72-94, 72-94DT, 82-94, 82-94DT, 88-94, 88-94DT

Fits Ford/New Holland: 7530, 8830, 8630

Replaces Part Number(s):

5131170, 5131170-Fiat, 5167401, 9969129

Aftermarket Interchange Numbers

1930220, S.62362, S62362, 7814, VPK1088, HYO40-0019, A66431

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

88-94DT, 160-90, 90-90, 72-93DT, 80-90, 88-93DT, 100-90, 140-90, 90-90DT, 82-94DT, 88-93, 140-90DT, 70-90, 115-90DT, 130-90DT, 65-90, 72-94, 160-90DT, 85-90, 85-90DT, 72-93, 88-94, 110-90DT, 65-90DT, 115-90, 180-90DT, 180-90, 82-93, 82-93DT, 80-90DT, 72-94DT, 70-90DT, 7530, 82-94, 130-90
