5060-4 Fits pioneer Fits John Deere male hyd tip 1/2" NPTF

One New Aftermarket Replacement Pioneer Male Hydraulic Tip (5060-4) Fits John Deere (Fits JD) Equipment

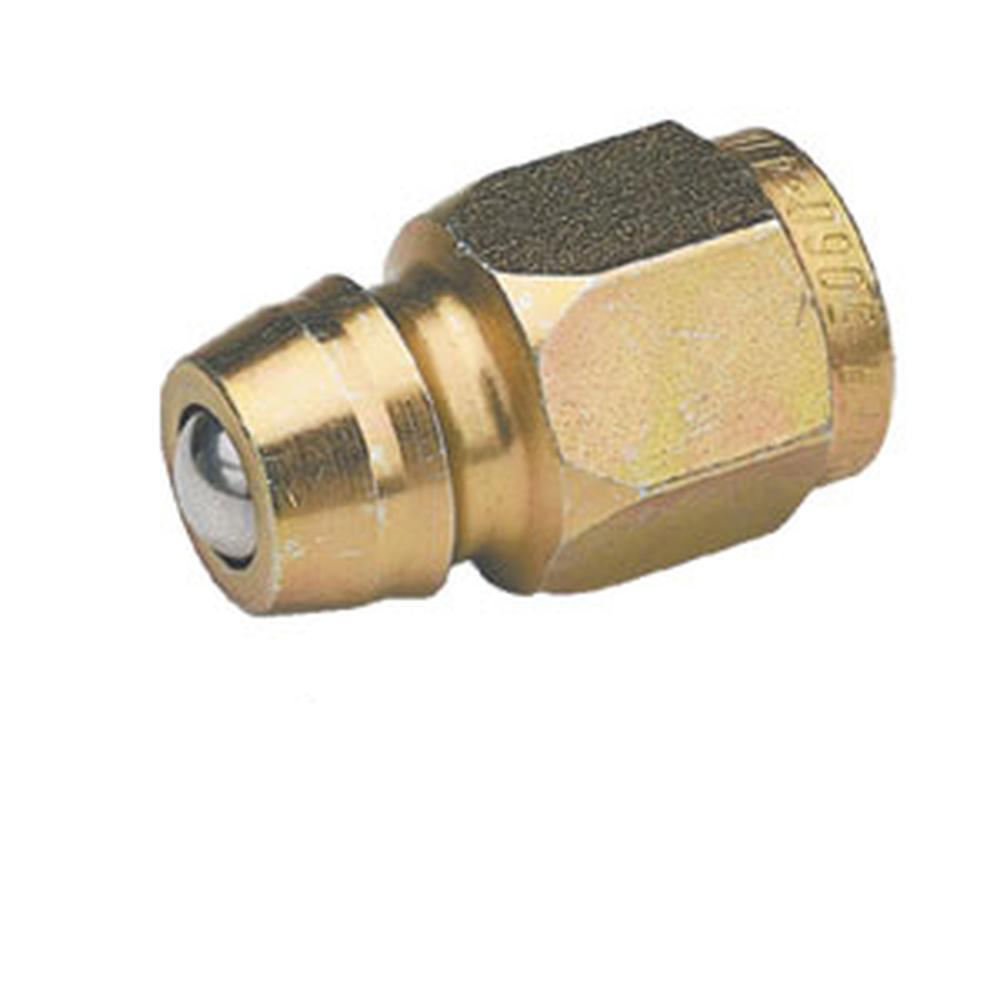

This Pioneer 5060-4 is an "Old Style" Fits John Deere male hydraulic quick coupler tip with 1/2"-14 NPTF (female pipe thread) connection. It is used on tractor hydraulic circuits to connect implements and attachments at the quick-coupler ports. The hardened locking ball grooves resist wear and protect against Brinelling for long service life.

Specifications

• Thread Size: 1/2"-14 NPTF (female pipe thread)
• Coupling Style: Old Style Fits John Deere male tip
• Material: Steel
• Weight: approx. 0.23 lb
• Height: approx. 1.1 in | Length: approx. 1.8 in

Compatible Models

Fits John Deere Planters: 71, 1700, 1705, 1710, 1715, 1720, 1725, 1725NT, 1735, 1750, 1755, 1760NT, 1765, 1765NT, 1770, 1770NT, 1775, 1775NT, 1780, 1785, 1790, 1795

Fits John Deere DB Series Planters: DB37, DB40, DB41, DB44, DB55, DB58, DB60, DB60T, DB66, DB74, DB80, DB83, DB88, DB90, DB120

Fits John Deere DR Series: DR12, DR16, DR18, DR24

Fits John Deere MaxEmerge Planters: MAXEMERGE, MAXEMERGE 2, MAXEMERGE PLUS, MAXEMERGE XP

Fits John Deere Row-Crop Tractors: 7000, 7100, 7200, 7240, 7300, 7340

Fits John Deere (RE11447 fitment - additional models): 700, 705, 2150, 2155, 2255, 2350, 2355, 2355N, 2550, 2555, 2750, 2755, 3055, 3155, 3255, 4055, 4255, 4455, 4555, 4650, 4755, 4850, 4955, 4960, 7200R, 7210R, 7215R, 7230R, 7250R

Replaces Part Number(s):

RE11447, 5060-4MB, 50604MB, 50604-Tip, 5060 4MB, 98-1-Tip, 25685060-4, HYM40-0389

Aftermarket Interchange Numbers

5060-4GV, 50604GV, A50604, A-5060-4, F340170, F34-0170, 73050604MB, 730-50604MB, BRB91806 (Fits Case), BR5060-4, BR310275, BRS11-4, BRRE11447, 800325, VP5060-4-CS

New aftermarket replacement part - not remanufactured, not used.
