T176360 Crawler Pin Fits John Deere Crawlers 700H 700J 700K
T176360 Crawler Pin Fits John Deere Crawlers 700H 700J 700K
Regular price
$281.00 CAD
Regular price
Sale price
$281.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Front C-Frame Pin Fits John Deere (Fits JD) 700 Series Crawler Dozers

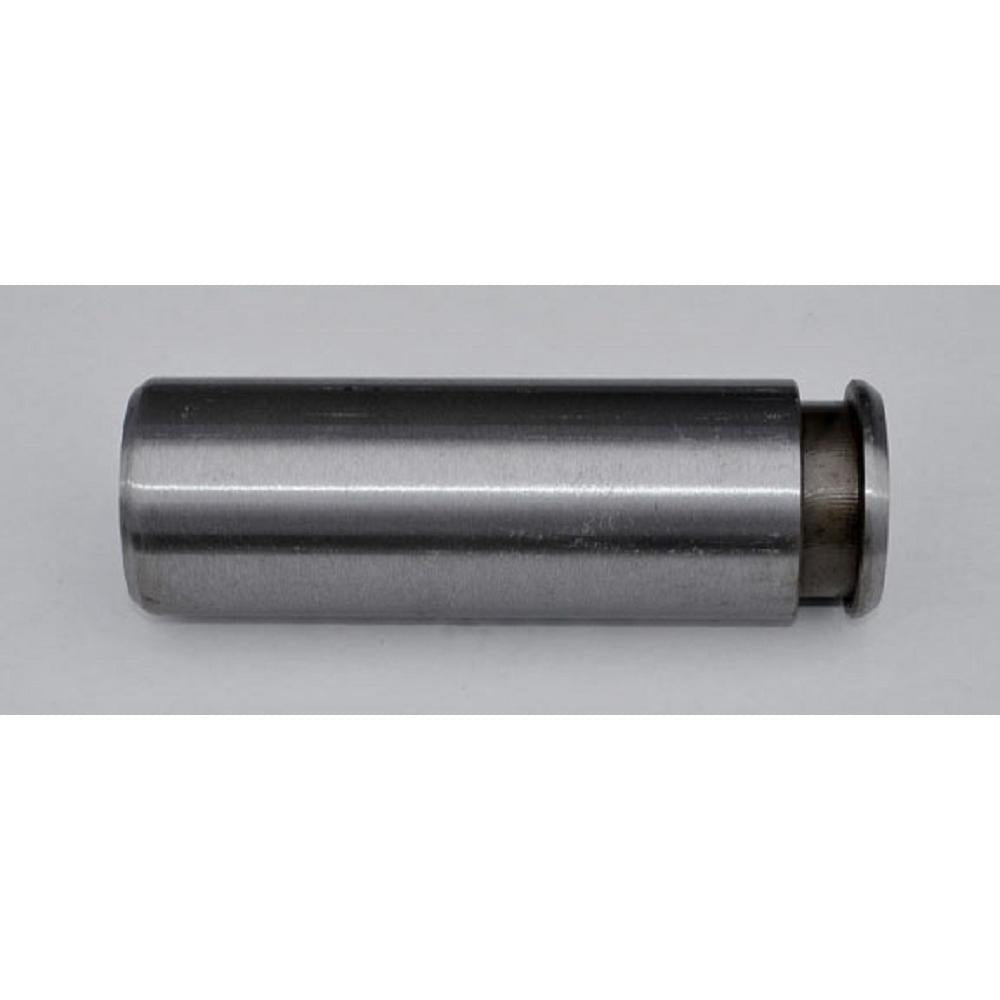

This circular groove pin serves as the front C-frame pivot pin on Fits John Deere 700H, 700J, and 700K crawler dozers. It is a critical dozer blade linkage component that secures the C-frame to the dozer frame, enabling proper blade articulation and control during grading and earthmoving operations.
Specifications
- Pin Type: Circular Groove Pin
- Diameter: 1.9661 in.
- Length: 6.0433 in.
- Groove Diameter: 1.5551 in.
- Groove Location: 0.6693 in.
- Groove Width: 0.4331 in.
- Weight: 5.01 lbs.
Compatible Models
Fits John Deere 700 Series Crawler Dozers: 700H, 700J (s.n. -139435 and 139436-), 700J-II (PIN: 1BZ700JAJHD000001- and 1T0700JJ__D306726-), 700K (PIN: 1T0700KX__E217278 - 275435)
Replaces Part Number(s):
HYM40-0112, T176360
New aftermarket replacement part - not remanufactured, not used.
