New Cylinder Stroke Control Kit 48A50 1"and 1 1/8" Rod Size
New Cylinder Stroke Control Kit 48A50 1"and 1 1/8" Rod Size
Couldn't load pickup availability
One New Aftermarket Replacement Cylinder Stroke Control Kit for Hydraulic Cylinders - 1" and 1-1/8" Rod Size

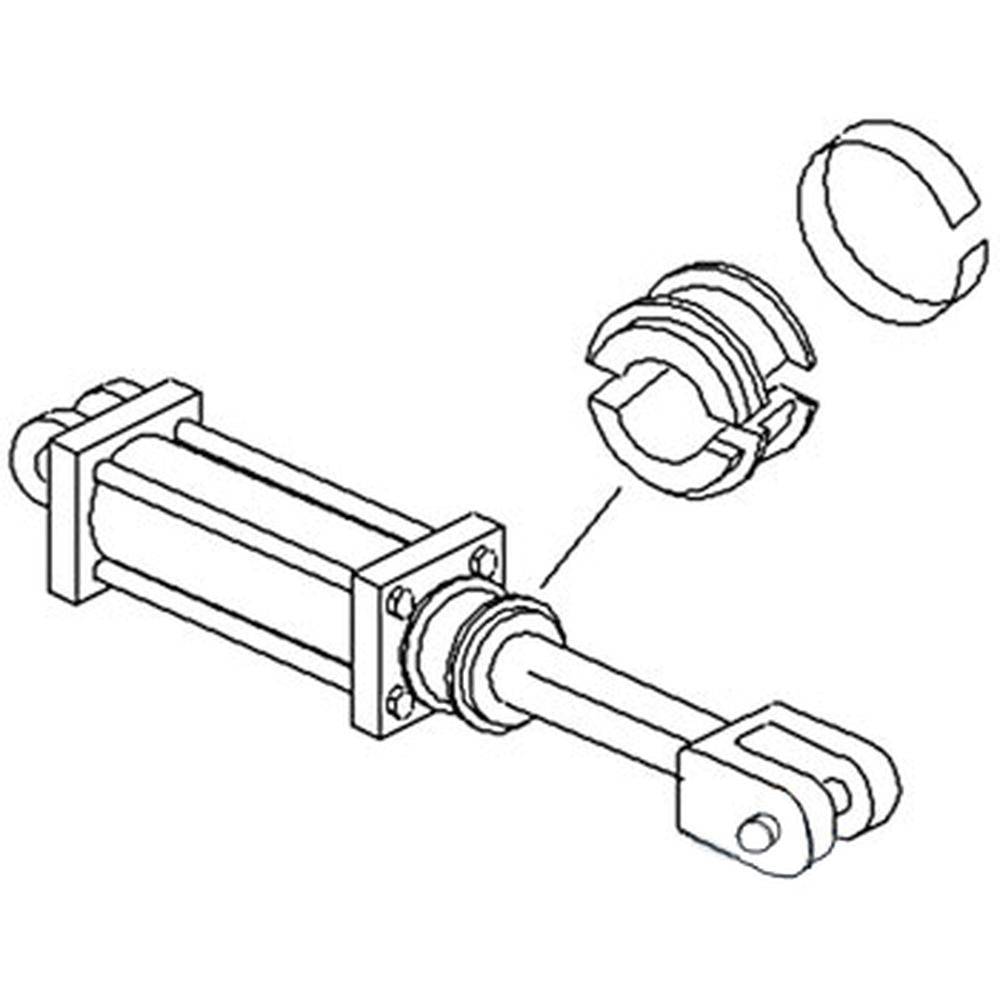

This hydraulic cylinder stroke control stop set allows you to quickly and easily adjust the stroke length of hydraulic cylinders without replacing them. Control sections clamp around the cylinder shaft to limit the return stroke, enabling precise, repeatable positioning for agricultural and general equipment hydraulic applications. The kit features a finger tab design for tool-free installation and removal directly in the field.
Specifications
- Rod Size: 1" and 1-1/8" shaft diameter
- Set Contains: 4 pieces
- Section Widths: 1", 1-1/4", 1-1/2", 1-7/8"
- Design: Finger tab for easy, tool-free installation and removal
- Application: Hydraulic and air cylinders - depth stop / stroke limiter
Compatible Applications
Universal Fitment: Fits hydraulic cylinders with 1" and 1-1/8" rod diameters on tractors, planters, loaders, and other agricultural and industrial equipment. Compatible with Speeco, Fits New Holland, Fits Ford, and similar hydraulic cylinder designs.
Replaces Part Number(s):
48A50, 48A255, 48A98, 2653, DP01
Aftermarket Interchange Numbers
HC391030, SHC391030, SCS99, 39103000, 9110, A-2651, 3001-5202
New aftermarket replacement part - not remanufactured, not used.
