Hydraulic Seal Kit - Steering Cylinder Fits John Deere 624 524 TC54 544 AH212089

One New Aftermarket Replacement Hydraulic Steering Cylinder Seal Kit for John Deere (JD) Wheel Loaders and Backhoe Loaders

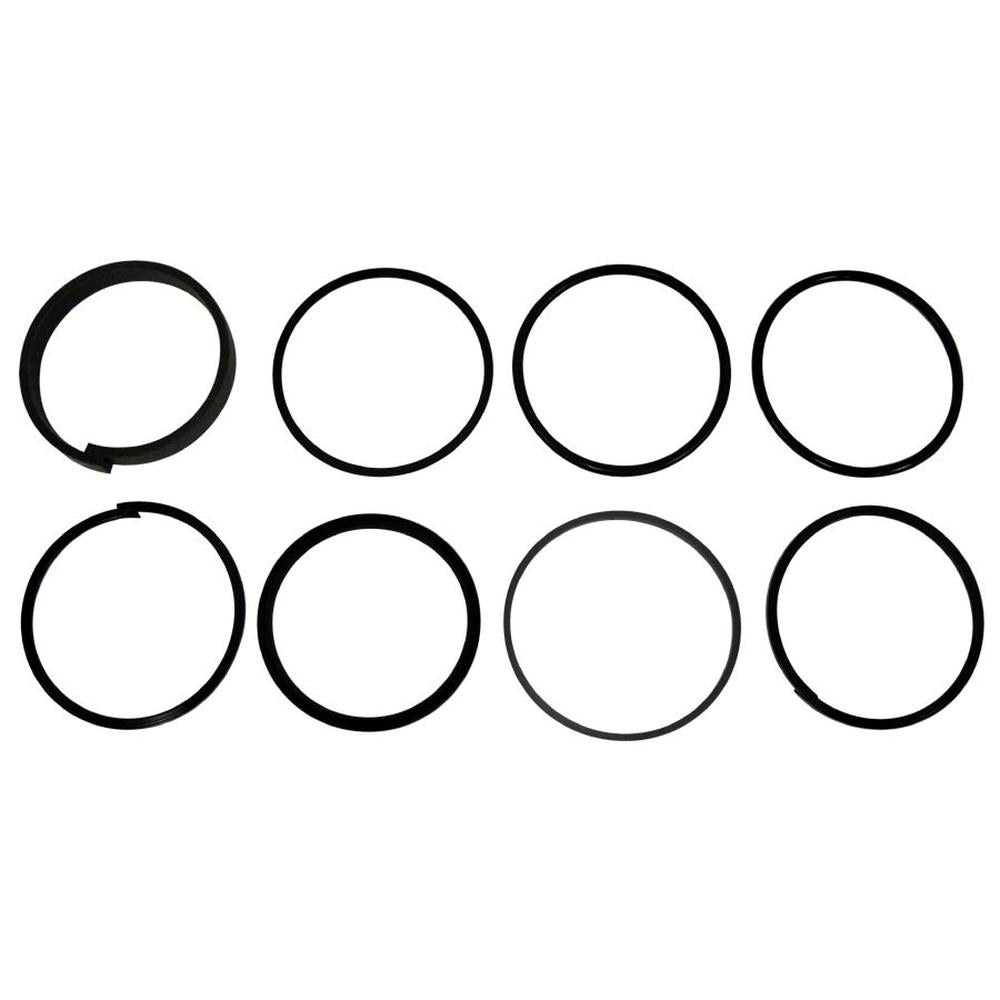

This aftermarket replacement hydraulic cylinder seal kit (piston/bore seal kit) services the 70 mm bore steering cylinders on John Deere (JD) wheel loaders, backhoe loaders, crawler dozers, skid steer loaders, and related construction equipment. The kit includes a 4-piece capped T-seal piston set and is designed to restore proper hydraulic function to worn or leaking steering cylinders. Compatible with OEM cylinder numbers including AH212033, AH154790, AH154788, AH211361, AH211348, AH209719, AH227114, and RE32168.

Specifications

• Bore: 70 mm
• Rod: 40 mm
• Piston Seal: 4-Piece Capped T-Seal Kit
• Application: Steering Cylinder (Bore/Piston Seal)

Compatible Models

John Deere Wheel Loaders: 524, 544E, 544G, 624, 624E, 624G, 624H, 624J, 624K, 624K II, 624KR, TC54, TC62H, 544E TC Tool Carrier, 544G TC Tool Carrier

John Deere Backhoe Loaders: 210C, 300D, 310D, 310E, 310G, 310SE, 310SG, 315CH, 315D, 315SE, 315SG, 315SJ, 315SK, 325J, 325K, 325SK, 410E, 410G, 415B, 435, 435E, 515B, 710D

John Deere Crawler Dozers/Loaders: 450G, 455G, 550G, 555G, 650G

John Deere Skid Steer Loaders: 323E, 332G, 333G

John Deere Sprayers: R4030, R4038, R4045

Note: For John Deere 624H and 624J Wheel Loaders, this kit fits steering cylinder AH212033 (all serial numbers). Verify cylinder bore size and cylinder number before ordering to ensure correct fitment.

Replaces Part Number(s):

AH212089, AH212089-A, ah212089, ah212089-A, RE20428

New aftermarket replacement part - not remanufactured, not used.
