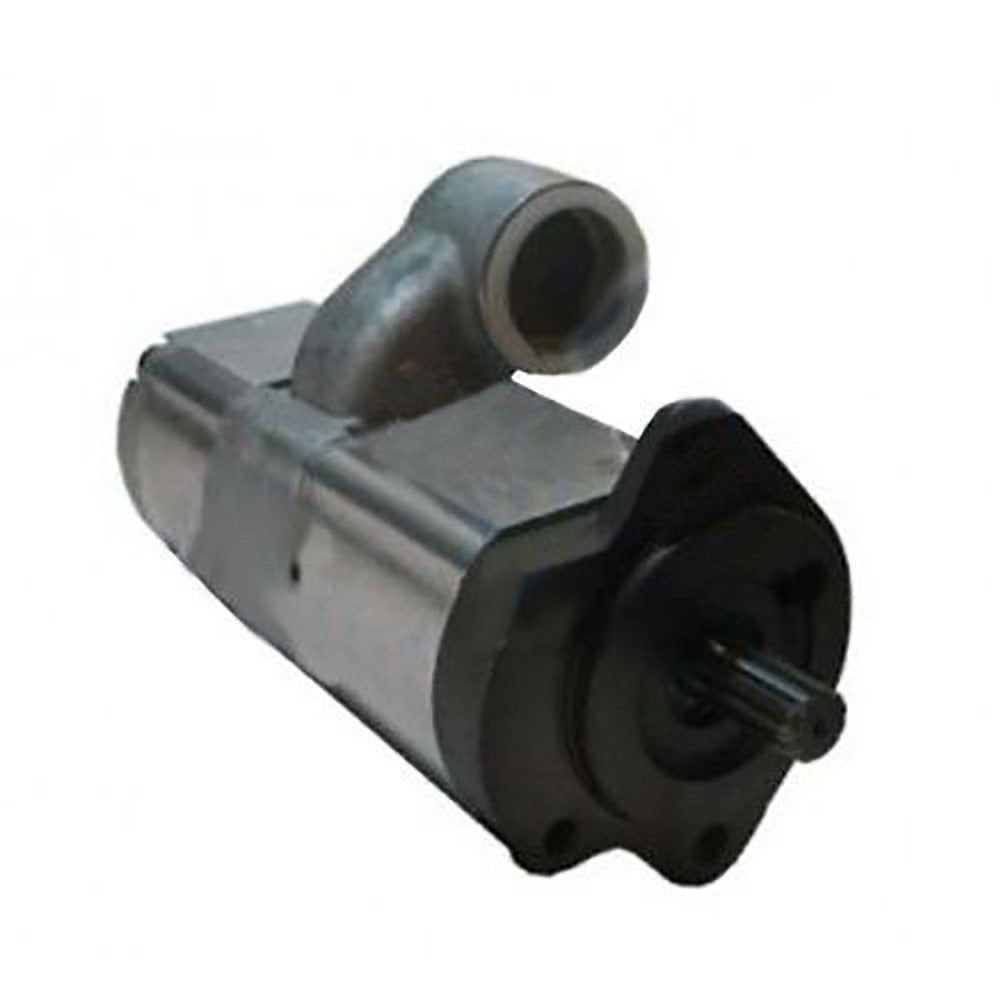

Hydraulic Pump Fits Massey Ferguson 4235 4240 4245 4255 4265; 1201-1632

Hydraulic Pump Fits Massey Ferguson 4235 4240 4245 4255 4265; 1201-1632

$724.00 CAD
$724.00 CAD
Sale Sold out
Shipping calculated at checkout.
Tandem Pump

Fits: AGCO, Fits Allis Chalmers, Fits Massey Ferguson, White
Models: 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 6410, 6510, 8745, 8765, LT70, LT85

Replaces Part Number(s)1201-1632, 1201-1632-A, 3701006M91, 3701006M91-A, 3800194M91, 3800194M91-A, 3816909M91, 3816909M91-A

Models This Part Fits:

4235, 4270, 4255HV, 4235HV, 4360, 4335HV, 4335, 4345, 4235 (USA), 4355, 4225HV, 4325HV, 4355HV, 4260, 4235HV (USA), 4240, 4255, 4325, 4225, 4245, 4245HV, 4265, 4345HV

Additional Information:

Front Inlet hole: 1.73" (44mm) Front Outlet hole: M18 x 1.5 Inner Max GPM: 7.4 Inner Max LPM: Front: 28 / Rear: 22 Outer Max GPM: 5.8 Top Hole Spacing: 4.17" (106mm) Rotation: Clockwise Spline Count: 11 Type: Tandem Pump

Reference Numbers:

35219, 3800194M91
