TX17203 - Hydraulic Pump Replaces 0510525348

TX17203 - Hydraulic Pump Replaces 0510525348

$338.00 CAD
$338.00 CAD
Sale Sold out
Shipping calculated at checkout.

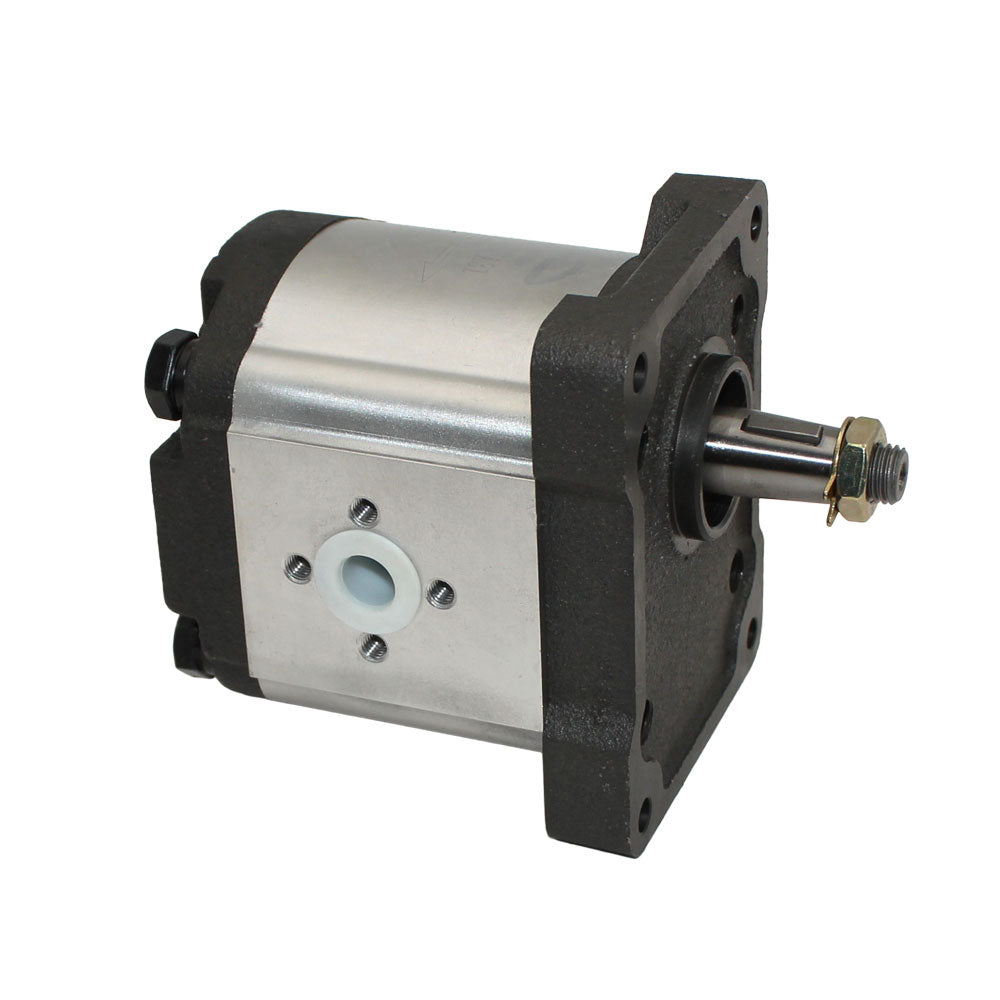

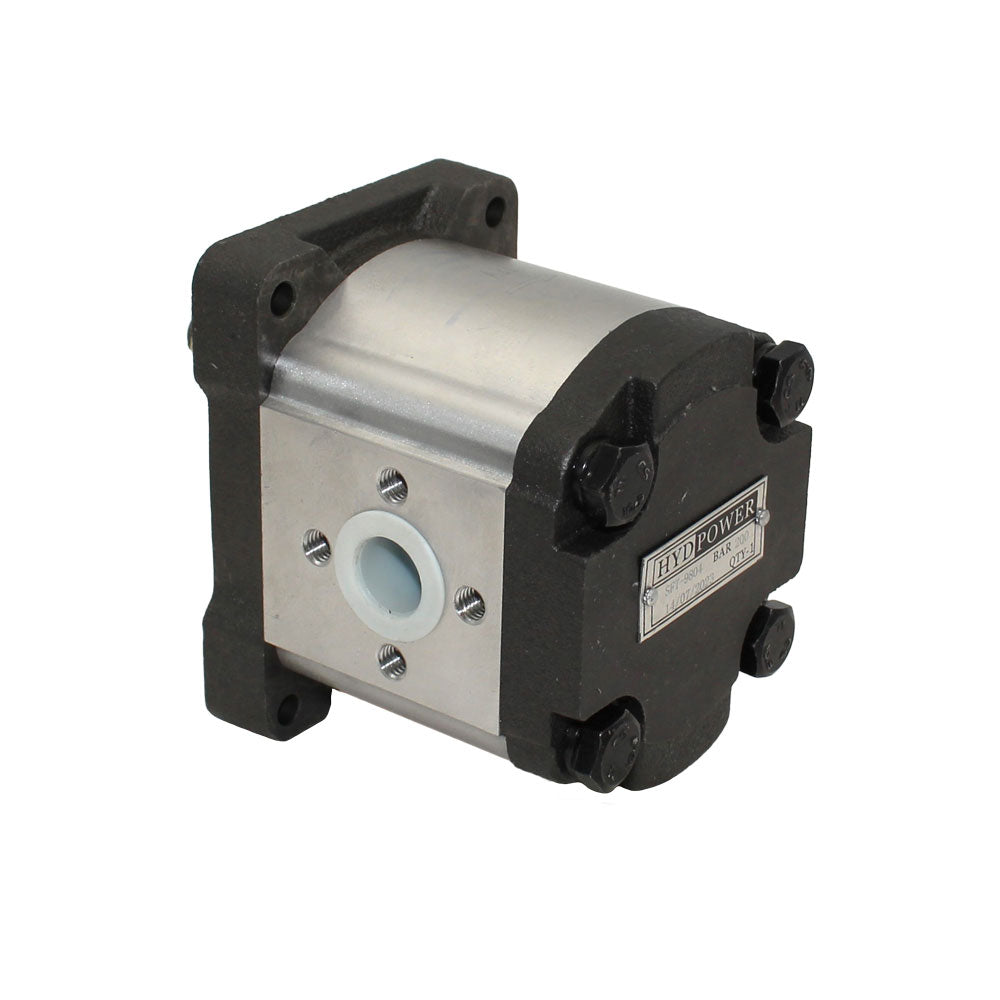

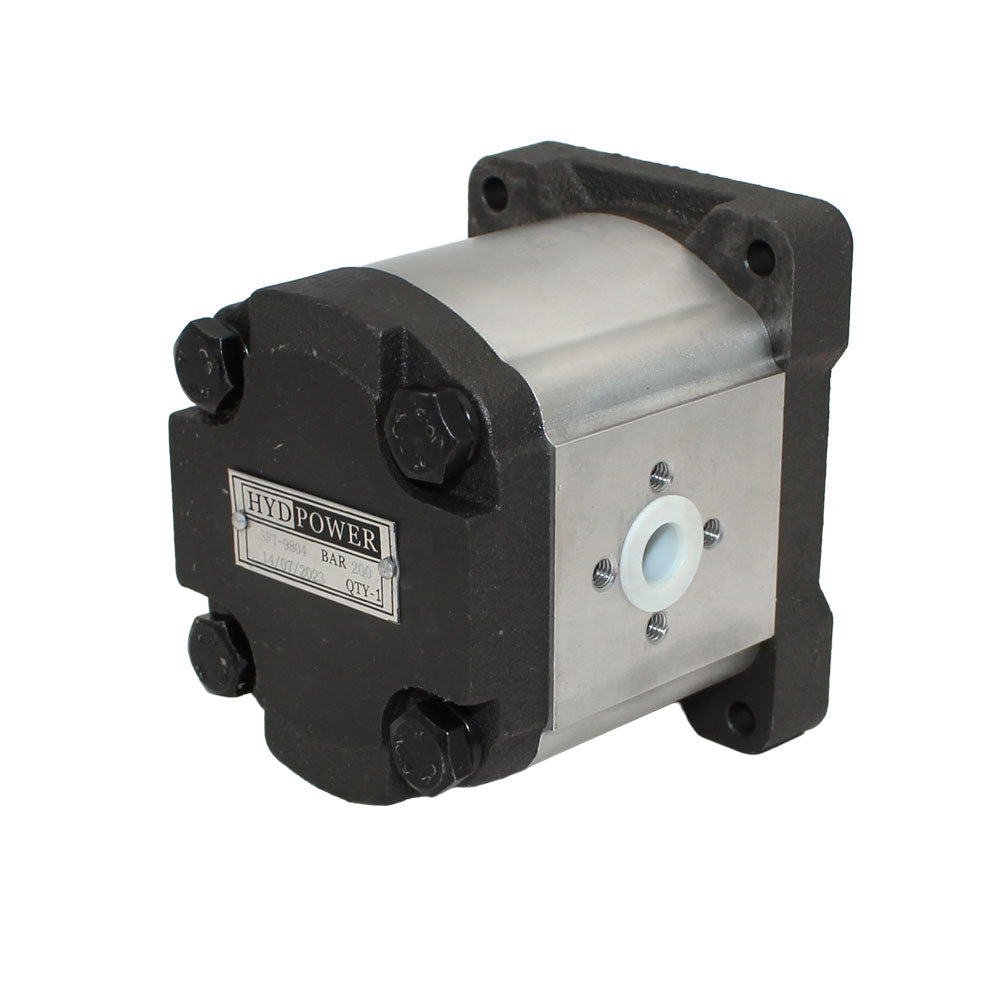

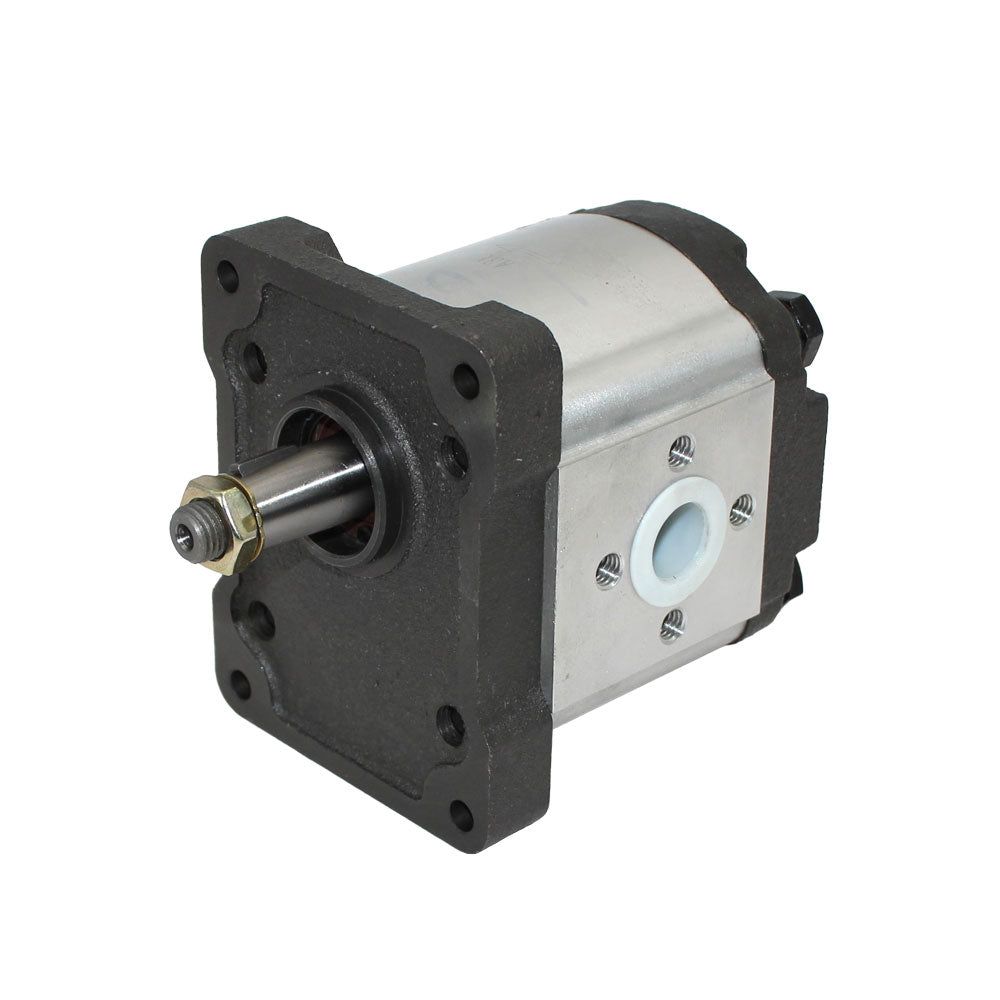

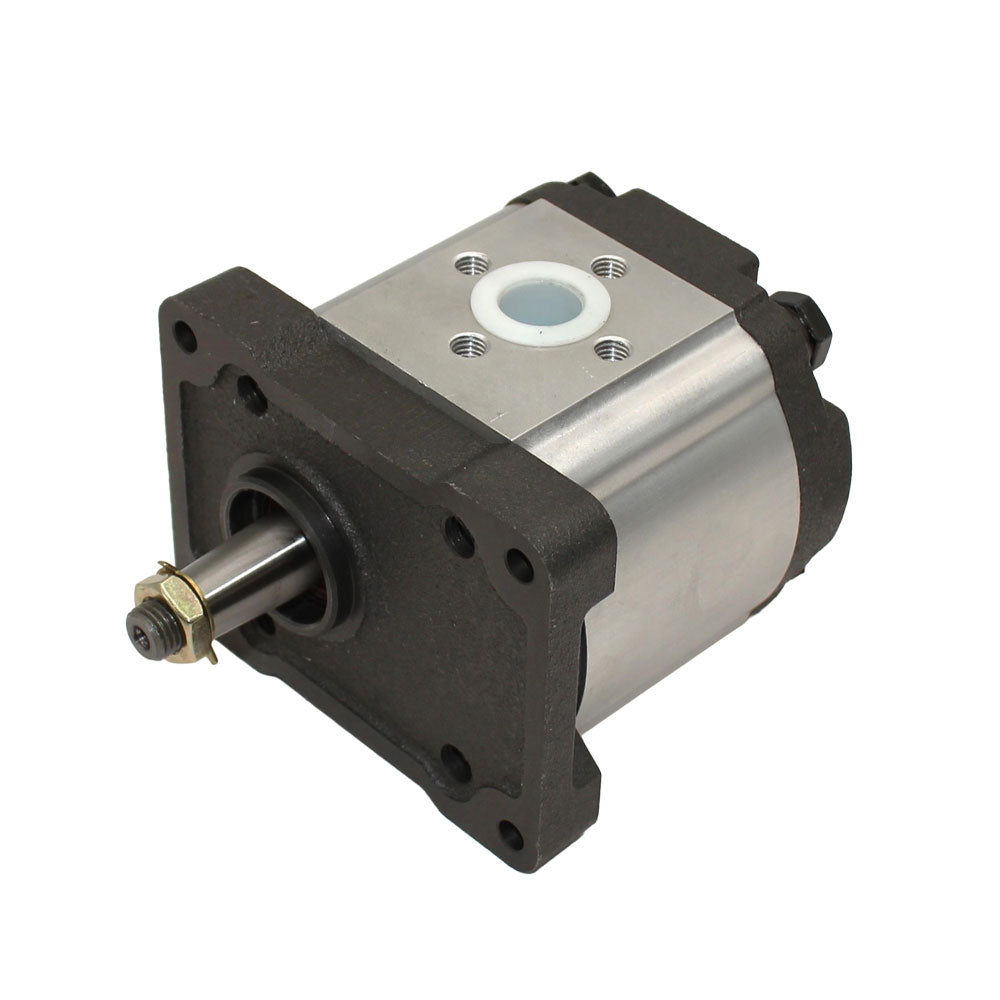

One New Aftermarket Hydraulic Pump

Tech Info:
 -3.1 Litres/Min
 -0.58" (14.7mm) Diameter
 -1.20" (30.5mm) Bolt Circle
 -1.60" (40.5mm) Bolt Circle
 -0.78" (19.8mm) Diameter

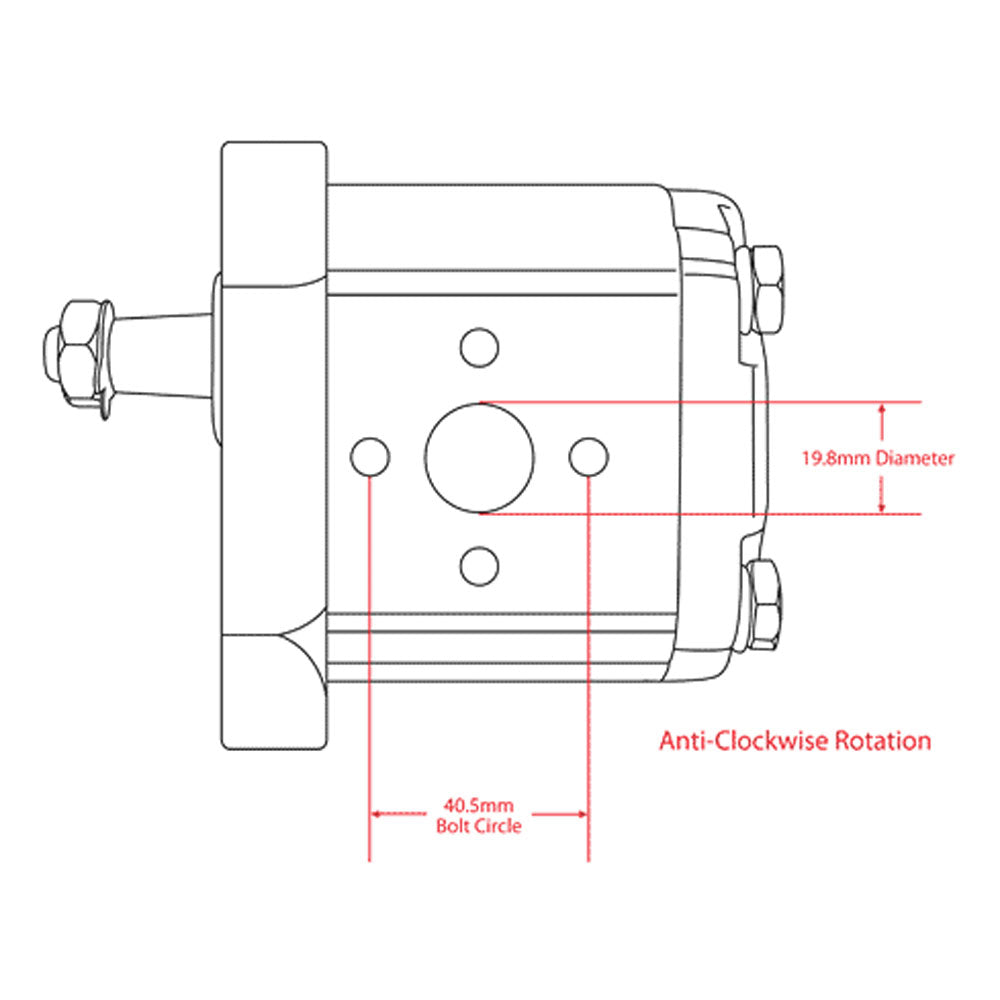

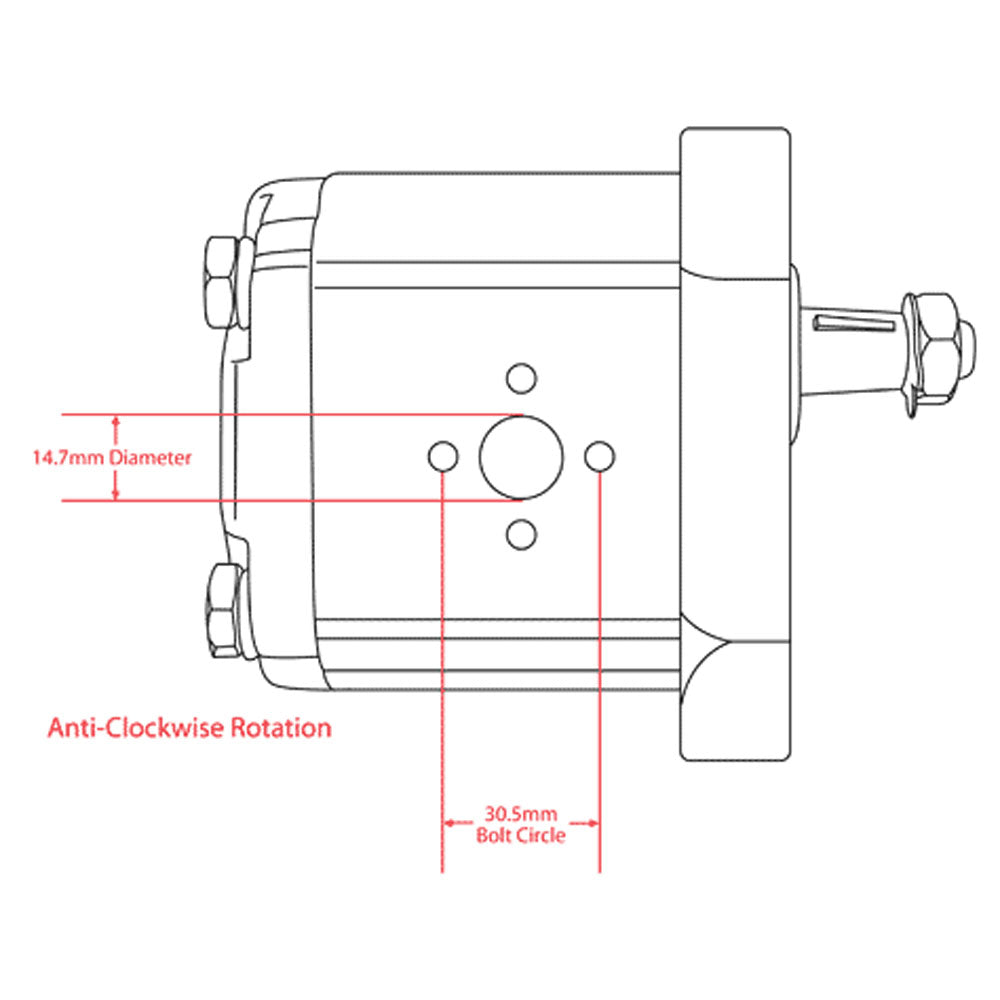

 -See Images for Clarification

Made to Fits Case IH:
 Tractor Models: JX95
 Model Breaks: Straddle Mount Tractor Only
 Replaces Part Number(s): 1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156

Made to Fits Ford:
 Tractor Models: 4230, 4430, 5530, 6530, 7530
 Replaces Part Number(s): 1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156

Fits Hesston-Fiat:
 Tractor Models: 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 50-86VDT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66LPDT, 70-66S, 70-66SDT, 70-66V, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-86SVDT, 70-86VDT, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86FDT, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 90-90DT, 95-55, 100-90, 100-90DT, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT
 Replaces Part Number(s): 1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156

Fits Long:
 Tractor Models: 680, 2360, 2460, 2510, 2610
 Model Breaks: Mounts on Back Side of Engine Timing Cover
 Replaces Part Number(s): 1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156

 Tractor Models: tractors, agricultural, tillage equipment, planting equipment
 Replaces Part Number(s): TX17199

Fits Fiat:
 Tractor Models: 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 50-86VDT, 55-56, 55-56DT, 55-66, 55-66DT, 55-66LP, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-66LPDT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-97DT, 65-56, 65-56DT, 65-88, 65-88DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66DTHC, 70-66F, 70-66FDT, 70-66HC, 70-66LP, 70-66LPDT, 70-66S, 70-66SDT, 70-66SDTHC, 70-66V, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-86SVDT, 70-86VDT, 70-88, 70-88DT, 70-90, 70-90DT, 72-86FDT, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66DTHC, 80-66F, 80-66FDT, 80-66HC, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 90-90DT, 92-94, 100-60DT, 100-90, 110-90, 110-90DT, 115-90, 115-90DT, 130-90, 130-90DT, 140-90, 140-90DT
 Replaces Part Number(s): 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603

Made to Fits Ford/New Holland:
 Industrial/Construction Models: TK76, TK85, TK85M,
 Replaces Part Number(s): 0510525348, 1901324, 1930052, 1930057, 1930068, 5113284, 5120277, 5120297, 5120849, 5169772, 8280127, 8282339, 9967928, A31X

 Tractor Models: 3010S, 3435, 3830, 4010S, 4030 3 Cyl, 4230, 4330V, 4430, 5010S, 5530, 6530, 7530, TD80D, TD85F, TD95DHC Plus, TT55, TT65, TT75
 Model Breaks: TD80D (Standard Model)
 Replaces Part Number(s): 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603

 Crawler Models: TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA
 Replaces Part Number(s): 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603

Made to Fits Case/International Harvester:
 Tractor Models: JX80, JX90, JX95, JX95HC
 Model Breaks: JX80 & JX90 (Standard), JX95 (Straddle Mount), JX95HC Plus
 Replaces Part Number(s): 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603

Models This Part Fits:

TK76, 82-94, 72-93, 70-56, 88-94, 72-93DT, 80-66DT, 3435, 45-66, 50-86VDT, 70-76LP, 80-76F, 65-88DT, 55-76F, 65-90DT, 50-66DT, 3010S, TK75M, 70-66LP, 80-66, 95-55, 60-97DT, 70-66S, 45-76V, 88-93DT, 65-56DT, 115-90, 5530, TK75V, TK75FA, 55-76FDT, 60-86SVDT, 70-76LPDT, TK85M, 82-94DT, 60-76FDT, planting equipment, TD80D, 70-88DT, 4430, 92-94, 85-90DT, 55-76VDT, 55-56DT, JX95, 110-90DT, 45-66DT, 70-90DT, 65-94, 65-94DT, 80-66DTHC, 4010S, 130-90DT, 60-90DT, 7530, JX95HC, 72-85M, 60-66LPDT, tractors, 60-94, 70-66V, 100-90DT, 60-86V, 4330V, 70-66LPDT, 80-66FDT, 72-86LPDT, 70-76FDT, 2460, 60-86VDT, 100-60DT, TK75F, 60-56DT, 72-94, 90-90, 72-85, 70-66FDT, 2510, 2360, 60-86FDT, 80-90DT, 60-93, 2610, 88-94DT, 72-86FDT, 80-66F, 140-90DT, 55-76V, 130-90, 50-66, 60-76F, 60-56, 65-90, 82-93DT, 70-76F, 60-66DT, 90-90DT, 70-88, 70-66SDTHC, 110-90, 140-90, 55-66, 88-93, 5010S, 60-93DT, 70-66DTHC, 72-94DT, 100-90, TD95DHC Plus, 80-66HC, 82-93, 65-93DT, 65-93, 55-56, 55-66DT, 60-66, 70-90, 85-90, TT75, 70-66, 80-90, tillage equipment, 80-88DT, 115-90DT, 80-76FDT, TK75VA, 70-66HC, TT55, 6530, 70-76V, 70-86SVDT, 65-56, 80-88, 70-66DT, 55-66LP, 65-88, 70-66F, TT65, 3830, 4030 3 Cyl, 70-66SDT, JX80, 680, 60-86SV, TK75MA, TD85F, JX90, TK85, 60-94DT, 60-86F, agricultural, 70-56DT, 70-86VDT, 4230, 60-90

Additional Information:

3.1 Litres/Min 0.58" (14.7mm) Diameter 1.20" (30.5mm) Bolt Circle 1.60" (40.5mm) Bolt Circle 0.78" (19.8mm) Diameter See Images for Clarification

Reference Numbers:

1901324, 1930052, 1930057, 1930068, 30-3012875, 5113284, 5120297, 5120849, 5129483, 5169772, 5179719, 8280127, 8282339, 84530156, 0510525348, 1901324, 1930052, 1930057, 1930068, 5113284, 5120277, 5120297, 5120849, 5169772, 8280127, 8282339, 9967928, A31X, TX17199, 84530156, 1909915, 1909919, 1930068, 5086286, 5094391, 5113284, 5120849, 5129483, 5169772, 5179719, 9967928, 84467651, 85086286, 87325370, 87721169, 87737603
