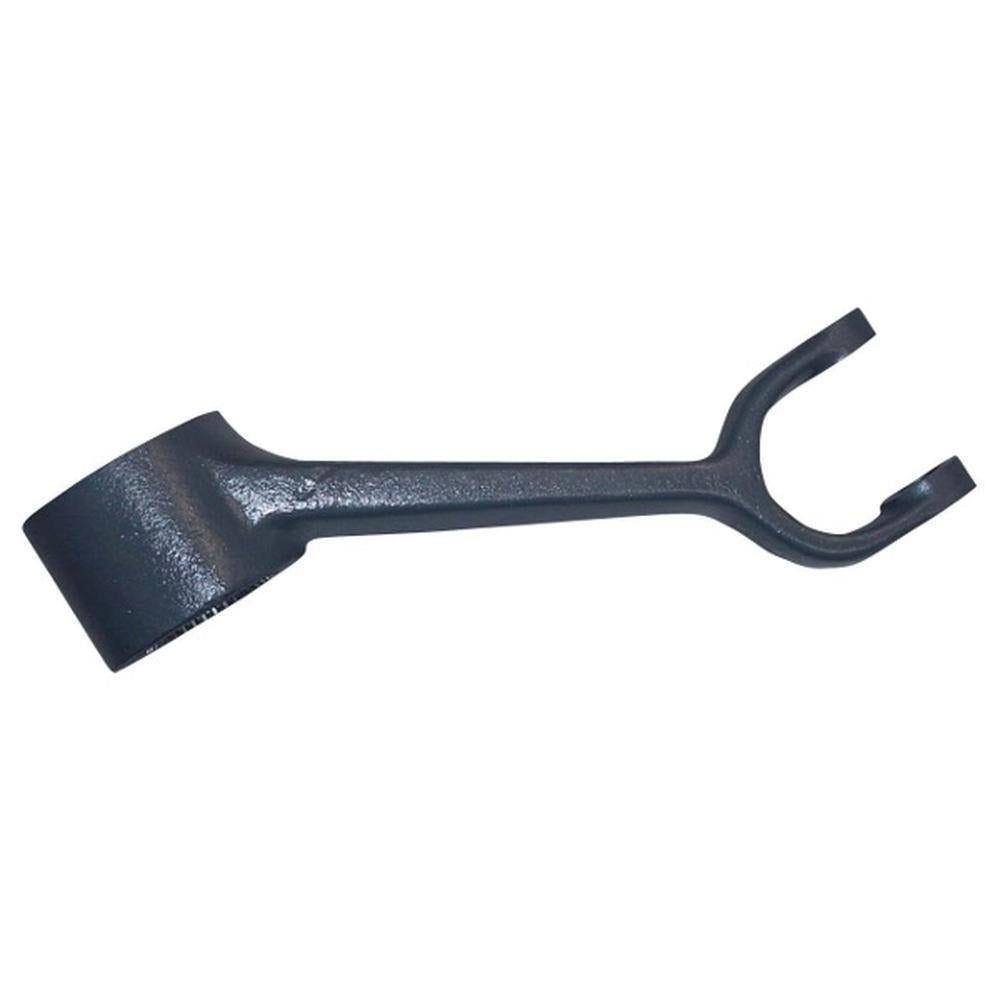

Hydraulic Lift Arm Fits Ford New Holland Tractor 2N 8N 9N 2000 - 9N543B

Name: Hydraulic Lift Arm Fits Ford New Holland Tractor 2N 8N 9N 2000 - 9N543B
SKU: AGER1197381
Price: 134.0 USD
Availability: InStock

Hydraulic Lift Arm Fits Ford New Holland Tractor 2N 8N 9N 2000 - 9N543B

$134.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hydraulic Lift Arm (Rockshaft Arm) for Ford / New Holland, Massey Ferguson, and Landini Tractors

This hydraulic lift arm -- also known as a rockshaft arm or lift side arm -- mounts on the hydraulic lift rockshaft and transfers lifting force to the three-point hitch lower links. It is a direct replacement for the original Ford (New Holland) 9N543B and Massey Ferguson 180910M1 design used across a wide range of utility tractors from the 1940s through the mid-1960s. Fits right-hand or left-hand side on select models; right-hand side only on others -- see fitment notes below.

Specifications

Inner Diameter: 1.80"
Spline Count: 37
Pin Hole Diameter: 0.625"
Fits Right Hand or Left Hand (model-dependent -- see fitment notes)

Fitment Notes

Right Hand or Left Hand: Ford 2N, 8N, 9N, NAA (Jubilee)

Right Hand Only: Ford 2000 (4-cylinder, pre-1964), 4000 (4-cylinder, pre-1964), 600 Series, 700 Series, 800 Series, 900 Series (and all sub-models within those series)

Massey Ferguson / Massey Harris / Landini: Verify side applicability before ordering.

Compatible Models

Ford / New Holland Tractors: 2N, 8N, 9N, NAA (Jubilee), 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 940, 941, 950, 951, 960, 961, 971, 981, 2000 (4-cylinder, pre-1964), 2030, 2111, 2120, 2130, 4000 (4-cylinder, pre-1964), 4030, 4040, 4121, 4610, 1801, 1811, 1821, 1841, 1871, 1881 Industrial

Massey Ferguson / Massey Harris Tractors: 35, 50, 65, 135, 202, 203, 204, 205, 302, 304, F40, TE20, TEA20, TO20, TO30, TO35, 2135, 4030, 4040, 4140

Landini Tractors: Compatible models -- verify via part number 180910M1

Replaces Part Number(s):

9N543B, 9N543B-A, C0NN838D, 180910M1, 182587M1, AS114032AP

Aftermarket Interchange Numbers

1101-1053 (Complete Tractor / Atlantic Quality Parts interchange)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

771, 2111, 800, 4000 4 cylinder, 860, 960, 8N, 501, 681, 304, 981, 202, NAA, 630, 2000, 841, 1881, 203, 651, 900, TO35, 631, 50, TO20, 621, 4040, 600, 2030, 740, 9N, 861, 2000 4 cylinder, 881, 2N, 302, 1871, 961, 700, 871, 611, 801, 971, Jubilee, TE20, 4121, 1801, 204, 1811, 1821, 205, TO30, 741, 661, 641, 901, 4140, 65, 4030, 821, 4000, 851, F40, 951, 811, 671, 1841, TEA20, 950, 640, 2135, 941, 840, 650, 35, 541, 820, 135, 601, 4030 3 Cylinder, 2130, 620
