Hydraulic Gear Pump Fits John Deere 1250 1450 1650 1650 CH16636
Hydraulic Gear Pump Fits John Deere 1250 1450 1650 1650 CH16636
Regular price
$885.00 CAD
Regular price
Sale price
$885.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

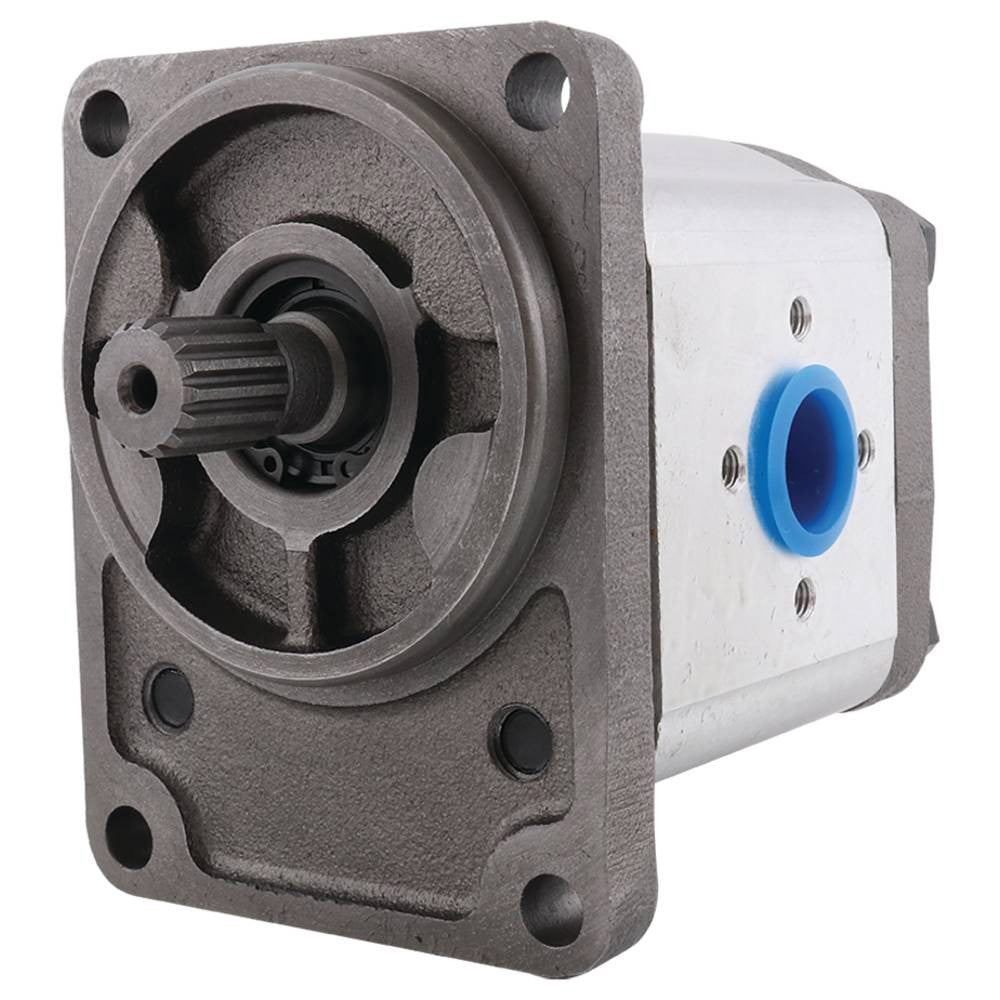

One New Aftermarket Replacement Hydraulic Gear Pump for John Deere (JD) Compact Tractors
This aftermarket replacement hydraulic gear pump supplies flow to the hydraulic system on John Deere compact tractors, supporting implement lift and remote hydraulic functions. The pump features a splined shaft drive and clockwise rotation. Note: two different hydraulic pumps were commonly used on these tractor models -- port locations vary. Verify you are ordering the correct pump for your specific tractor configuration before ordering.
Specifications
- Displacement: 19 CC (per CSV tech_info; some sources list 8 cc -- verify with your dealer)
- Rotation: Clockwise
- Drive Type: Splined (14 splines)
- Flow Rate: 4.2 GPM
- Max Pressure: 2900 PSI
- Pump Type: Single
- Relief Valve: Not Included
Compatible Models
John Deere Compact Tractors: 1250, 1450, 1650
Replaces Part Number(s):
CH16636, 3070027481, 307002-7481
Aftermarket Interchange Numbers
HYI60-0106, HR16636
New aftermarket replacement part - not remanufactured, not used.
