Hydraulic Coupler Kit Fits John Deere 20, 30, 40 Series, Push-Pull Coupler

Hydraulic Coupler Kit Fits John Deere 20, 30, 40 Series, Push-Pull Coupler

$545.00 CAD
$545.00 CAD
Sale Sold out
Shipping calculated at checkout.

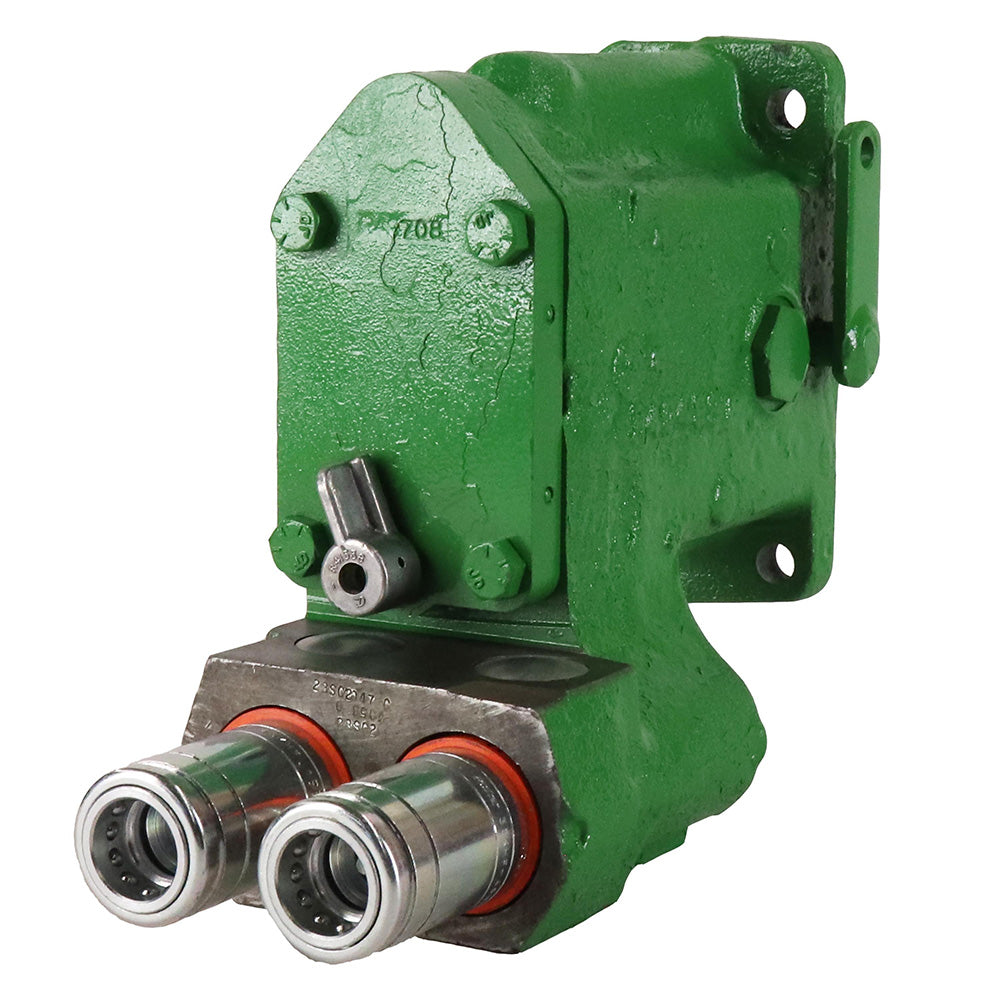

One New Aftermarket Hydraulic Coupler Kit Fits John Deere 20, 30, 40 Series, Push-Pull Coupler

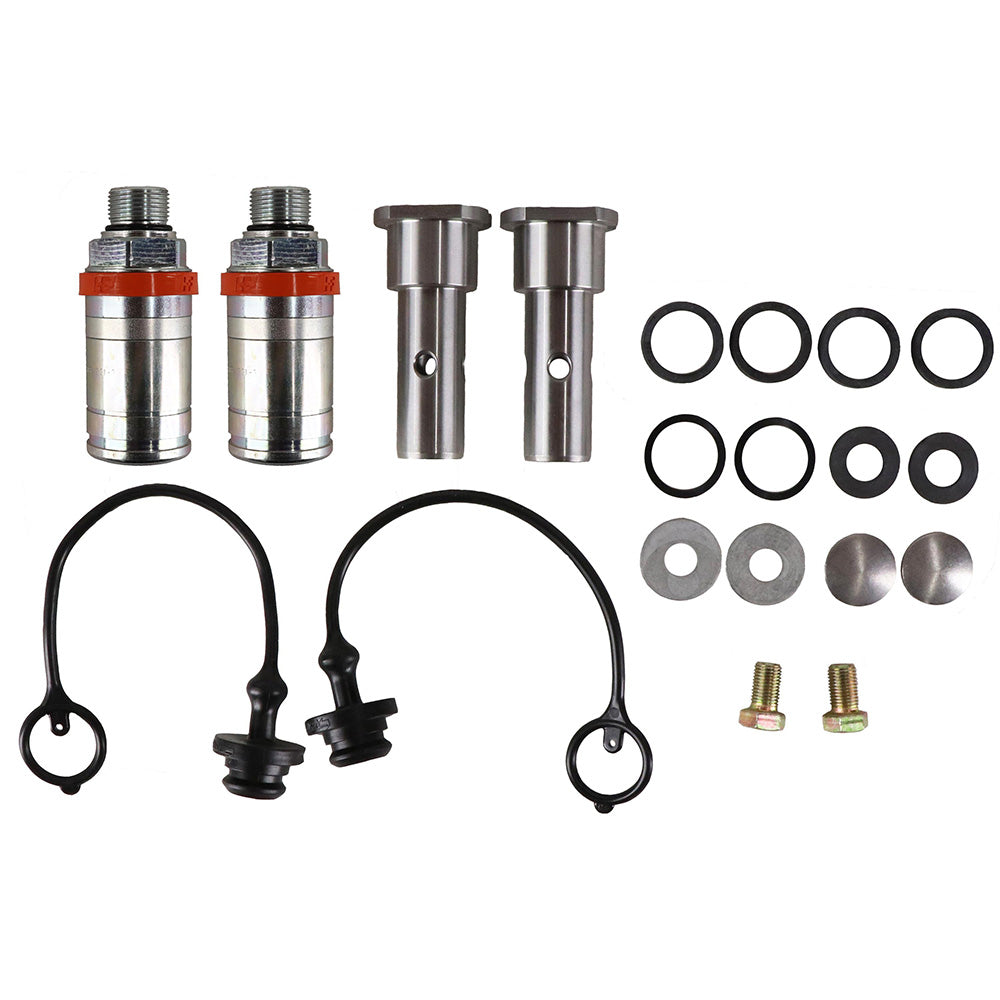

Compact push-pull coupler for applications with higher flow rate and limited space. Connectable under residual pressure. Reduced dimensions, 15mm shorter than standard version. Updated coupler design, push-pull coupling Easy installation Additional o-ring installed to prevent premature leaking Breakaway functionIncludes 2-Couplers, 2-Internal Adapters, 2-Plugs, Bolts, O-Rings & SealsThe 8302335 Hydraulic Coupler Kit Fits John Deere 20, 30, 40 Series, Push-Pull Coupler fits equipment brands such as: Fits John Deere

Tech Info:
-Style: Push-Pull
-Max Pressure (PSI): 3625
-Body Size: 1/2"
-ISO: 7241A
-New/Reman: New
-Sold As: Pkg. of 2
-Thread Size: Male; 22mm x 1.5" ORB

Replaces Part Number(s): 8302335

Models This Part Fits:

3130, 1030, 5020, 4320, 2130, 4230, 2640, 4040, 2840, 2520, 3030, 4020, 4010, 4000, 4640, 2240, 8430, 4430, 8440, 4520, 2020, 1520, 6030, 1020, 8630, 4240, 4840, 8640, 7020, 1530, 1630, 2940, 4030, 2040, 7520, 3010, 2630, 2030, 2440, 1130, 4620, 4630, 4440, 3020

Additional Information:

Style: Push-Pull Max Pressure (PSI): 3625 Body Size: 1/2" ISO: 7241A Thread Size: Male; 22mm x 1.5" ORB

Reference Numbers:

8302335
