HTL2101 Fits Ford Hydraulic Top Link 600 601 700 800 900 2000 3000 4000 5000
HTL2101 Fits Ford Hydraulic Top Link 600 601 700 800 900 2000 3000 4000 5000
Regular price
$504.00 CAD
Regular price
Sale price
$504.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

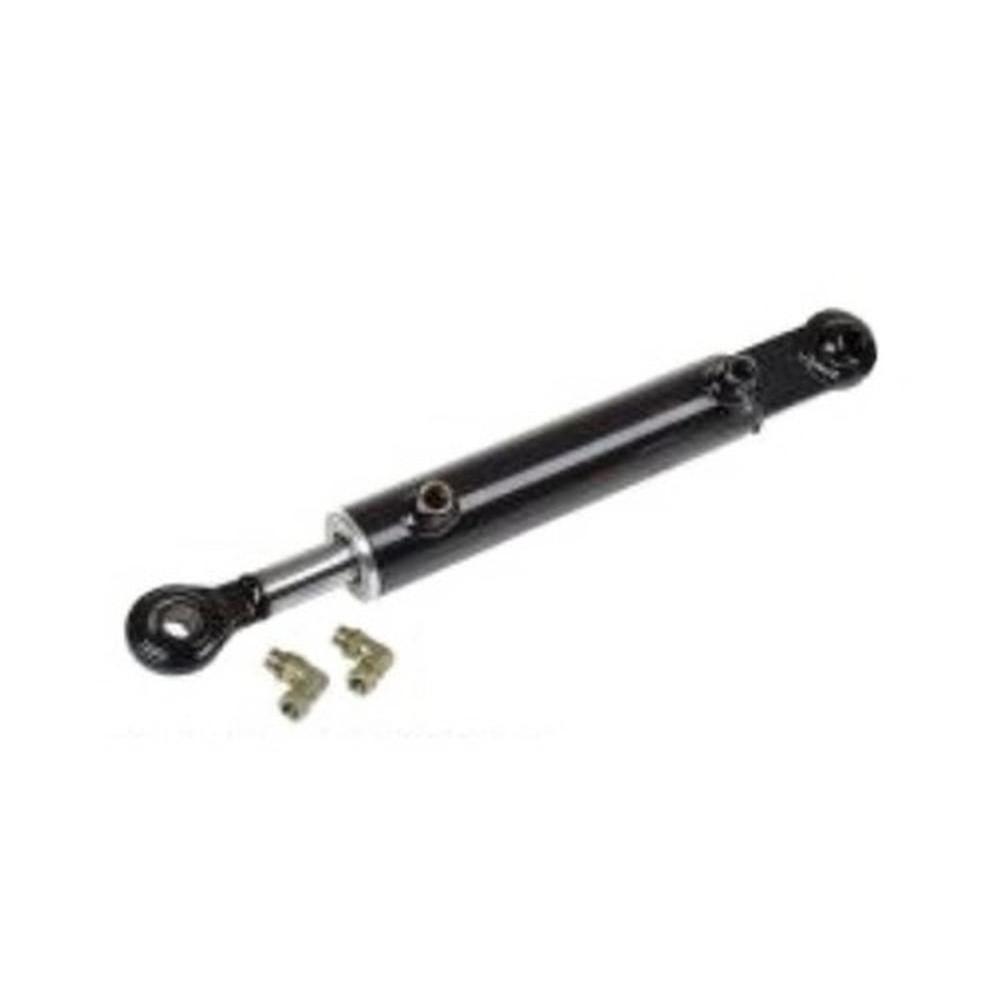

One New Aftermarket Replacement Fits Ford/New Holland Hydraulic Top Link that fits Tractor models: 600, 601, 700, 800, 801, 900, 2000, 3000, 4000, 5000, 2N, 8N, 9N, NAA. Also Fits Massey Ferguson Tractor model: MF40, plus others. DEFAULT SCHEMA GROUP Hydraulic top link cylinder with 2"" Bore.
EQUIV. GANNON: 13-535
STROKE LENGTH: 8""
CLOSED LENGTH A: 24-1/16""
BARREL LENGTH B: 12-7/16""
ROD HOLE DIA. C: 3/4""
ROD END WIDTH D: 1-3/4""
BASE END DIA. E: 3/4""
BASE END WIDTH F: 1-3/8""
BASE TO BALL C/L: 7-9/16""
Qty in HCKF193D: 1
Qty in HCKF192R: 1
Qty in HCKF193R: 1
Qty in HCKF192D: 1
Replaces Part Number: HTL2101
