HM516449 Bearing Made to be Universal
HM516449 Bearing Made to be Universal
Couldn't load pickup availability

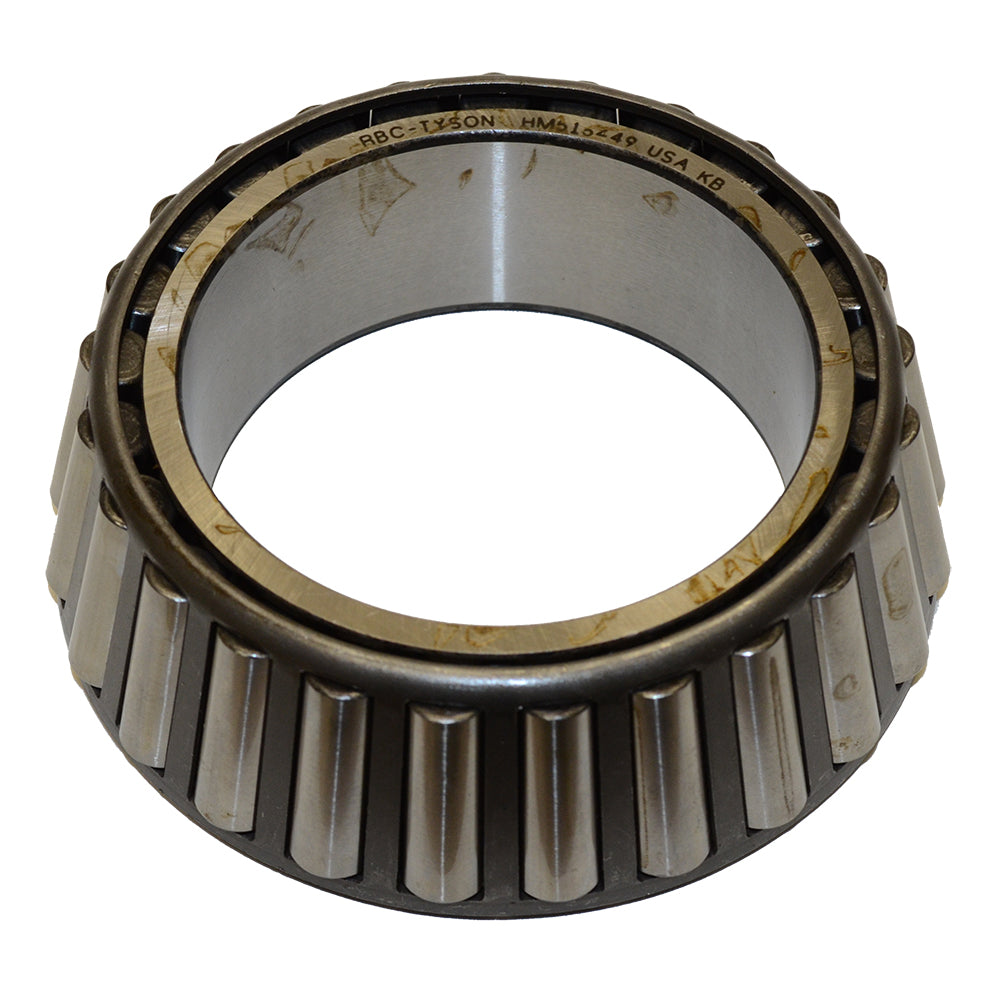

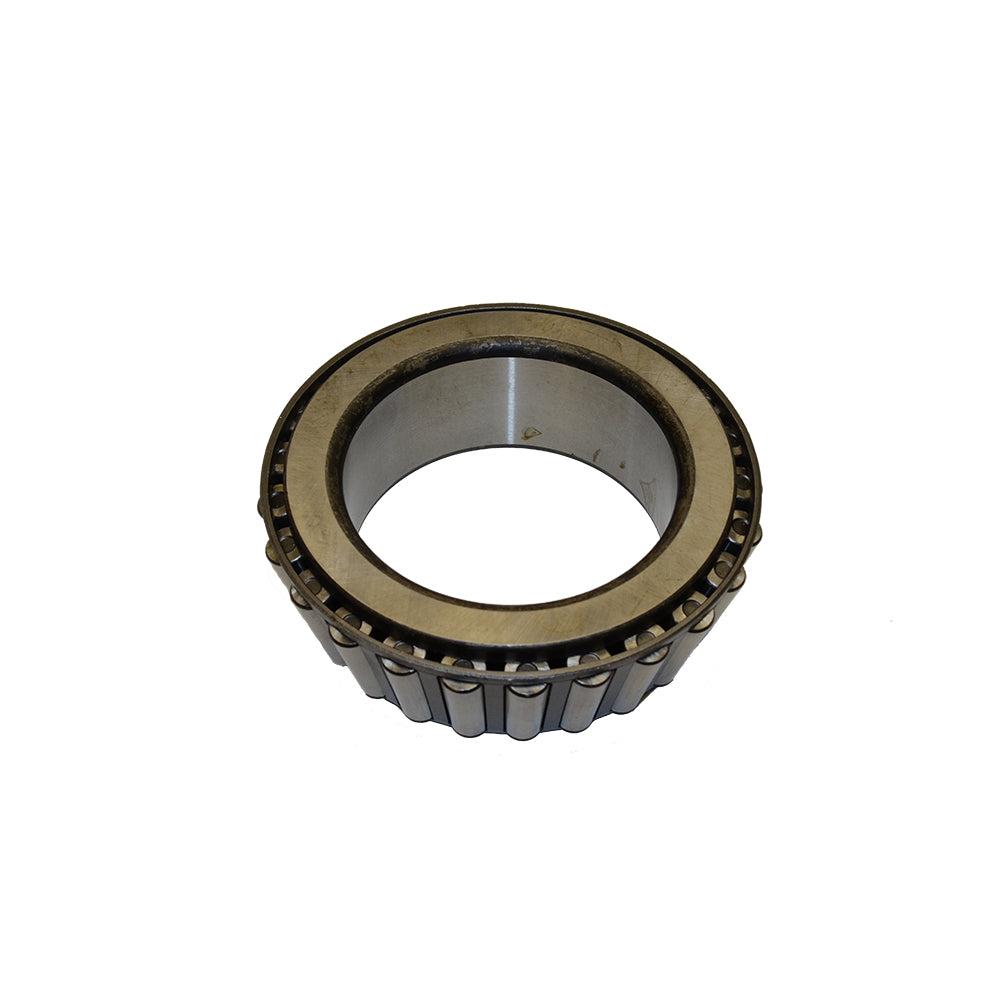

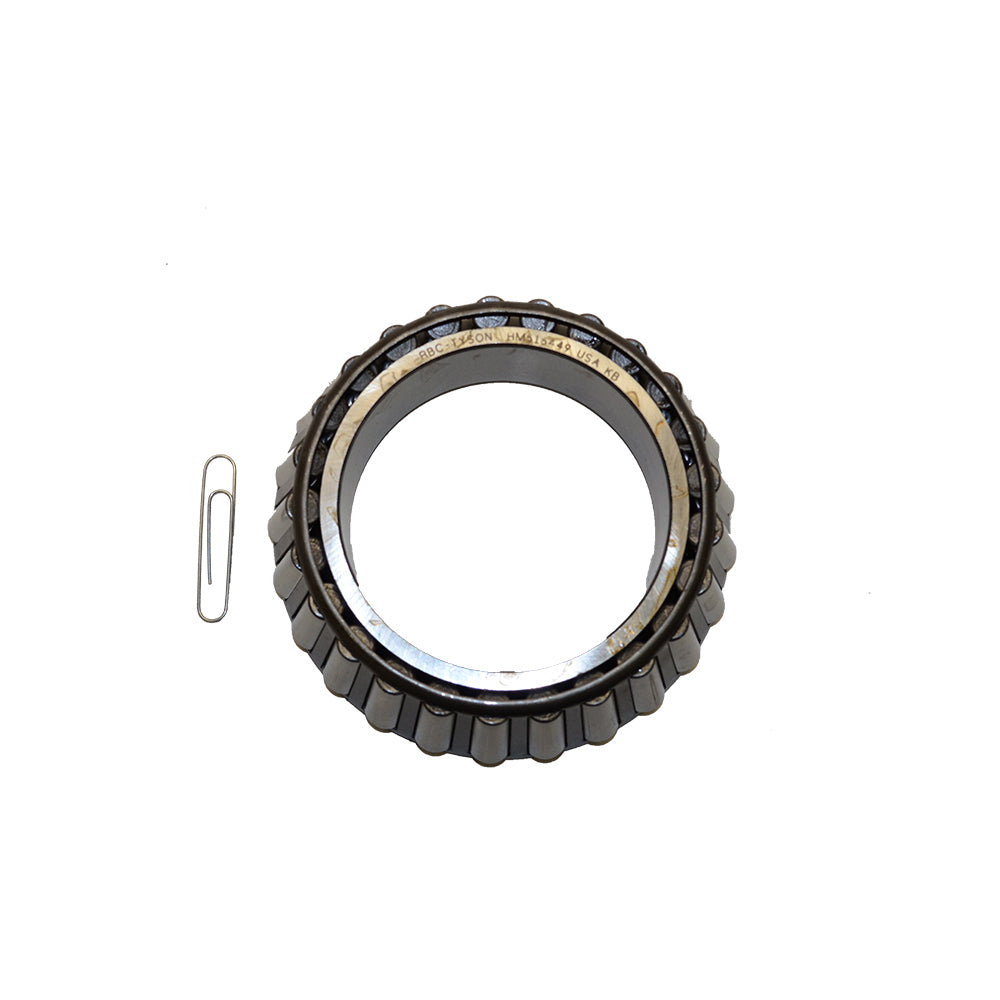

One New Aftermarket Replacement Tapered Roller Bearing Cone - Universal Fit
This tapered roller bearing cone (HM516449) is a single-row tapered roller bearing cone used in front axle, steering, and wheel hub assemblies across a wide range of agricultural and construction equipment. The HM516449 is a widely interchanged industry-standard bearing cone Fits Case, Fits Case IH, and Fits International Harvester (IH) equipment, as well as many other makes. It pairs with cup HM516410 and handles both radial and single thrust loads.
Specifications
- Type: Tapered Roller Bearing Cone
- Bore (ID): 3.250 in (82.55 mm)
- Outer Diameter: 5.250 in (133.35 mm)
- Width: 1.5625 in (39.688 mm)
- Max Shaft Fillet Radius: 0.140 in (3.6 mm)
- Material: Fits Case Carburized Steel
- Mates with Cup: HM516410
Compatible Makes and Applications
Fits Case / Fits Case IH: Front axle, steering, and wheel hub applications across tractor and construction equipment lines. Cross-reference part numbers 591760C91, 174707H1, 1997115C1, 160300R91, A34339, and D61137 confirm fitment across Fits Case and IH equipment lines.
Also used in truck and heavy equipment applications (cross-references Mack Trucks 62AX420, 25191788). Verify specific model fitment using the part numbers listed below.
Replaces Part Number(s):
HM516449, 160300R91, 174707H1, 1997115C1, 591760C91, A34339, D61137
Aftermarket Interchange Numbers
HM516449 (Timken/National/NTN/Bower/Koyo/RBC); mates with cup HM516410
New aftermarket replacement part - not remanufactured, not used.
