Universal Bearing Cone Oil Seal Tapered Fits Case IH Fits Caterpillar Fits John
Universal Bearing Cone Oil Seal Tapered Fits Case IH Fits Caterpillar Fits John
Couldn't load pickup availability

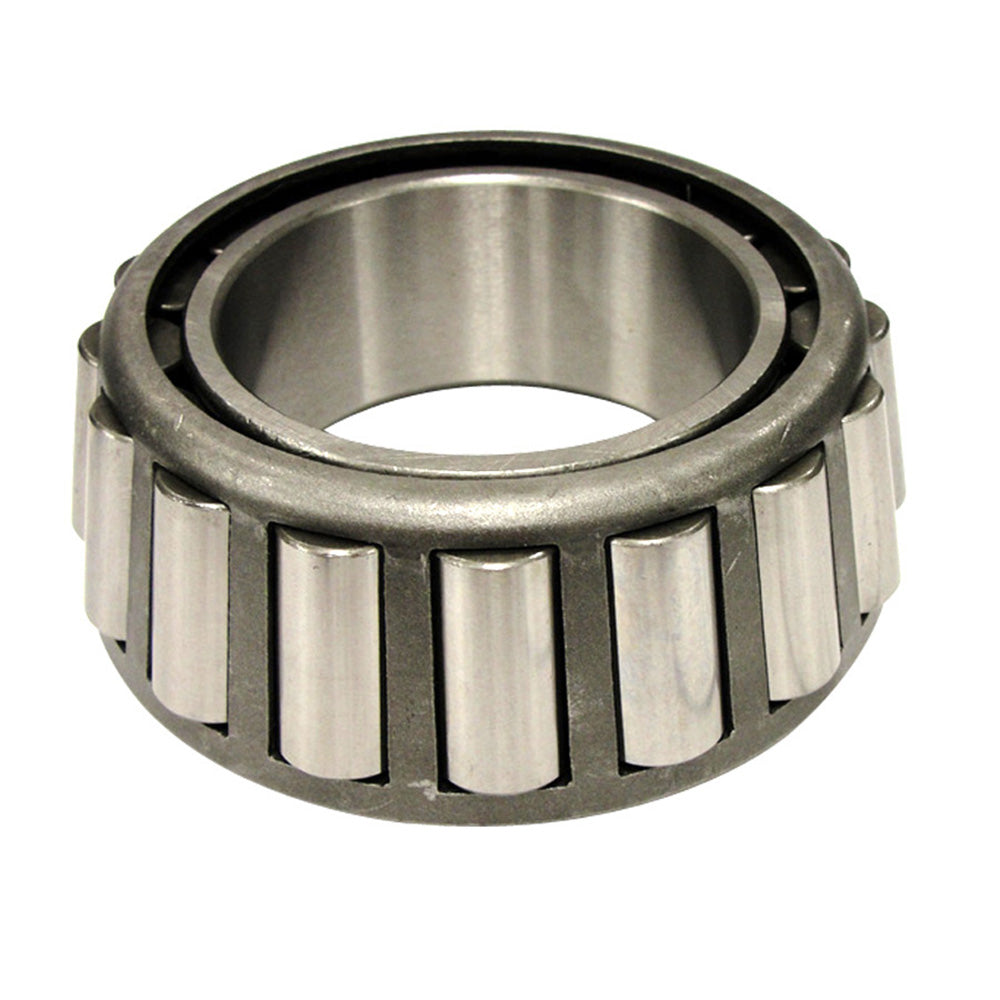

One New Aftermarket Replacement Tapered Roller Bearing Cone Fits Case IH, Fits Caterpillar (Fits CAT), Fits Allis Chalmers, and Allison/Twin Disc Equipment
This tapered roller bearing cone (HM212049) is a heavy-duty single-cone inner ring assembly designed to support both radial and axial loads in wheel hubs, axles, transmissions, and drivetrain assemblies. It pairs with a compatible cup (HM212011 or HM212010) to form a complete tapered roller bearing. Widely used across agricultural, construction, and industrial equipment from multiple manufacturers including Fits Case IH (Fits International Harvester), Fits Caterpillar (Fits CAT), Fits Allis Chalmers, and Allison/Twin Disc.
Specifications
- Bore Diameter: 2.6250 in (66.68 mm)
- Cone Width: 1.5100 in (38.35 mm)
- Bearing Series: HM212000
- Material: Chrome/Fits Case Carburized Steel
- Cage Material: Steel (stamped)
- Operating Temperature Range: -65 to +250 degrees F (-54 to +120 degrees C)
- Compatible Cup: HM212010 / HM212011
- Weight: approx. 2.87 lbs
Compatible Equipment
Fits Case IH: Multiple tractor and equipment applications (see OEM part numbers below)
Fits Caterpillar (Fits CAT): Challenger 35, 45, 55; Paving Compactors CB-434D, CD-54; Engines 3054C, 3056, 3056E, 3116, 3126; and other Fits CAT equipment applications
Fits Allis Chalmers: Multiple equipment applications
Allison / Twin Disc: Multiple transmission applications
Fits John Deere: Multiple equipment applications
Replaces Part Number(s):
HM212049, 5P8088, 7K0394, 7K394, 6848162, 4255711, 6I8849, 851-IM212049, 913-HM212049, 931012, MA585C, ST2110, 70033105, 70684816, 76848162, 182271H1, 204811R91, 380217R91, 5013283B21, 895872C91, A136003
Aftermarket Interchange Numbers
This bearing cross-references to Timken HM212049, NTN HM212049, SKF SET413 (cone portion), and numerous heavy-duty truck, trailer, and industrial aftermarket references.
New aftermarket replacement part - not remanufactured, not used.
