JSA1009 New Universal Top Link 9" Ling Min 13" Max 19" Fits CAT 1-1
JSA1009 New Universal Top Link 9" Ling Min 13" Max 19" Fits CAT 1-1
Couldn't load pickup availability

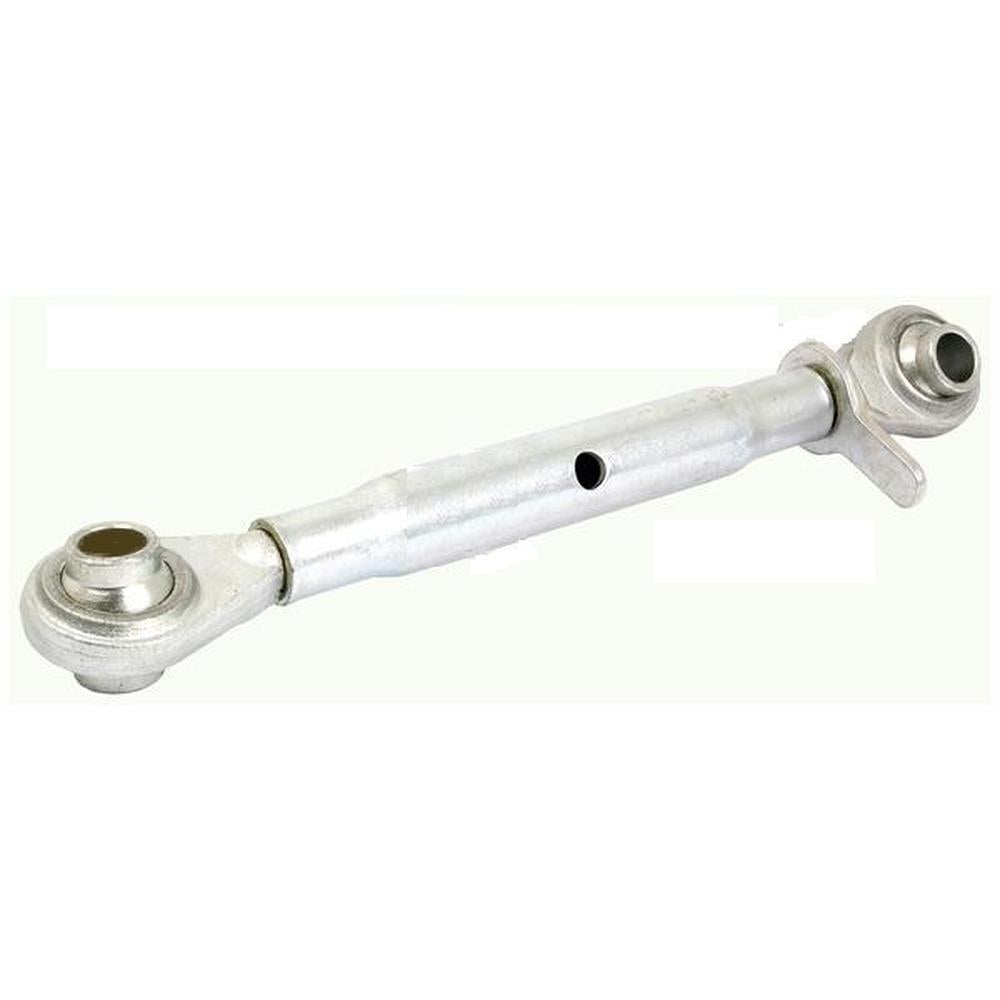

One New Aftermarket Replacement Universal Top Link for Category 1 Three-Point Hitches
This short-body adjustable top link connects the tractor to Category 1 three-point hitch implements, completing the upper link of the three-point linkage assembly. Designed as a universal fit for compact and utility tractors equipped with Category 1 hitches, this is a special short-body unit -- shorter than most standard top links -- making it ideal for applications with limited clearance or where a compact adjustment range is needed.
Specifications
- Hitch Category: Category 1 (Fits CAT I)
- Tube (Body) Length: 9 in / 230 mm
- Minimum Overall Length: 13 in / 330 mm
- Maximum Overall Length: 19 in / 470 mm
- Ball Joint Diameter: 3/4 in
- Thread Size: 1-1/8 in
- Ends: Forged, bright-plated with lever-type locking device
- Center Body: One-piece with swedged ends, dichromate plated
Compatible Applications
Universal Fit: Fits any tractor equipped with a Category 1 (Fits CAT I) three-point hitch. Commonly used on compact and utility tractors from manufacturers including Fits Massey Ferguson, Fits Allis-Chalmers, Fits Ford, Fits New Holland, Fits John Deere, Fits Kubota, Fits Case, Fits Case IH, Fits International Harvester (IH), and others. Verify your hitch category before ordering.
Replaces Part Number(s):
JSA1009
Aftermarket Interchange Numbers
3013-1544, HIU10-0016, 873-470
New aftermarket replacement part - not remanufactured, not used.
