HH3116407 Inner Tie Rod, 2WD - Fits Case IH

HH3116407 Inner Tie Rod, 2WD - Fits Case IH

$43.00 CAD
$43.00 CAD
Sale Sold out
Shipping calculated at checkout.

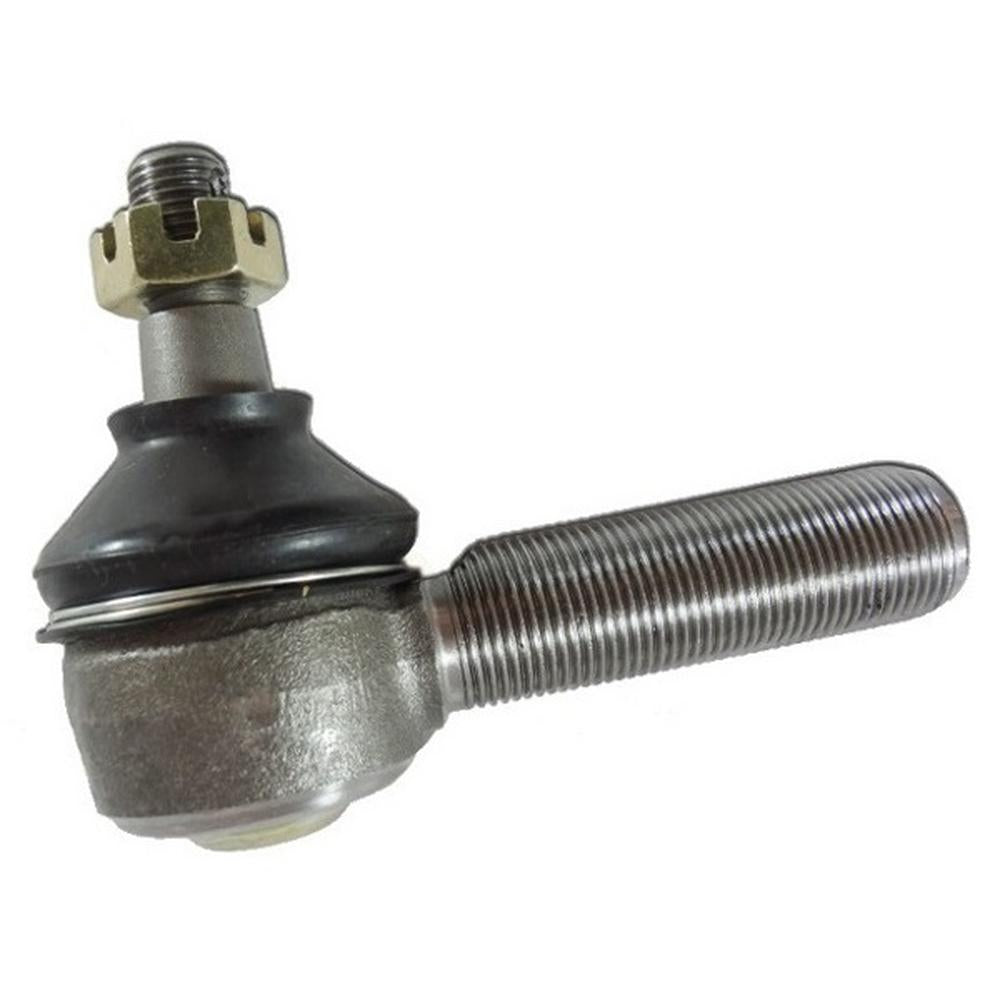

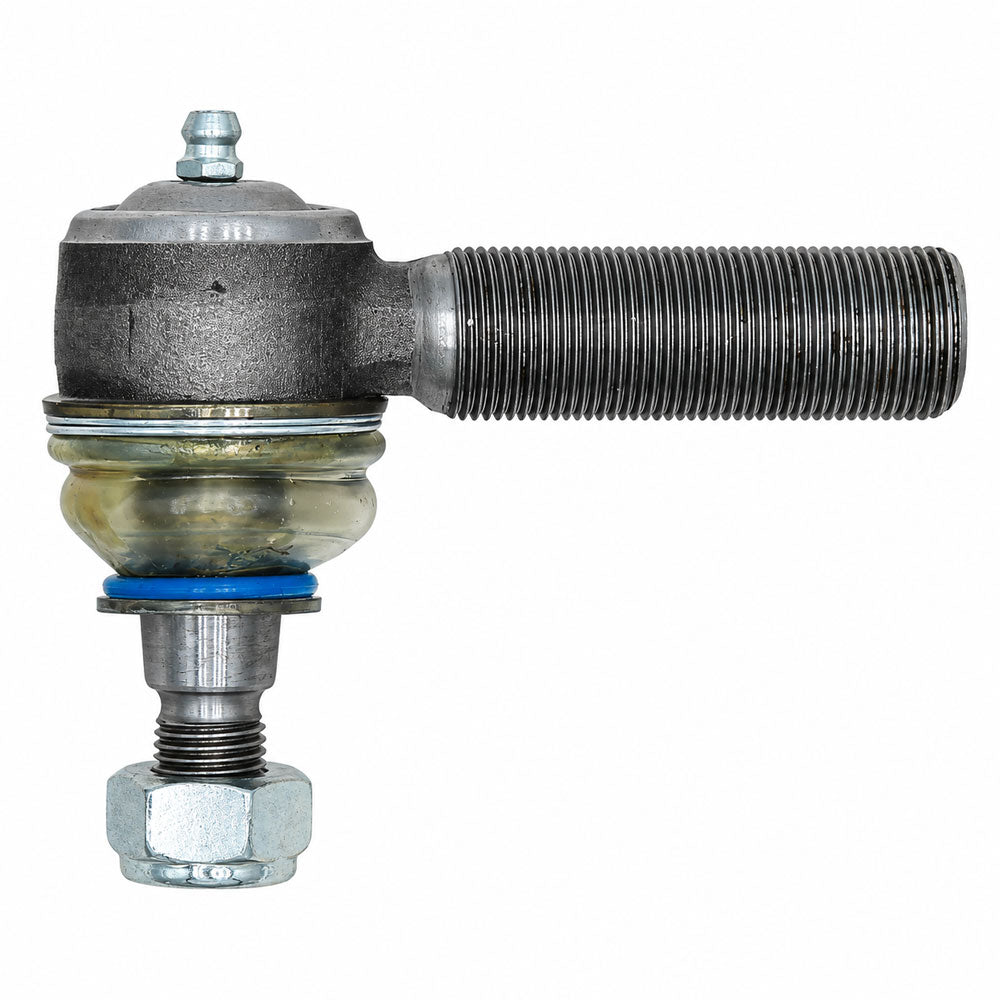

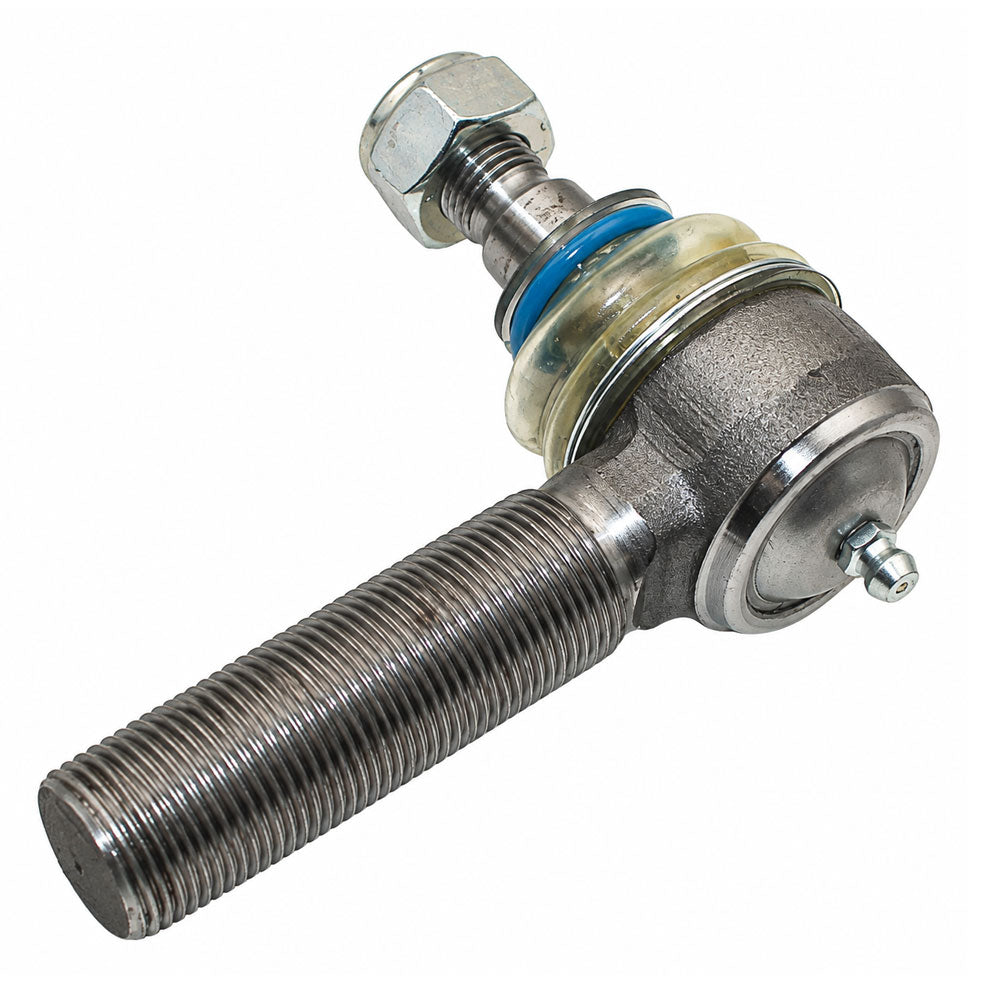

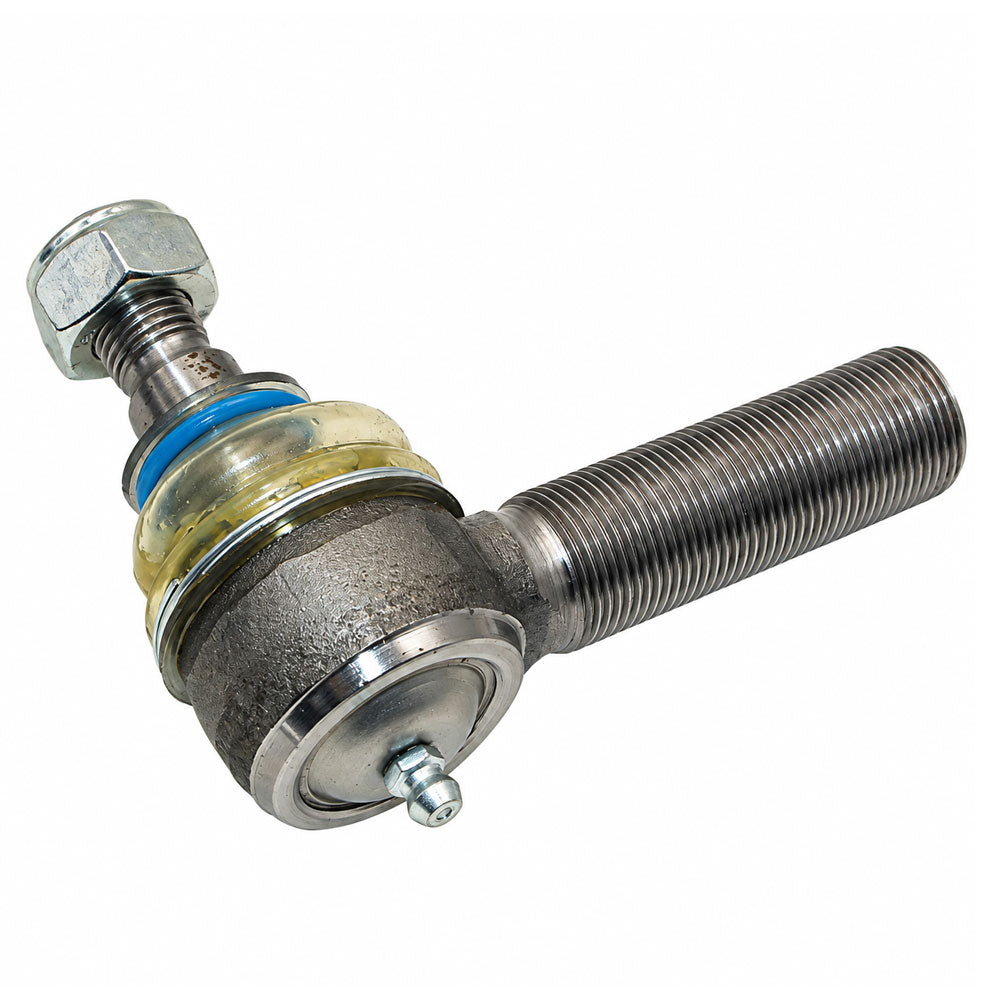

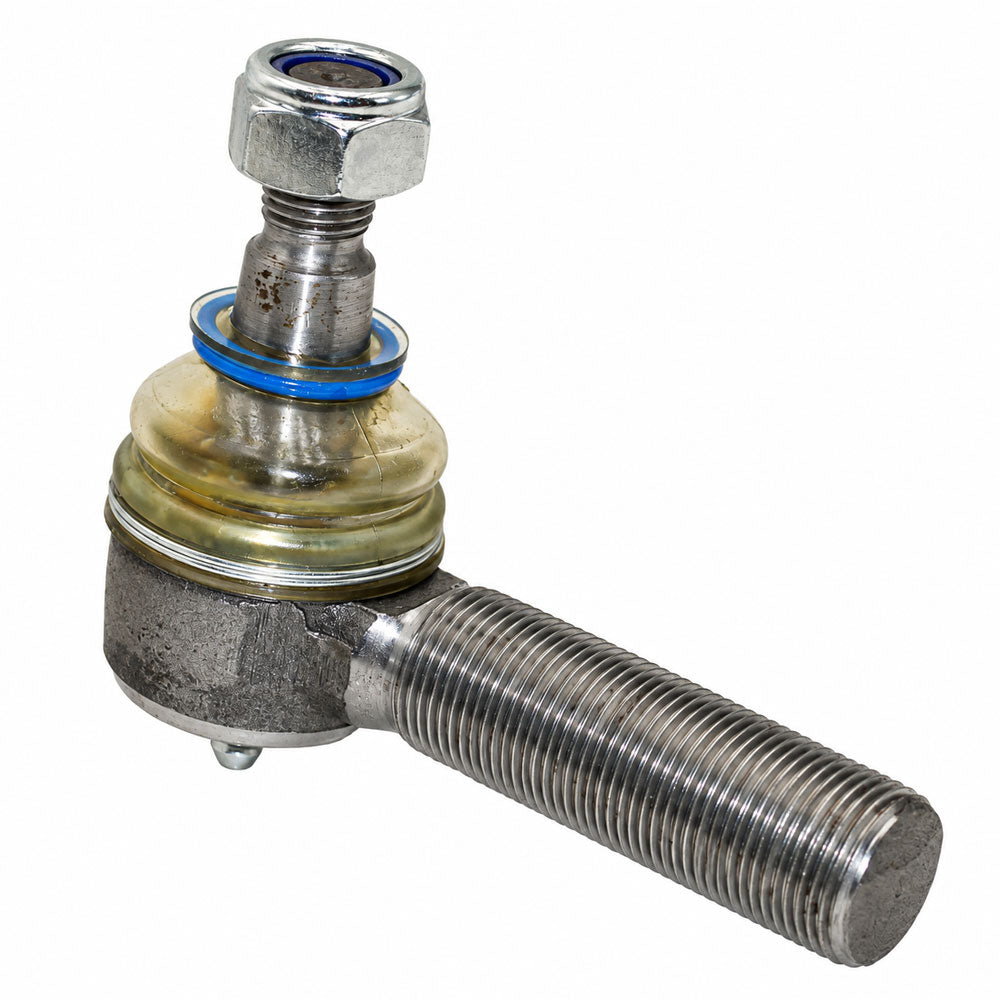

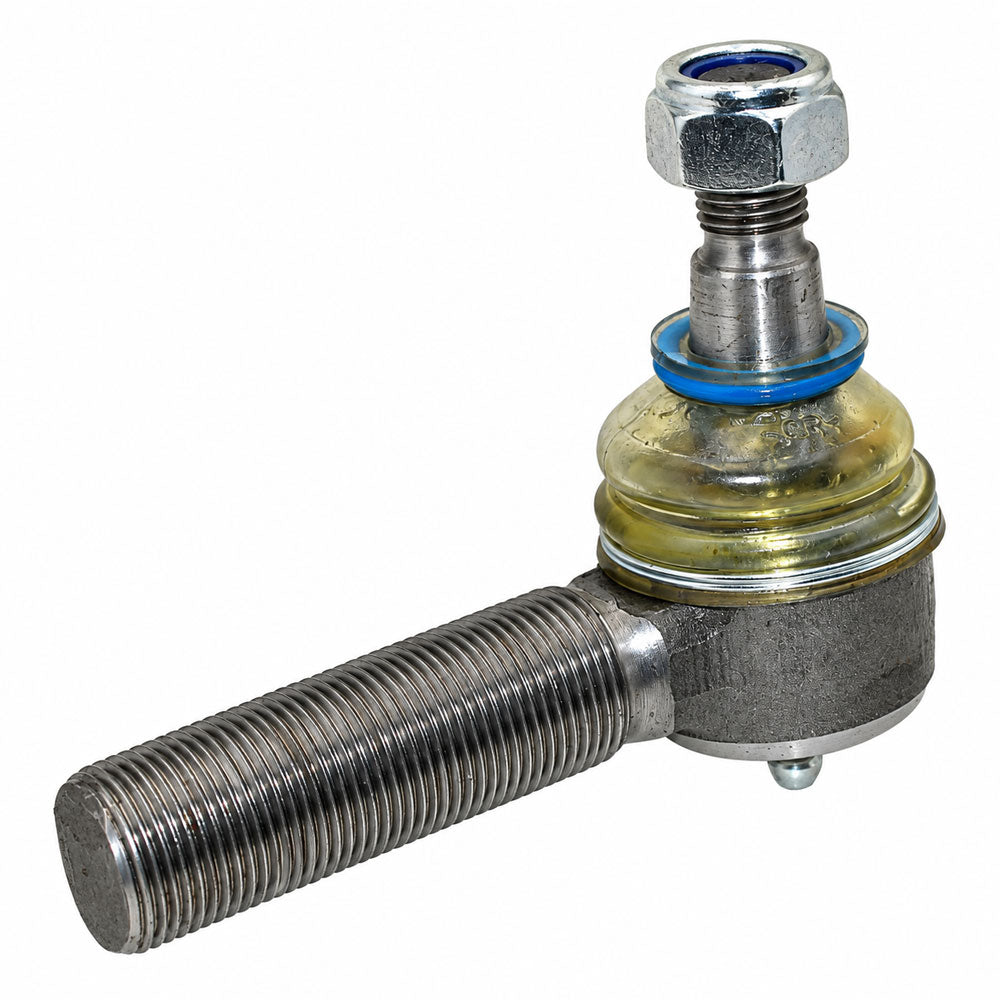

One New Aftermarket Inner Tie Rod, 2WD

Fits Case IH Models:
385 (w/ Adjustable Straight Front Axle), 395 (w/ Straight Front Axle), 485 (w/ Straight Front Axle, w/ Automotive Products or Armstrong Tie Rod Assembly, excludes HD utility models), 495 (w/ Straight Front Axle (excluding HD Cast Iron Axle)), 585 (IH & CIH models w/ Straight Front Axle, Includes HD Axle), 595 (w/ Swept Back Front Axle), 685 (IH Models 52"-77" Tread Width, CIH Models 52"-82" Tread Width. w/ Straight Front Axle.), 695 (w/ Swept Back Front Axle), 885 (IH Models 52"-77" Tread Width, CIH Models 52"-82" Tread Width, Includes Orchard, Grove & Row Crop Models. w/ Straight Front Axle.), 895 (w/ Straight Front Axle, 52"- 82" Tread Width), 995 (w/ Swept Back Front Axle (excludes Cast Iron version))

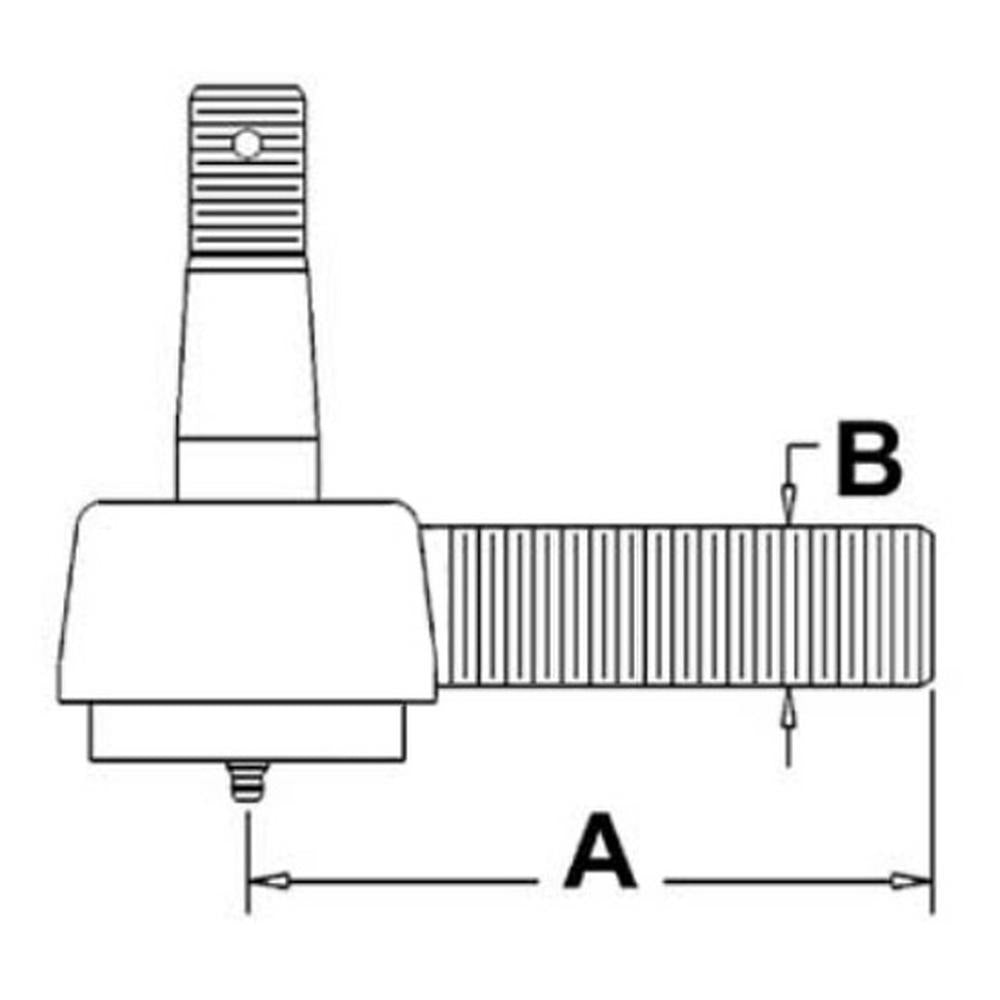

Tech Info:
- Length: 3.750"
- OD: 0.875"
- Quality: Aftermarket
- Sold As: Each
- Thread Size: 16 UN
- Thread Size: RH
- Ball joint end uses 9/16" nut

Replaces Part Numbers:
3116407R5, 3116407R4, 3116407R1, 3116407R3, 3116407R2

Models This Part Fits:

585, 485XL, 784, 785XL, 495, 495XL, 2500A, 485, 895, 795, 585XL, 995, 395, 695, 785, 595, 385, 685XL, 885, 795XL, 885XL, Hydro 84, 594, 684, 474, 595XL, 674, 2400A, 454, 695XL, 884, 484, 584, 574, 685, 396, 248, 895XL

Additional Information:

Tie Rod End, Inner .875 Inch- 16 Rh Thread 3-7/8 Inch to Center of Post

Reference Numbers:

3116407R1, 3116407R2, 3116407R3, 3116407R4, 3116407R5, 3116407R3, 3116407R5
