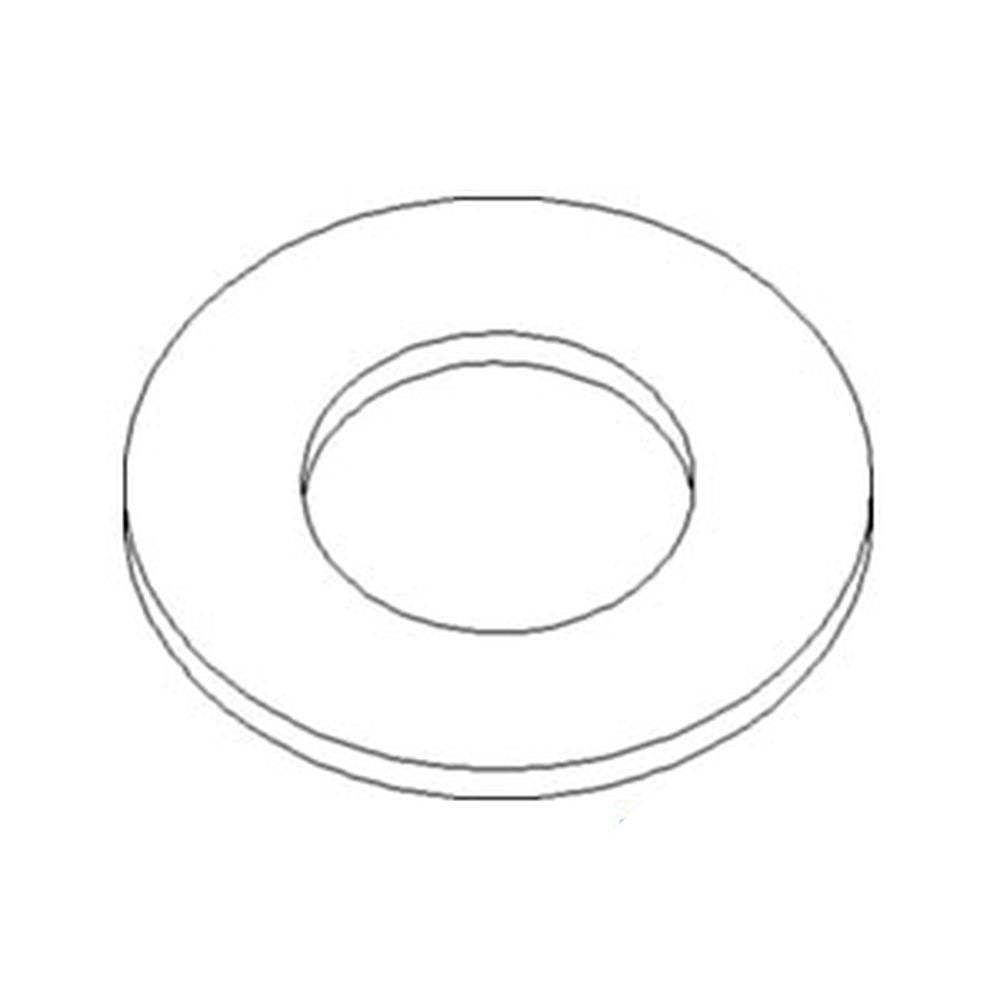

One New Aftermarket Replacement Drive Sprocket Washer Fits John Deere Headers
This aftermarket replacement drive sprocket washer Fits John Deere combine headers and is used at the drive sprocket position on the row unit gathering chain drive system. It is a precision-fit thrust-style washer designed to reduce friction, manage end play, and protect rotating components in the drive sprocket assembly during harvesting operations.
Specifications
- Inside Diameter: 46.50 mm (1.83 in)
- Outside Diameter: 90.50 mm (3-9/16 in)
- Thickness: 3.40 mm (0.13 in)
- Weight: approximately 0.27 lb
- Material: General steel with heat-treated and plated finish
Compatible Models
Fits John Deere Headers (s/n 665400 and earlier): 592, 693, 694, 893, 894, 1092, 1290, 1291, 1293
Note: Serial number restriction applies - fits units with serial number 665400 and earlier. Verify serial number before ordering.
Replaces Part Number(s):
H99303, A-H99303, A-H99303-AI, N102042
New aftermarket replacement part - not remanufactured, not used.
