H4 Magneto Kit w/ Coil Fits FARMALL Super A, Super C Tractor

Models This Part Fits:

T6, OS6, T5, Super MV, OS4, O4, Super MVTA, 600, AV, Super HV, Super C, 400, ODS6, Regular, Super W6, Super MD, Super A-1, Super WD6, WD6, Super WD9, MV, W450, Super MDTA, 15-30, Super AV-1, M, W40, 22-36, 300, ID9, Super MDV, W6TA, Super M, BN, W12, W14, W9, F14, W400, Super MDV-TA, Super MTA, F12, C, WR9, 10-20, 230, I4, 650, H, B, HV, O12, T20, Super W6TA, O6, 100, 200, WD9, 450, Super A, 350, A, Super WDR9, F20, MDV, Super H, W4, Super W9, WDR9, 130, W6, Super W4, MD, TD6, I9

Additional Information:

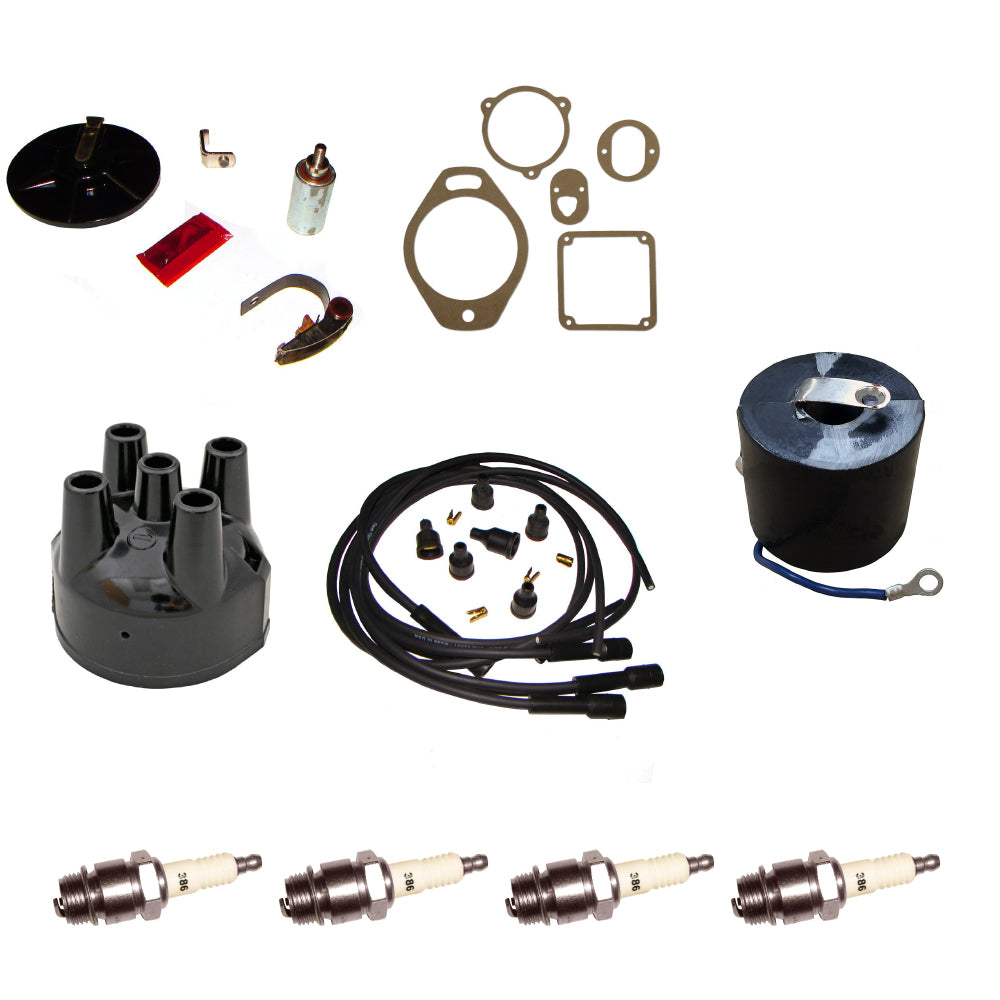

Kit Contains: (1) Ignition Kit Contains Points, Condensers & Rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Magneto Coil Cover Replaces Part Number(s): 47449DAX, 47449DAY (1) Distributor Cap Services H-4 Magneto, Clip Style Replaces Part Number(s): 407017R91, 407017R92 (1) Gasket Set includes: Coil Cover Gasket Distributor Body Gasket Distributor Gear Cover Gasket Condenser Hole Cover Gasket Magneto Mounting Gasket Replaces Part Number(s): 359966R1, 47408D, 47453D, 48472DA, 49419D, 55780DD, 55780DE, E4226 (1) Spark Plug Wiring Set (4 Cyl.) 4 Cylinder (Non-tailored Straight Boot) (1) Magneto Coil Replaces Part Number(s): 21401D, 21401DAX, 361114R91, 47439D, 47439DA, 47439DAX, 57926DX, RW104

Reference Numbers:

21401D, 21401DAX, 361114R91, 47439D, 47439DA, 47439DAX, 57926DX, RW104

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Ignition Components
View More: Ignition Components Replacement Parts
