GY20454 GY21098 Spindle Assembly Fits John Deere 42 46 48 54 in Mower Deck
GY20454 GY21098 Spindle Assembly Fits John Deere 42 46 48 54 in Mower Deck
Couldn't load pickup availability
What This Is

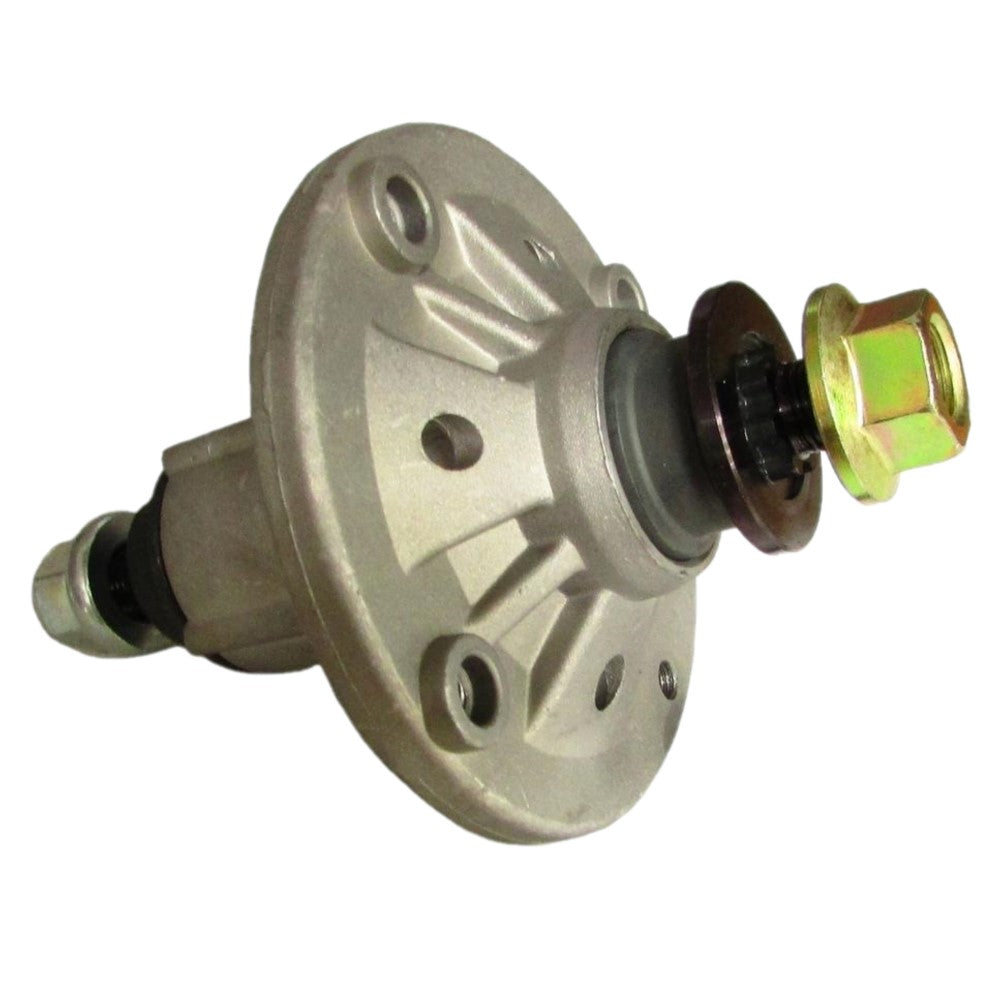

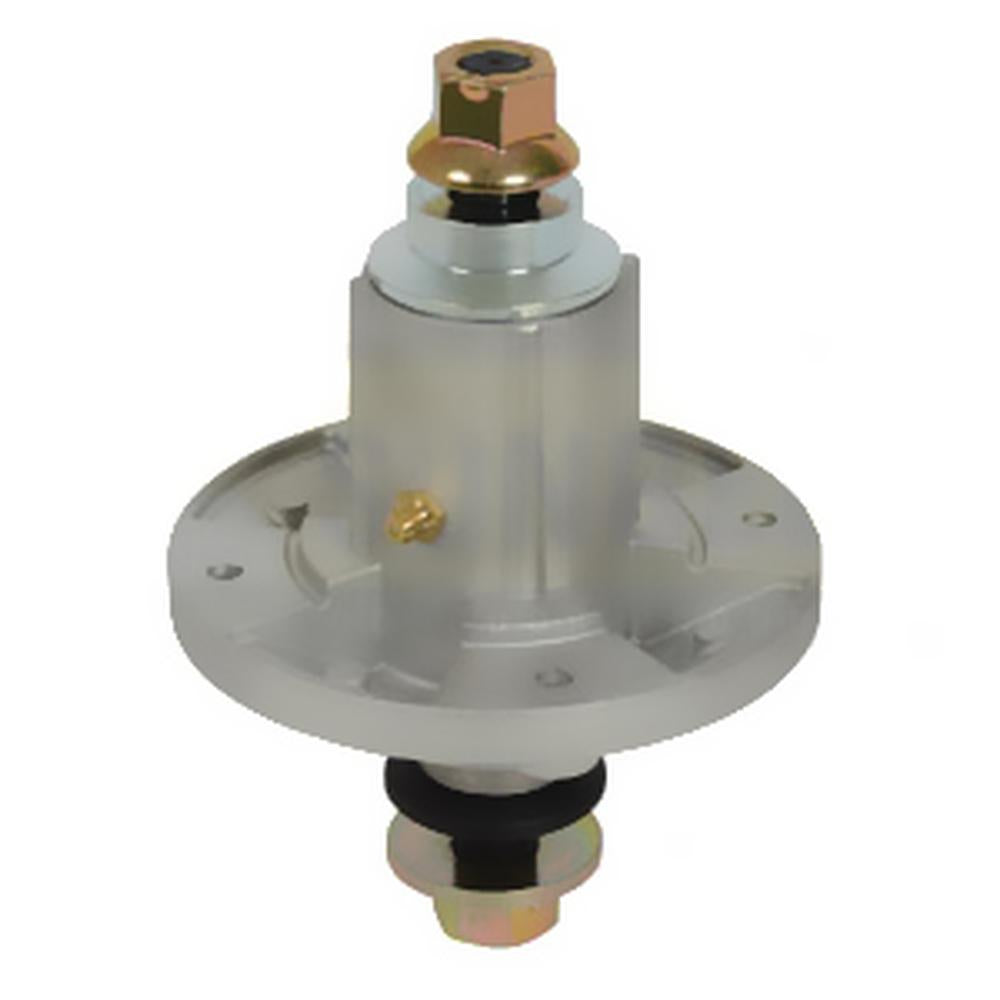

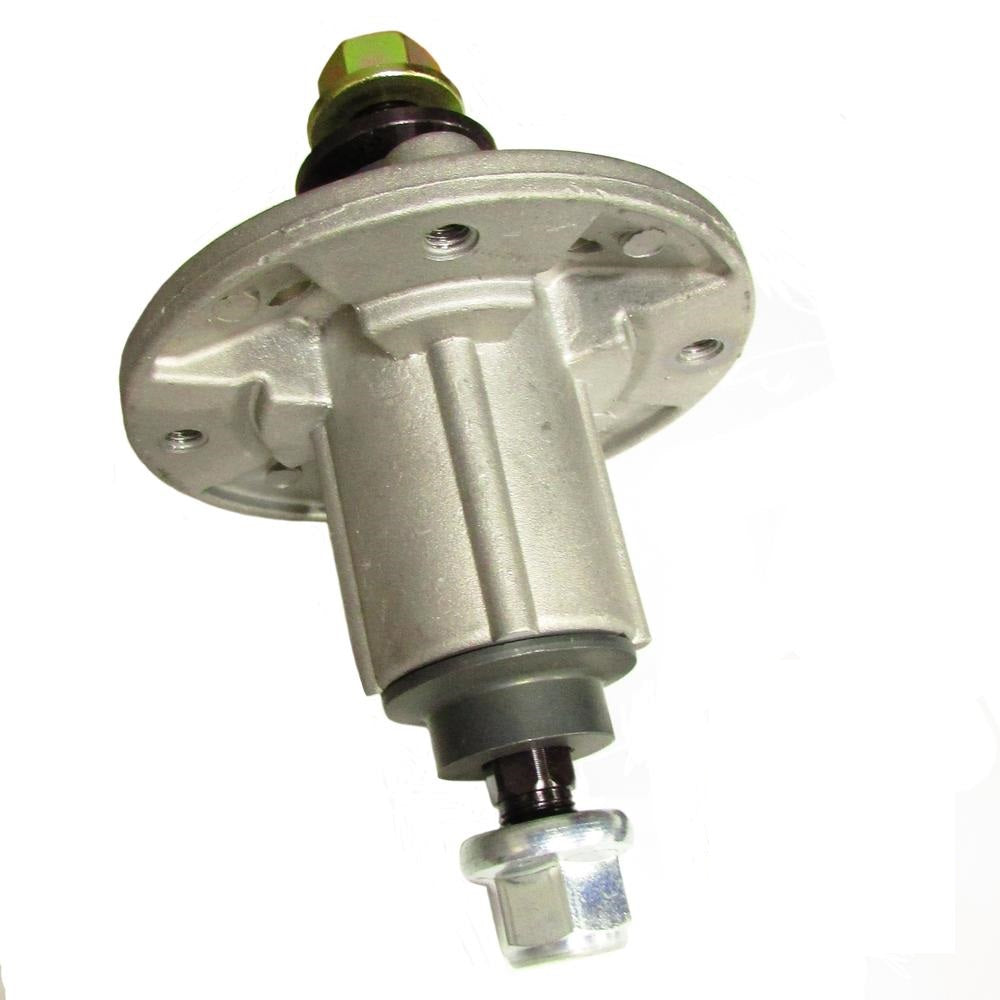

This is a complete John Deere mower deck spindle assembly, built and ready to bolt in. It replaces original equipment part GY20454 and its later factory supersessions, GY20962 and GY21098, along with the interchangeable GY20867. The spindle carries the blade and pulley and rides on sealed bearings inside a cast housing, so a worn, noisy, or seized spindle is a common reason a deck vibrates, scalps, or stops cutting cleanly. This listing is for one spindle.
What Is Included

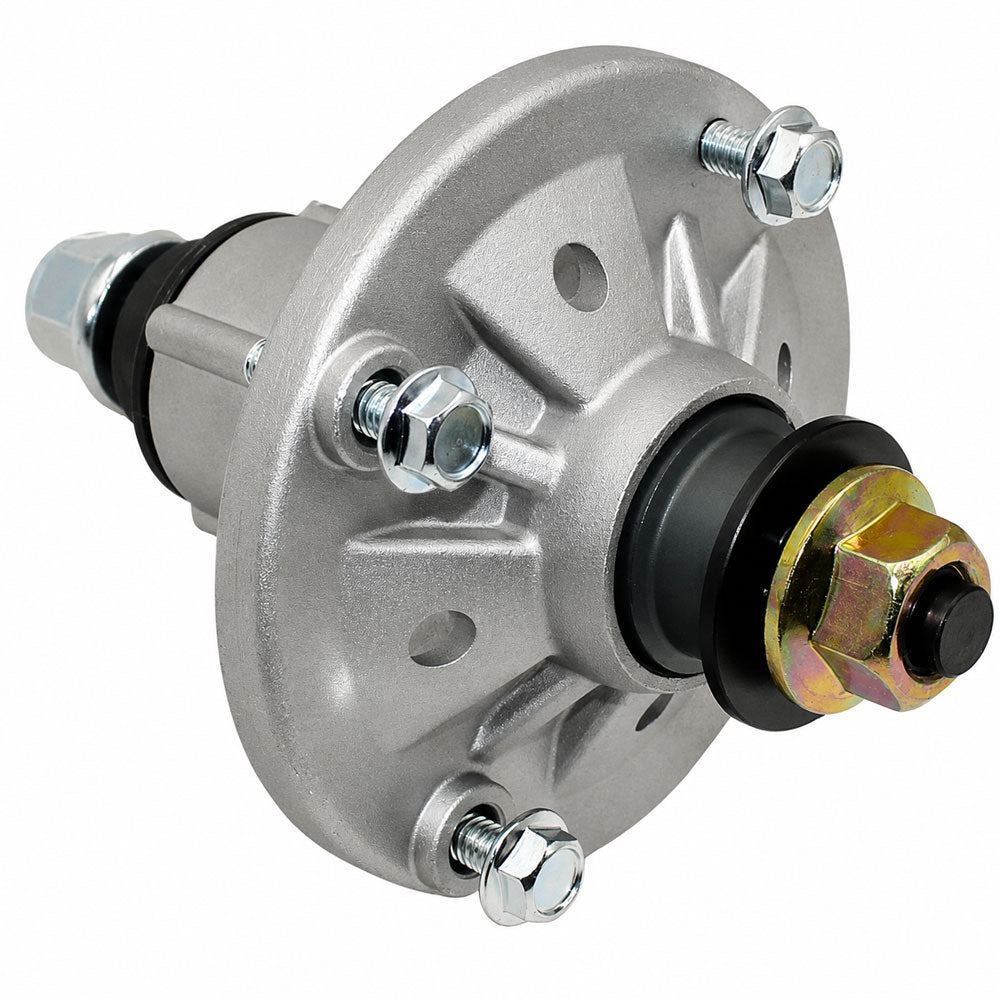

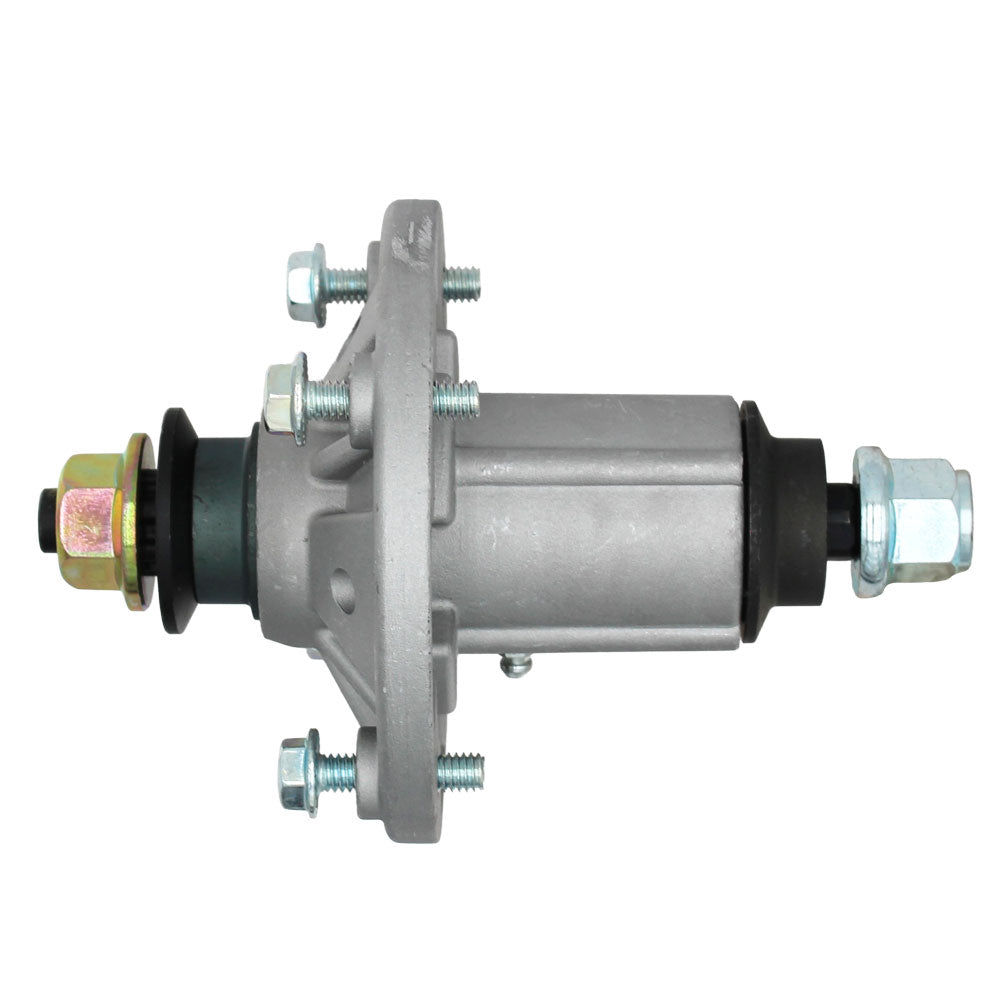

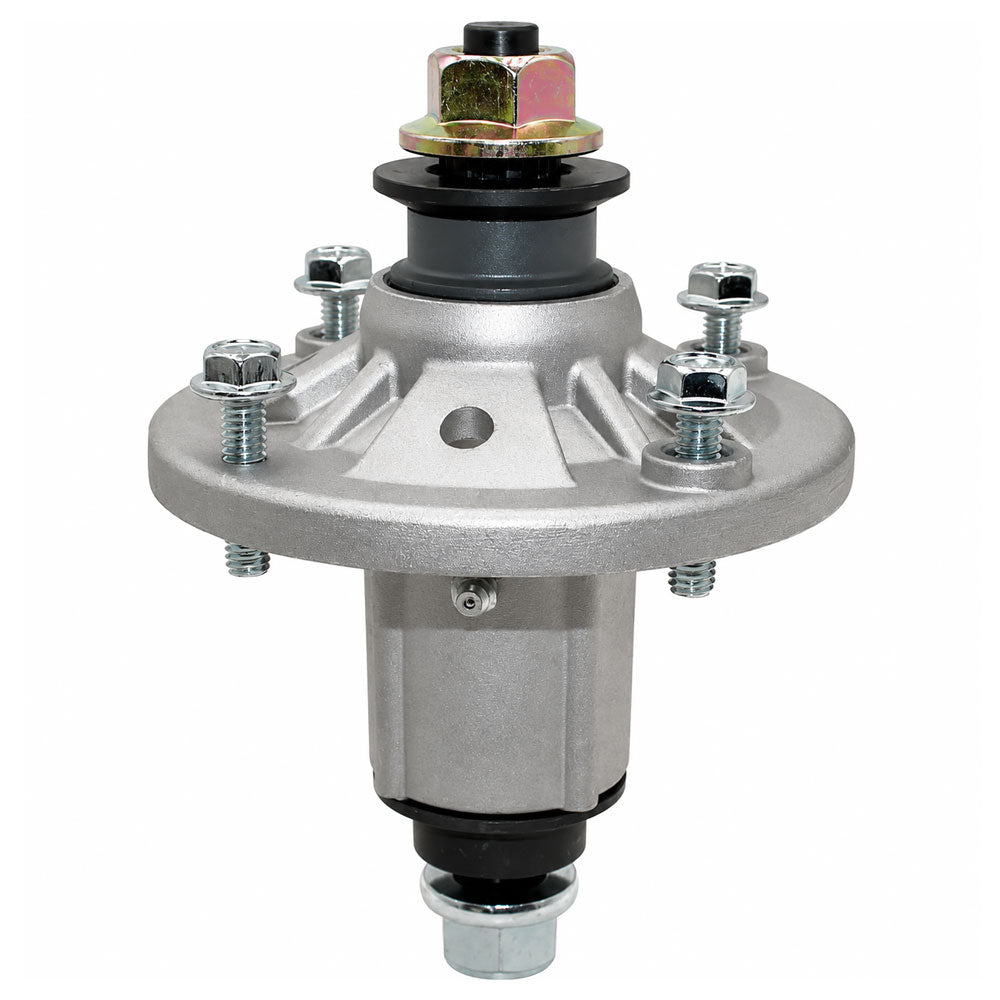

The assembly ships as a housing with the shaft and sealed bearings already installed, plus the mounting bolts and seals needed to put it back on the deck. The pulley, the cutting blade, and the blade bolt are not included; you reuse those from your original spindle. Some production runs ship without the top shaft nut, so keep your old nut on hand. Because the unit comes assembled, installation is a straight swap with hand tools.
Fitment
This spindle fits John Deere lawn tractors and riding mowers built on AYP-style 42, 46, 48, and 54 inch decks. Covered families include the 100-series (D100 through D170), the E100 through E170 series, the S100 through S170 series, the LA100 through LA175 series, and the X105 through X167 series, plus older models such as the 102, 105, 115, 125, 135, 145, 155C, and 190C. The same spindle was used across a wide range of these decks, so confirm the fit by your deck size and your model and serial number before ordering. Verify fitment before purchase, since deck and spindle designs changed over the production run.
Specifications
The spindle uses a 7-point star shaft that mates to the deck pulley, and the overall assembly stands about 7-3/16 inch tall. It is built with sealed ball bearings for long service life and is made to meet or exceed the original equipment specification. The housing bolt pattern matches the John Deere deck so the unit lines up without drilling or spacers.
Cross-Reference
This spindle cross-references John Deere GY20454, GY20867, GY20962, GY21098, and AUC15811. Common aftermarket equivalents include Oregon and Rotary 82-359, Stens 285-851, Rotary 11964 and 12910, and Laser 97762. If your old spindle or deck parts list shows any of these numbers, this is the correct assembly.
Ordering Guidance
This listing is for one spindle. On John Deere decks, a 42 inch deck typically uses two spindles while 48 and 54 inch decks use three, so order the quantity your deck requires and consider replacing all spindles at once for even cut quality. Before installing, clean the deck mounting surface, keep your original pulley and blade hardware, and torque the blade bolt to the deck manual's specification.
