GX21994 M153513 Steering Gear Hardware Kit Fits John Deere LA100 LA105 LA110 LA1

Models This Part Fits:

Several

Additional Information:

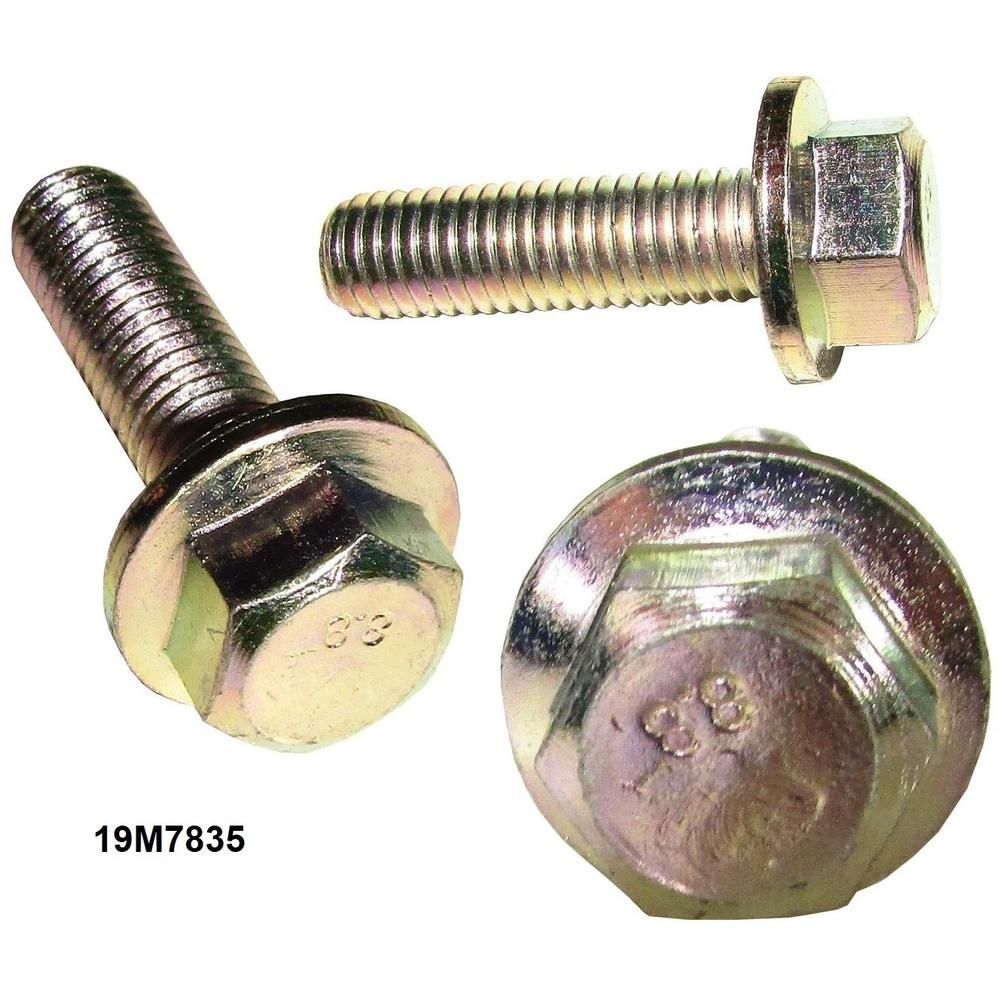

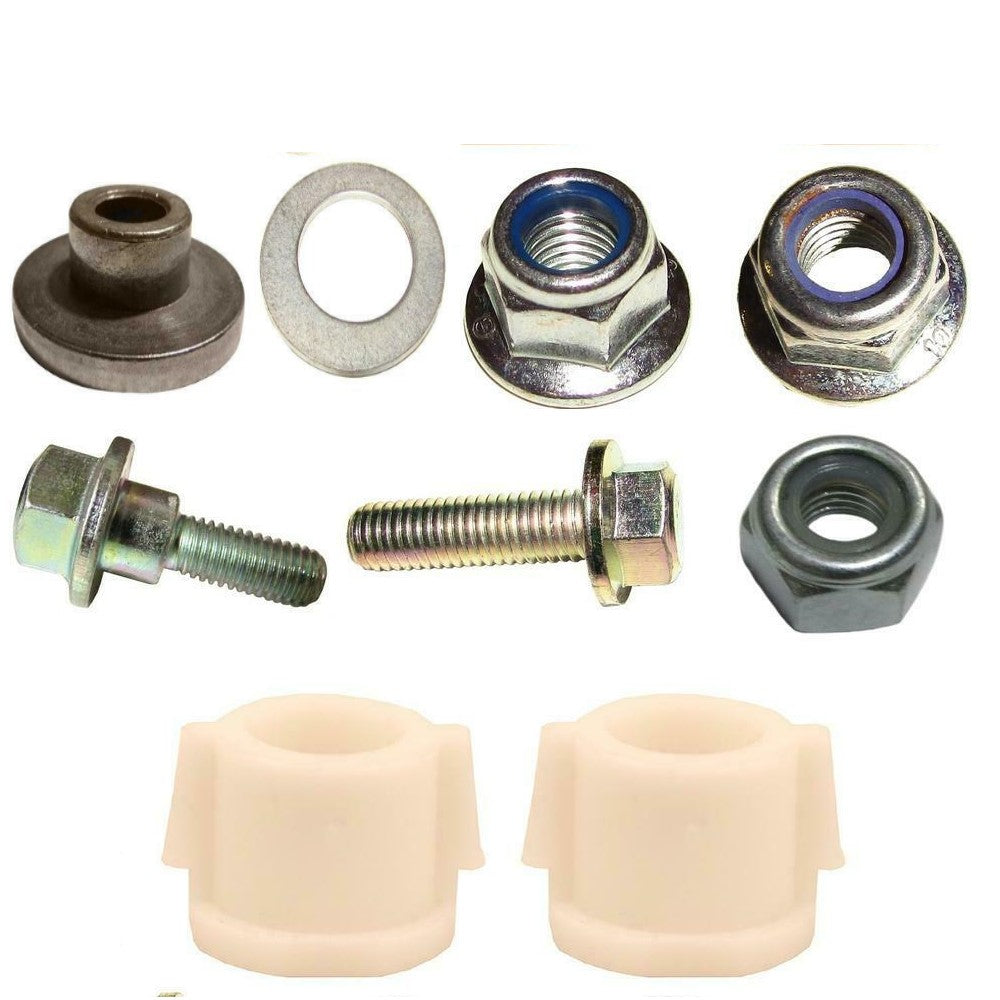

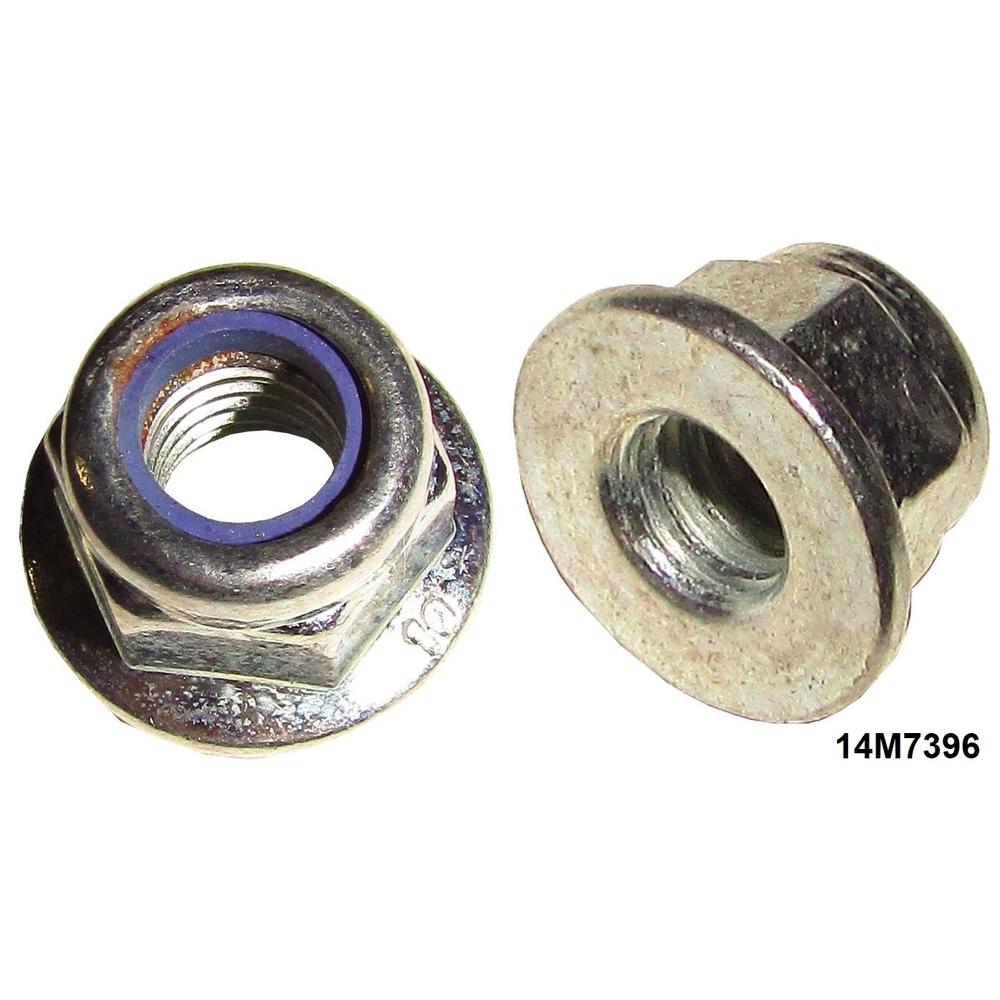

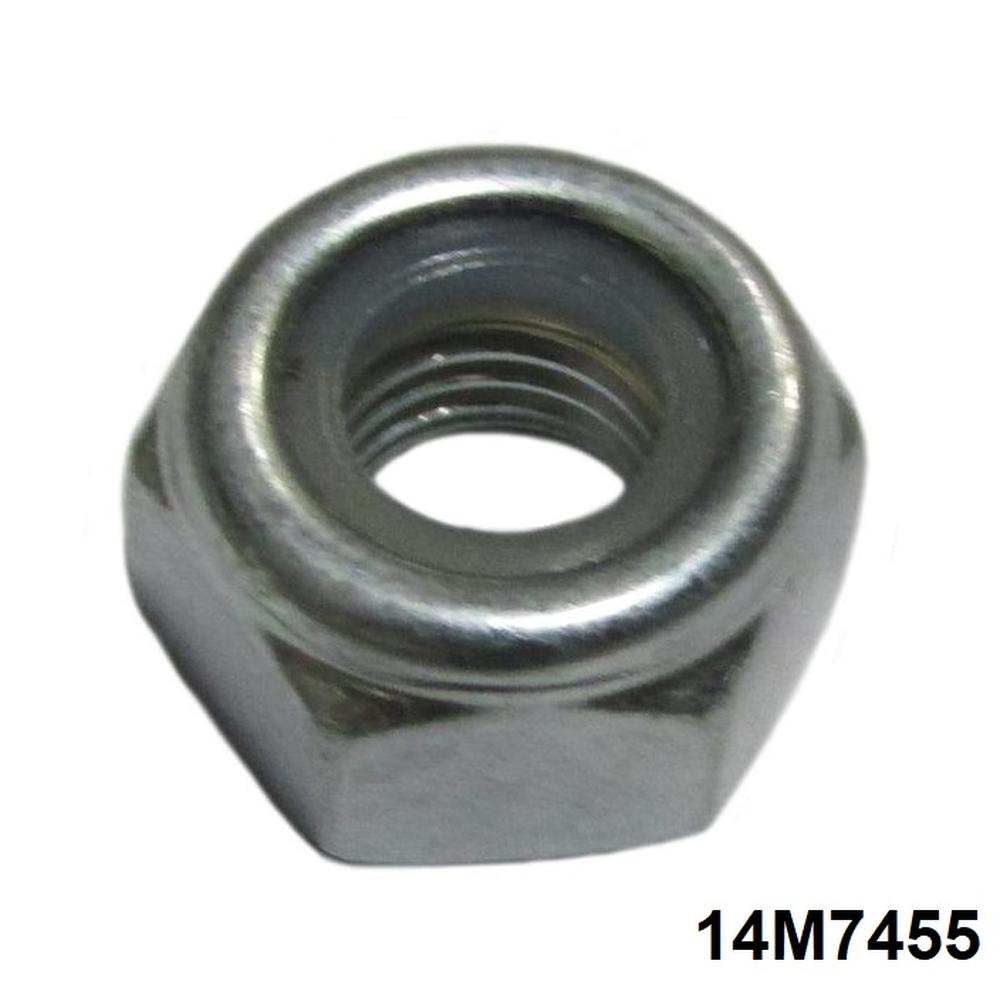

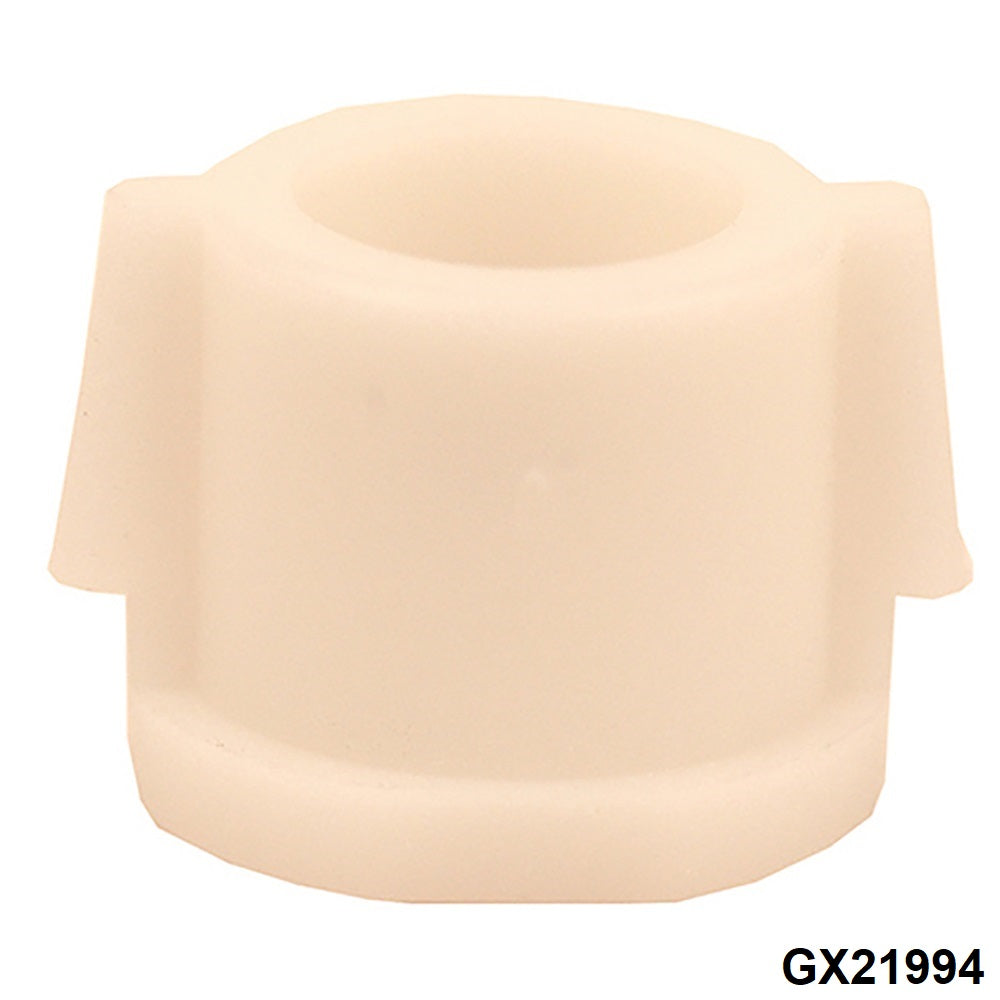

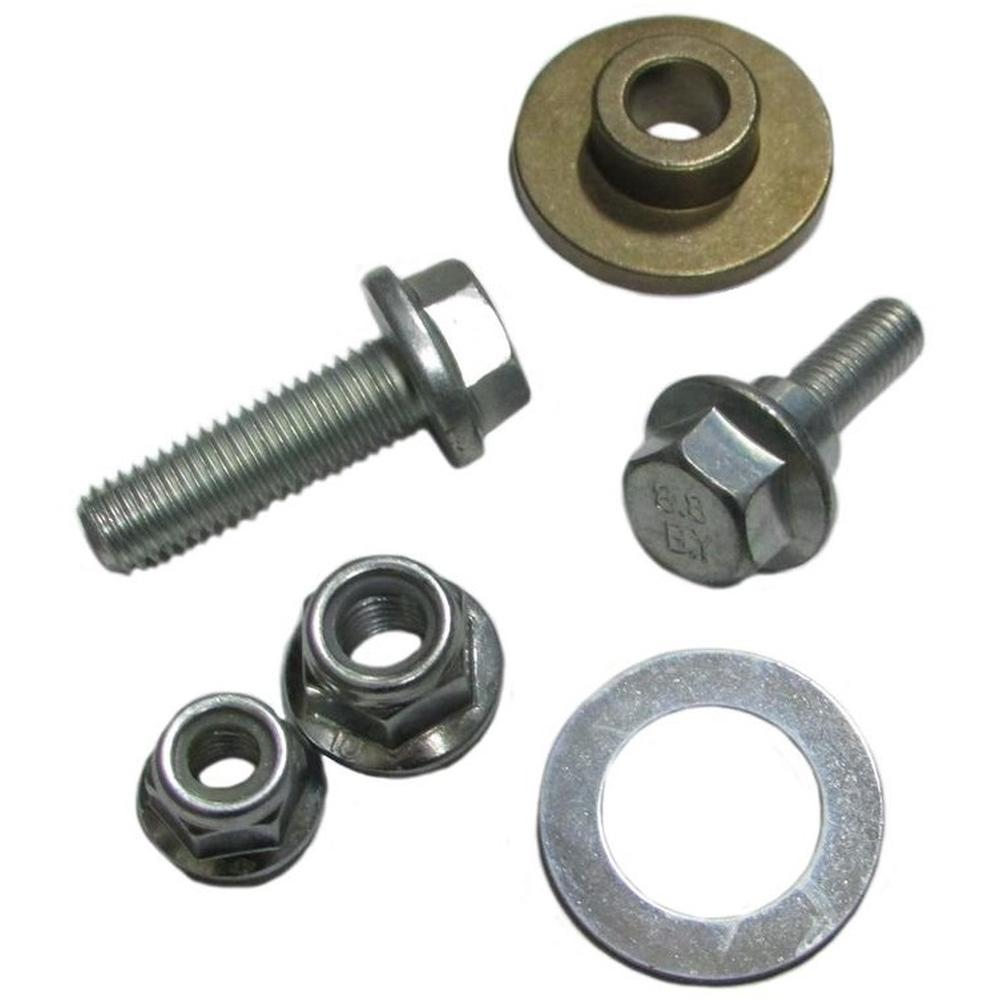

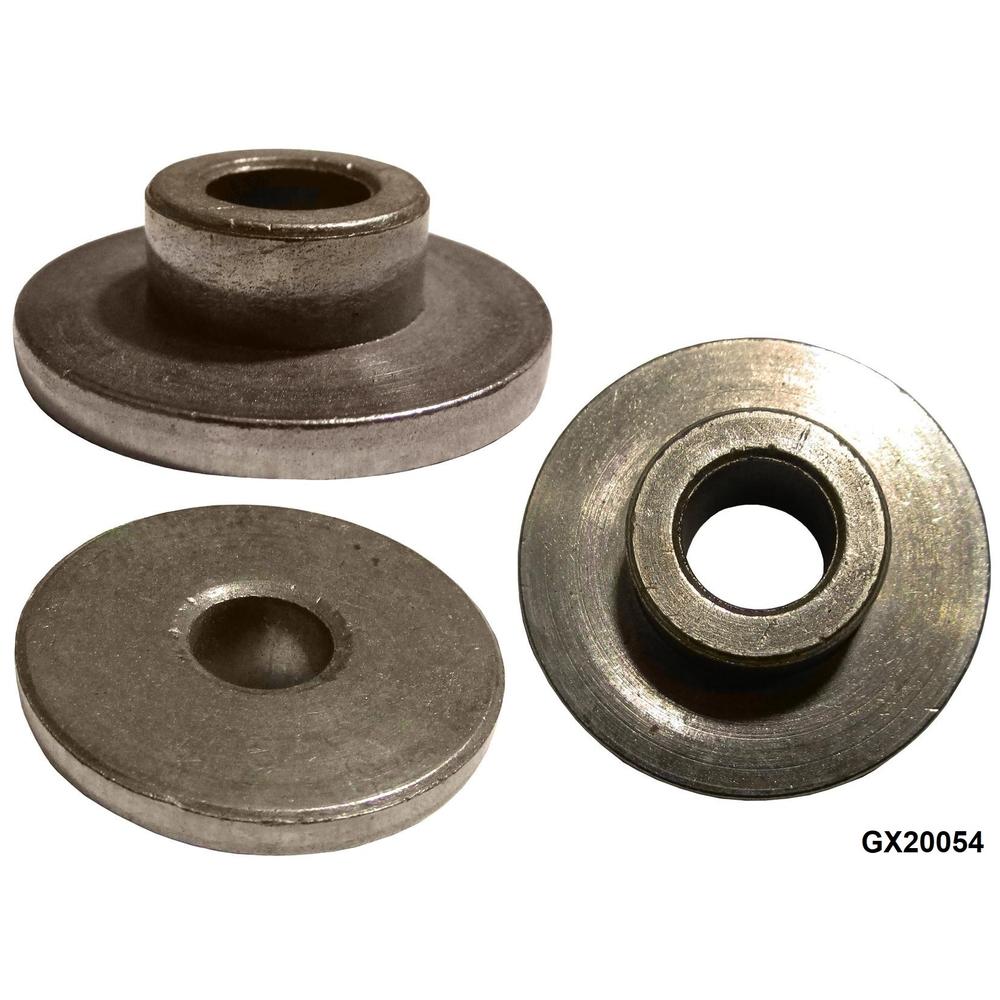

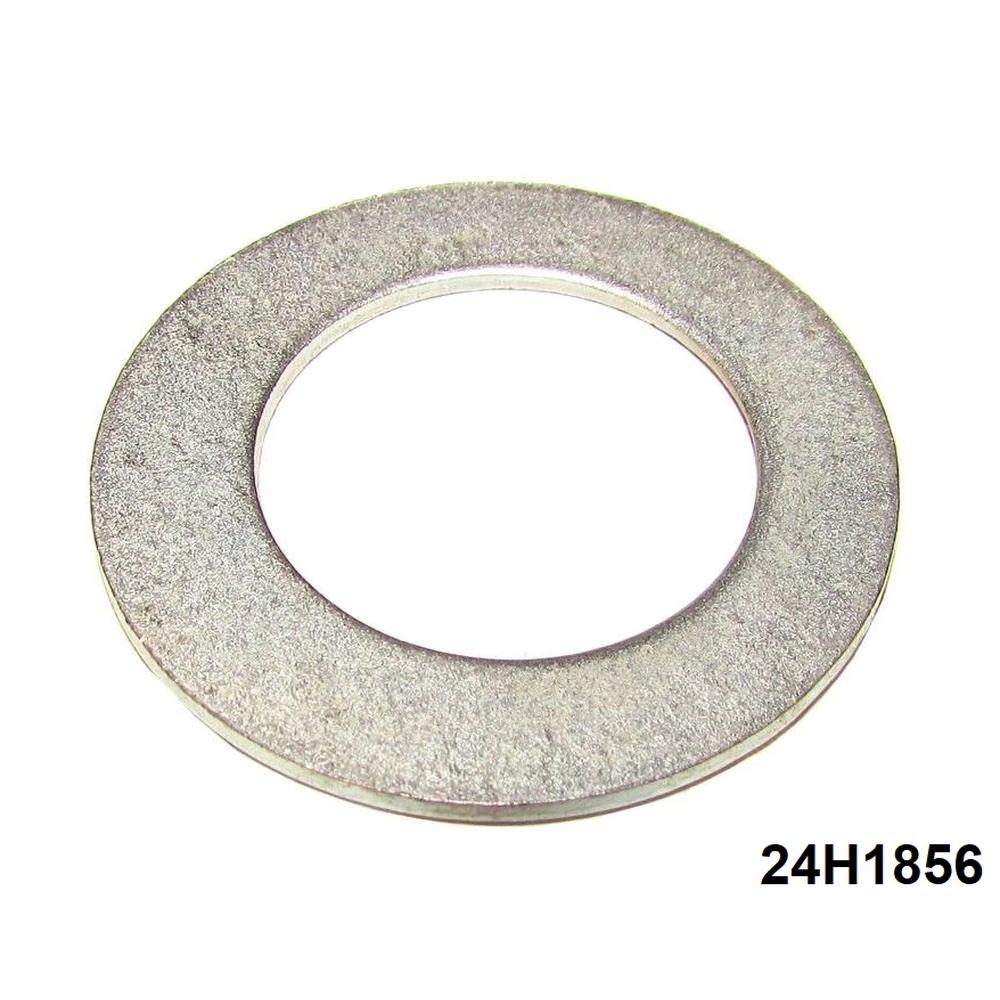

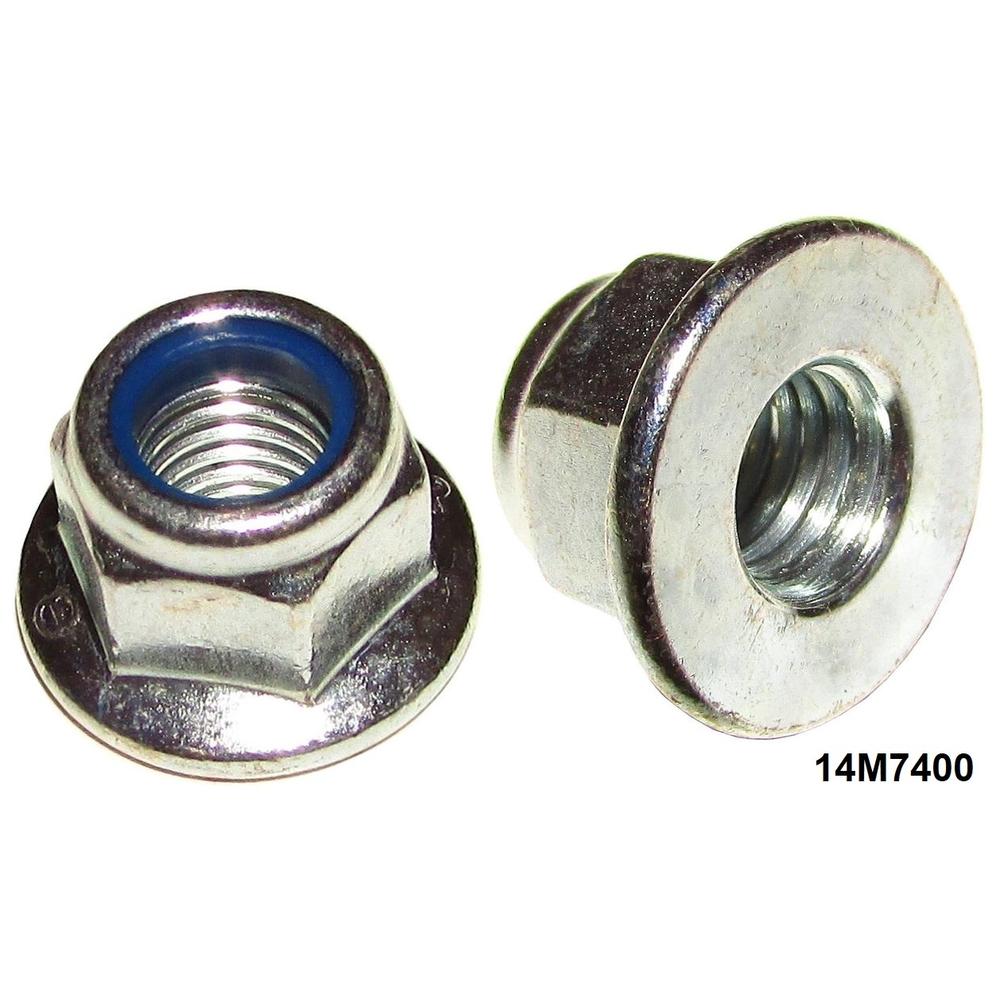

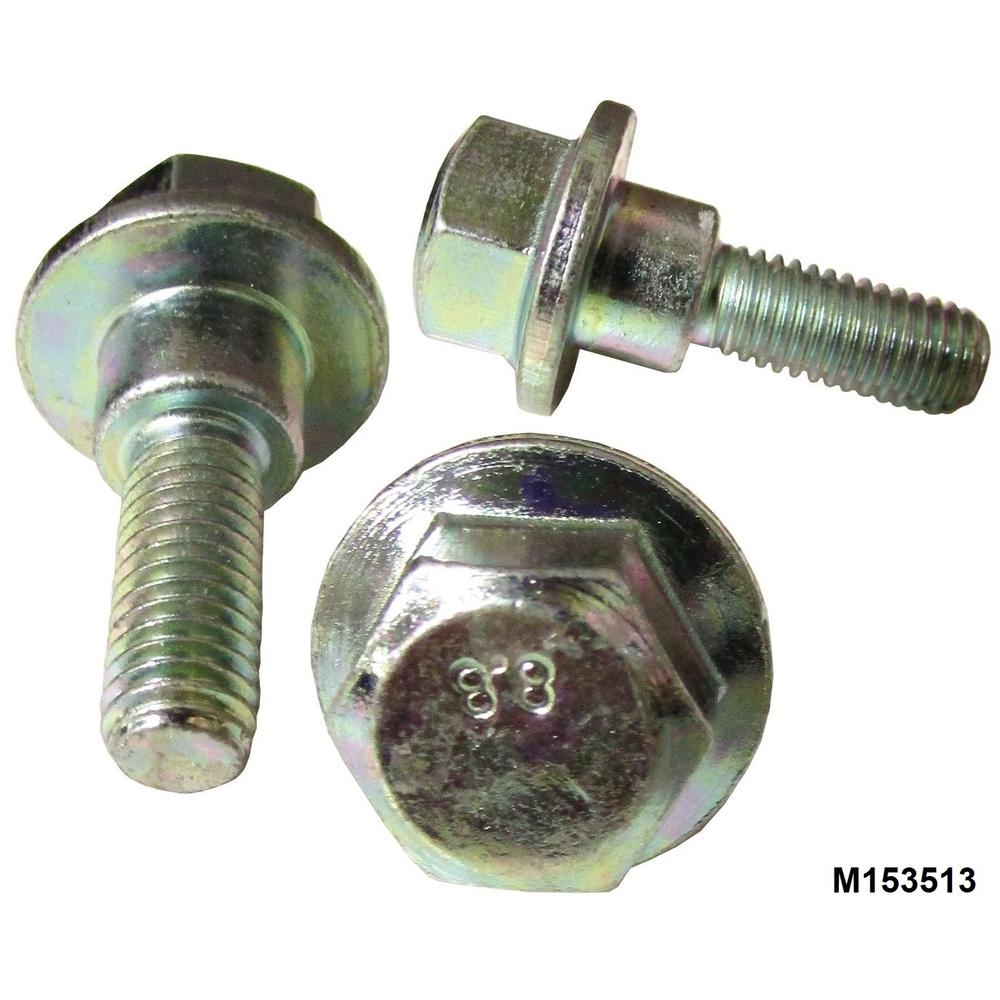

Hardware Kit to mount the Steering Sector Gear Kit Contains: (1) Sector Pivot Bushing Flange Thickness: 0.16" Flange Outside Diameter: 1.382" Inside Diameter: 0.407" Length: 0.45" Outside Diameter: 0.710" Replaces Part Number(s): UC13360 (1) Hex Flange Bolt Thread Size: 0.394" Thread Pitch: 0.059" Length: 1.378" Thread Length: 1.201" Flange Diameter: 0.878" Head Height: 0.409" Material or Grade: 10.9 Drive Size: 0.591" Replaces Part Number(s): 19M7835 (1) Flat Washer I.D.: .781" O.D.: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing Flange Outside Diameter: 1.09" Height: 0.886" Inside Diameter: 0.632" Outside Diameter: 0.928" Replaces Part Number(s): GX21994 (1) Shoulder Bolt Threads: 8mm Overall length: 28mm Replaces Part Number(s): M153513 (1) Lock Nut Thread Size: 10mm Thread Pitch: 1.5mm Thickness: 13.5mm Width Across Flats: 15mm Flange Diameter: 21.8mm Wrenching Height: 5.6mm Locking Element Type: B Replaces Part Number(s): 14M7400 (1) Lock Nut Thread Size: 8mm Flange Diameter: 17.9mm Wrenching Height: 4.6mm Thickness: 11.10mm Locking Element Type: B Replaces Part Number(s): 14M7396 (1) Lock Nut Thread Size: 10mm Thread Pitch: 1.25mm Thickness: 10mm Width Across Flats: 17mm Wrenching Height: 7mm Locking Element Type: B Replaces Part Number(s): 14M7455

Reference Numbers:

14M7455, 14M7396, 14M7400, M153513, GX21994, 24M7053, 19M7835, UC13360

Product Sub Group:

Other Steering Components
